1985 Yamaha IT200 Crankcase Cover OEM Parts Diagram

Submodel IT200N - 1985

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE COVER

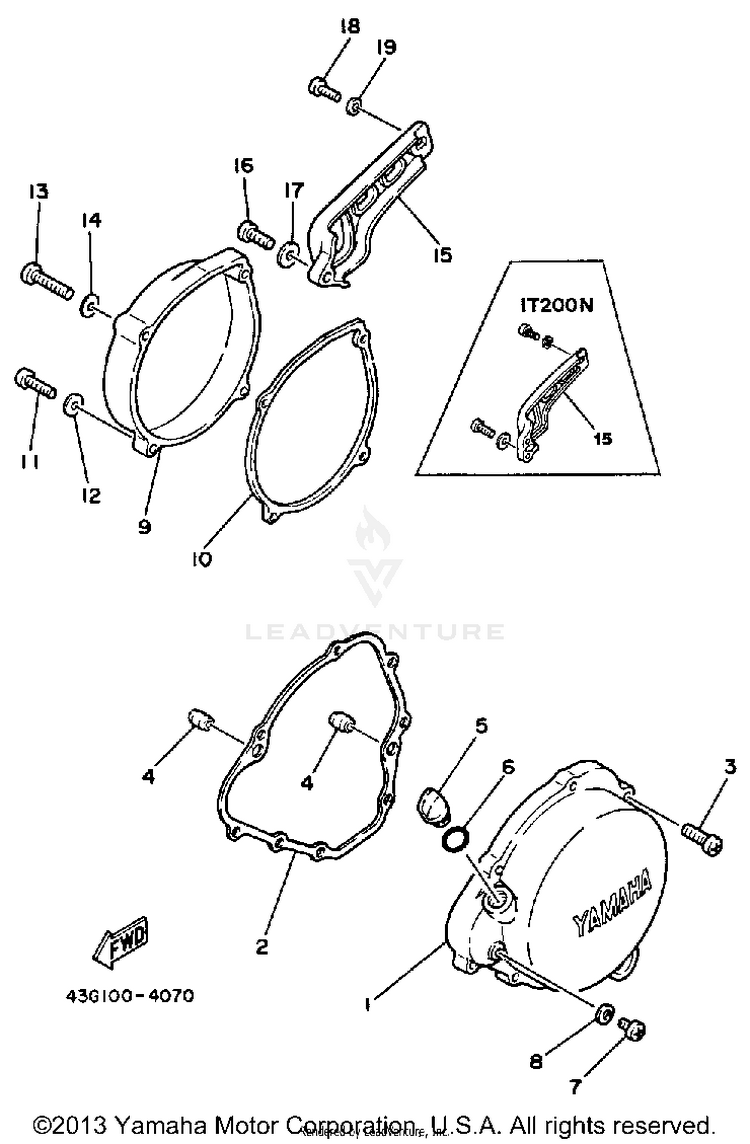

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13R3-15411-01-00COVER, CRANKCASE L$156.99$122.45Not Shipping
23R3-15451-02-00

(replaces part #
3R3-15451-01-00)

GASKET,CRCS COVER$46.99$36.6510+ In-Stock
398517-06025-00

(replaces part #
98506-06025-00)

SCREW, PAN HEAD$4.05$3.4810+ In-Stock
499530-10114-00

(replaces part #
99530-10014-00)

PIN, DOWEL$2.65$2.4810+ In-Stock
51G8-15362-00-00PLUG, OIL LEVEL$17.49$13.64Not Shipping
693210-14579-00

(replaces part #
93210-14104-00)

O-RING$7.99$6.238 In-Stock
798517-06008-00

(replaces part #
98506-06008-00)

SCREW$9.49$7.404 In-Stock
890430-06016-00GASKET$9.49$7.406 In-Stock
943G-15421-00-00COVER, CRANKCASE R$48.99$40.17Not Shipping
1043G-15455-10-00

(replaces part #
43G-15455-00-00)

GASKET 1$8.99$8.09Not Shipping
1198517-06025-00

(replaces part #
98506-06025-00)

SCREW, PAN HEAD$4.05$3.4810+ In-Stock
1292907-06600-00

(replaces part #
92906-06600-00)

WASHER, PLATE$1.00$0.9910+ In-Stock
1398507-06035-00

(replaces part #
98506-06035-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
1492907-06600-00

(replaces part #
92906-06600-00)

WASHER, PLATE$1.00$0.9910+ In-Stock
1555Y-15431-00-00COVER, CRANKCASE 3$20.99$17.21Not Shipping
1698507-06014-00

(replaces part #
98503-06014-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
1790201-06380-00

(replaces part #
90201-06067-00)

WASHER, PLATE-$0.7110+ In-Stock
1898580-06020-00SCREW, PAN HEAD$9.49$7.405 In-Stock
1992990-06200-00WASHER, PLAIN-$1.2810+ In-Stock

Get additional RM Cash on OEM purchases!

Select parts to add, then click
