1985 Yamaha IT200 Fender OEM Parts Diagram

Submodel IT200N - 1985

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FENDER

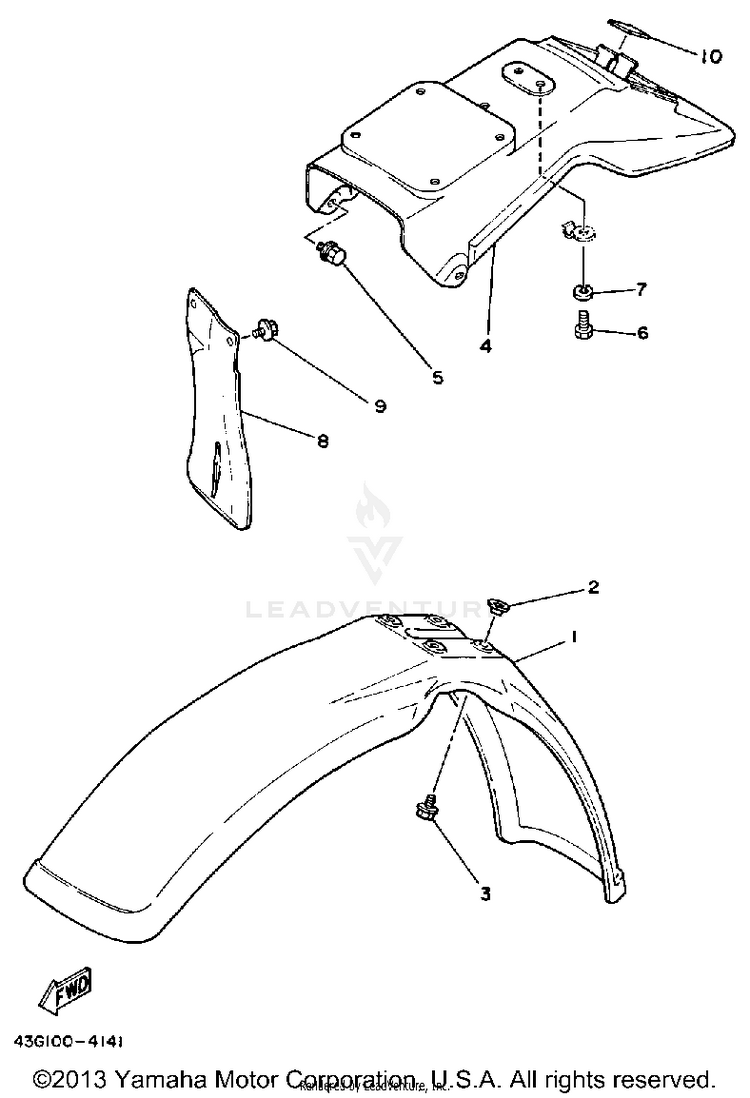

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13R9-21511-11-00FENDER, FRONT | SKY BLUE$46.99$45.656 In-Stock
290387-06681-00COLLAR$10.49$8.1810+ In-Stock
390119-06063-00BOLT, WITH WASHER$10.49$8.1810+ In-Stock
443G-21610-00-00FENDER, REAR$39.24$32.18Not Shipping
590119-06152-00

(replaces part #
90119-06056-00)

BOLT, WITH WASHER$3.55$3.0510+ In-Stock
697D95-06016-00

(replaces part #
97313-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
792995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
843G-21642-00-00GUARD, FLAP$51.99$40.55Not Shipping
990119-06117-00

(replaces part #
90119-06042-00)

BOLT, WITH WASHER$5.49$4.284 In-Stock
1022F-2139X-00-00

(replaces part #
2H7-21628-00-00)

DAMPER$8.49$6.6210+ In-Stock
