1985 Yamaha IT200 Front Wheel OEM Parts Diagram

Submodel IT200N - 1985

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT WHEEL

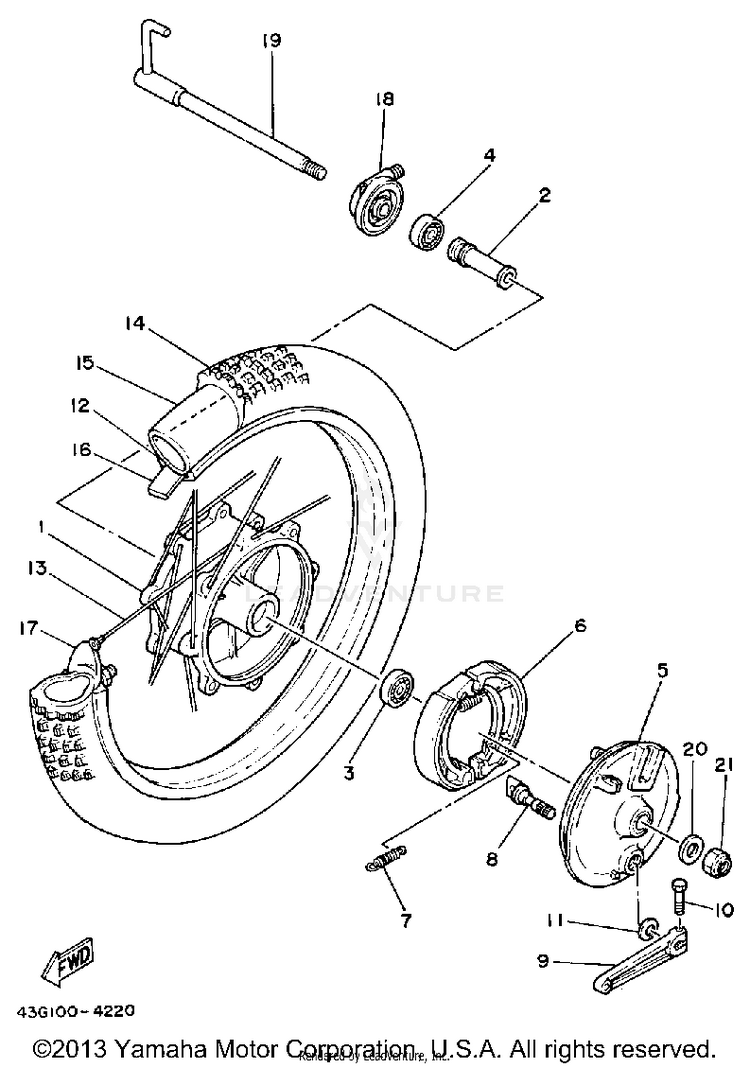

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
138V-25111-00-98HUB, FRONT | LOW GLOSS BLK$196.99$153.65Not Shipping
290560-15116-00

(replaces part #
90560-15227-00)

SPACER$13.99$11.47Not Shipping
393306-20226-00BEARING$42.99$33.534 In-Stock
493306-20205-00

(replaces part #
93306-20209-00)

BEARING$42.99$33.5310+ In-Stock
51W1-25016-11-98BRAKE SHOE PLT ASSEMBLY (1W1-25 | LOW GLOSS BLK$285.99$223.07Usually ships in 7-10 business days
639W-W253E-10-00

(replaces part #
39W-W2536-00-00)

BRAKE SHOE KIT$40.99$31.973 In-Stock
790506-17328-00SPRING, TENSION$11.49$8.9610+ In-Stock
849T-25151-00-00CAMSHAFT (39W-25151-00)$24.99$20.49Usually ships in 7-10 business days
9322-25155-00-00LEVER, CAMSHAFT 1$29.99$24.59Not Shipping
1090101-06291-00BOLT$9.49$7.403 In-Stock
1193104-12003-00

(replaces part #
93104-11056-00)

OIL SEAL$9.49$7.4010+ In-Stock
1294416-21389-00RIM 1.60X21$391.99$307.21Usually ships in 7-10 business days
1343G-25104-00-00SPOKE SET, FRONT$141.99$110.75Not Shipping
1494109-212F8-0090/90-21 M2EA-TT | INOUE$99.99$82.51Usually ships in 7-10 business days
1594230-21126-00TUBE | INOUE$6.99$6.29Not Shipping
1694330-21088-00BAND, RIM | INOUE$3.16$2.84Not Shipping
174V5-25194-00-00SPACER, BEAD$68.99$53.81Usually ships in 7-10 business days
1826A-25190-00-00GEAR UNIT ASSEMBLY$87.99$68.63Not Shipping
1943G-25181-00-00AXLE, WHEEL$44.99$36.89Usually ships in 7-10 business days
2090201-15785-00WASHER, PLATE$9.49$7.402 In-Stock
2190185-14070-00NUT, SELF-LOCKING$14.49$11.3010+ In-Stock
