1985 Yamaha IT200 Seat OEM Parts Diagram

Submodel IT200N - 1985

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SEAT

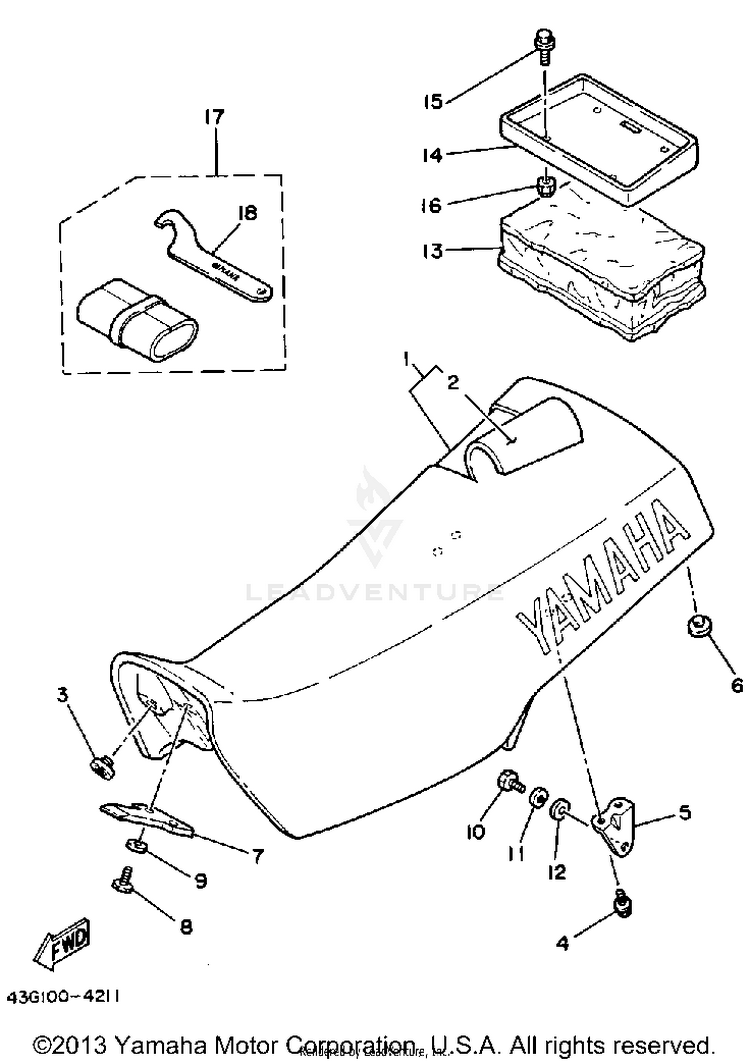

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
143G-W2473-00-00SEMI-DBL-SEAT ASSEMBLYSEAT ASSE$449.99$350.99Not Shipping
243G-24731-00-00COVER, DOUBLE SEAT$175.99$137.27Not Shipping
3509-24724-00-00DAMPER, SEAT$11.99$9.353 In-Stock
495817-06012-00

(replaces part #
95811-06012-00)

BOLT, FLANGE$1.95$1.7710+ In-Stock
539W-24738-00-00BRACKET, SEAT$20.99$17.21Not Shipping
6509-24724-00-00DAMPER, SEAT$11.99$9.353 In-Stock
75X6-24748-10-00BRACKET, SEAT$9.99$8.99Not Shipping
897013-06012-00BOLT$6.49$5.0610+ In-Stock
992995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1090101-08691-00

(replaces part #
97313-08018-00)

BOLT, HEX-$5.0410+ In-Stock
1192990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
1290201-087F0-00WASHER, PLATE$6.49$5.0610+ In-Stock
134V5-24850-00-00CARRIER BOX ASSEMBLY$161.99$126.35Not Shipping
144V5-24833-00-00BRACKET, CARRIER 2$51.99$40.55Not Shipping
1595817-06016-00

(replaces part #
95811-06016-00)

BOLT, FLANGE$1.95$1.6810+ In-Stock
1695604-06200-00

(replaces part #
95601-06200-00)

NUT, U FLANGE$2.95$2.5410+ In-Stock
171LN-W2810-01-00

(replaces part #
26A-28100-00-00)

TOOL KIT (48Y-28100-00-00)$130.99$102.17Not Shipping
181HX-28135-00-00SPANNER, SPECIAL$41.99$34.43Not Shipping
