1985 Yamaha TY350 Crankshaft - Piston OEM Parts Diagram

Submodel TRIALS - TY350N - 1985

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

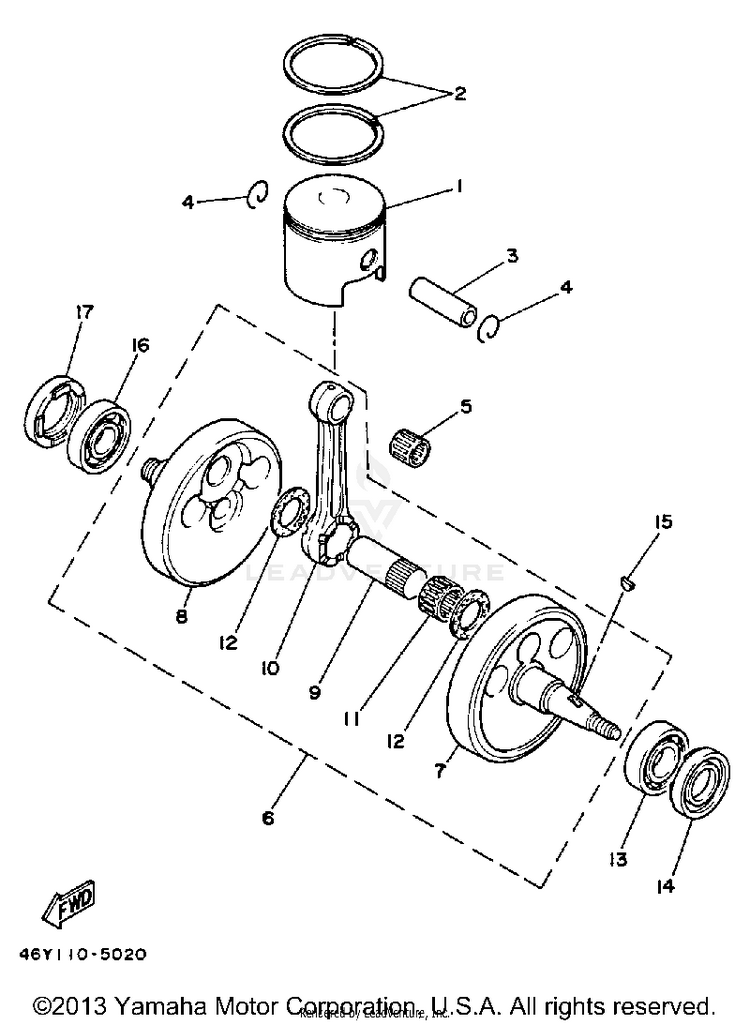

CRANKSHAFT - PISTON

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
146Y-11631-00-X0PISTON STD$144.99$113.09Not Shipping
246Y-11601-00-00PISTON RINGSET STD$38.99$30.41Not Shipping
3275-11633-00-00PIN, PISTON$38.99$30.412 In-Stock
493450-20026-00CIRCLIP$9.49$7.4010+ In-Stock
593310-418E9-00BEARING, CYLINDRICAL$52.99$41.336 In-Stock
638V-11400-00-00CRANKSHAFT ASSEMBLY$348.99$272.21Usually ships in 7-10 business days
738V-11412-00-00CRANK 1$86.94$67.81Usually ships in 7-10 business days
838V-11422-00-00CRANK 2$80.15$62.52Usually ships in 7-10 business days
93R8-11681-00-00PIN, CRANK 1$50.99$39.77Usually ships in 7-10 business days
1024Y-11651-01-00ROD, CONNECTING$128.99$100.61Usually ships in 7-10 business days
1193310-425P2-00

(replaces part #
93310-425N4-00)

BEARING, CYLINDRICAL$82.99$64.733 In-Stock
1290209-25085-00WASHER, (90209-25220)$13.49$10.524 In-Stock
1393306-20627-00BEARING$82.99$64.735 In-Stock
1493103-30150-00OIL SEAL (38W)$24.99$19.4910+ In-Stock
1590280-05001-00

(replaces part #
90280-16053-00)

KEY, WOODRUFF$13.49$10.5210+ In-Stock
1693306-20627-00BEARING$82.99$64.735 In-Stock
1793103-40091-00OIL SEAL$35.99$28.0710+ In-Stock
