1985 Yamaha TY350 Intake OEM Parts Diagram

Submodel TRIALS - TY350N - 1985

Shop Aftermarket Parts

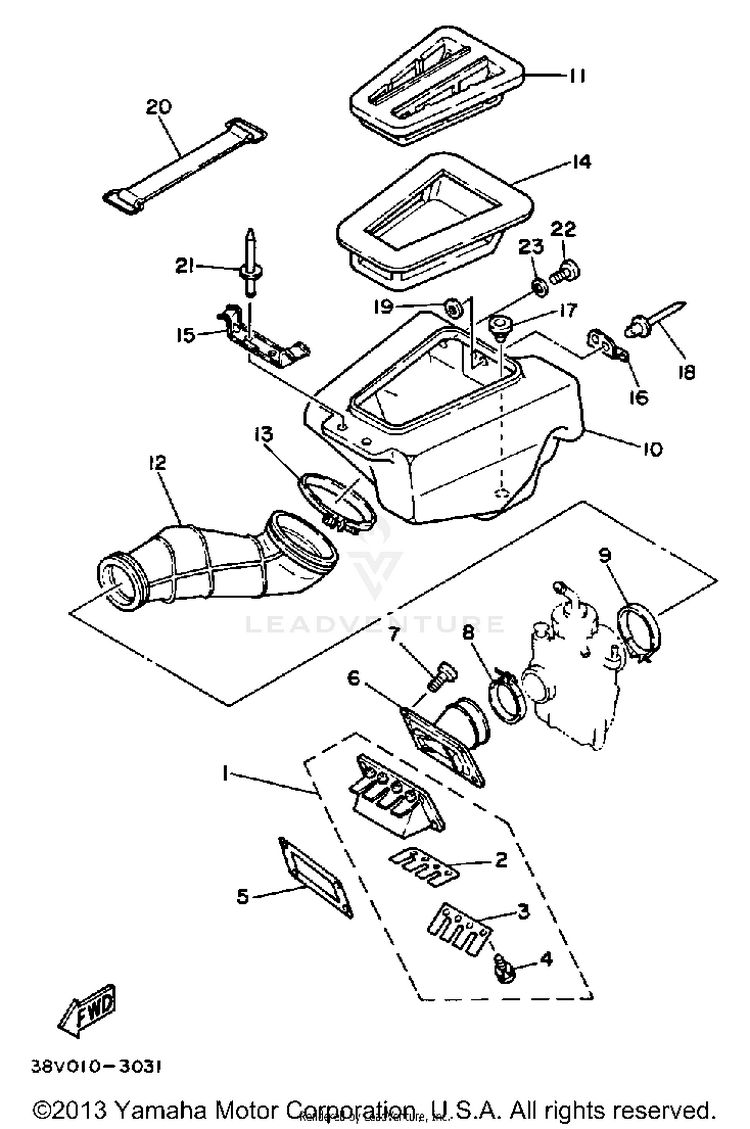

INTAKE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
146Y-13610-00-00REED VALVE ASSEMBLY$138.99$108.41Not Shipping
28AT-13613-00-00

(replaces part #
1M1-13613-10-00)

REED, VALVE$36.99$30.33Usually ships in 7-10 business days
346Y-13616-00-00STOPPER, REED VALVE$6.49$5.84Not Shipping
498580-03008-00SCREW, PAN HEAD$3.85$3.3110+ In-Stock
58Y7-13556-01-00GASKET, MANIFOLD$10.49$8.188 In-Stock
638V-13565-00-00JOINT, CARBURETOR$119.99$93.59Not Shipping
791317-06020-00

(replaces part #
91316-06020-00)

BOLT, HEX. SOCKET HEAD$2.75$2.3610+ In-Stock
890460-43179-00

(replaces part #
90460-43053-00)

CLAMP, HOSE$21.99$17.1510+ In-Stock
990460-49058-00CLAMP, HOSE$8.49$6.6710+ In-Stock
1038V-14411-00-00CASE, AIR CLEANER 1$125.99$98.27Usually ships in 7-10 business days
1138V-14412-00-00CAP, CLEAN CASE 1$19.43$15.93Not Shipping
1238V-14453-00-00

(replaces part #
53Y-14453-00-00)

JOINT,AIR CLEAN 1$126.99$99.05Usually ships in 7-10 business days
1390460-01186-00CLAMP, HOSE$17.99$14.75Usually ships in 7-10 business days
1438V-14451-01-00

(replaces part #
38V-14451-00-00)

ELEMENT,AIR CLEANR$24.99$19.492 In-Stock
1538V-14493-00-00STAY 1$2.77$2.49Usually ships in 7-10 business days
1626A-14436-00-00HOOK$6.99$6.29Not Shipping
1790480-09211-00GROMMET$1.90$1.71Usually ships in 7-10 business days
1890267-40029-00RIVET, BLIND$9.49$8.54Usually ships in 7-10 business days
1992990-04200-00WASHER, PLAIN$2.00$1.7210+ In-Stock
20133-82131-00-00BAND, BATTERY$30.99$24.177 In-Stock
2190267-40043-00RIVET, BLIND 46Y$0.80$0.72Usually ships in 7-10 business days
2297885-06012-00

(replaces part #
98580-06012-00)

SCREW, PAN HEAD$3.45$2.9710+ In-Stock
2392995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
