1985 Yamaha TY350 Electrical1 OEM Parts Diagram

Submodel TRIALS - TY350N - 1985

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL1

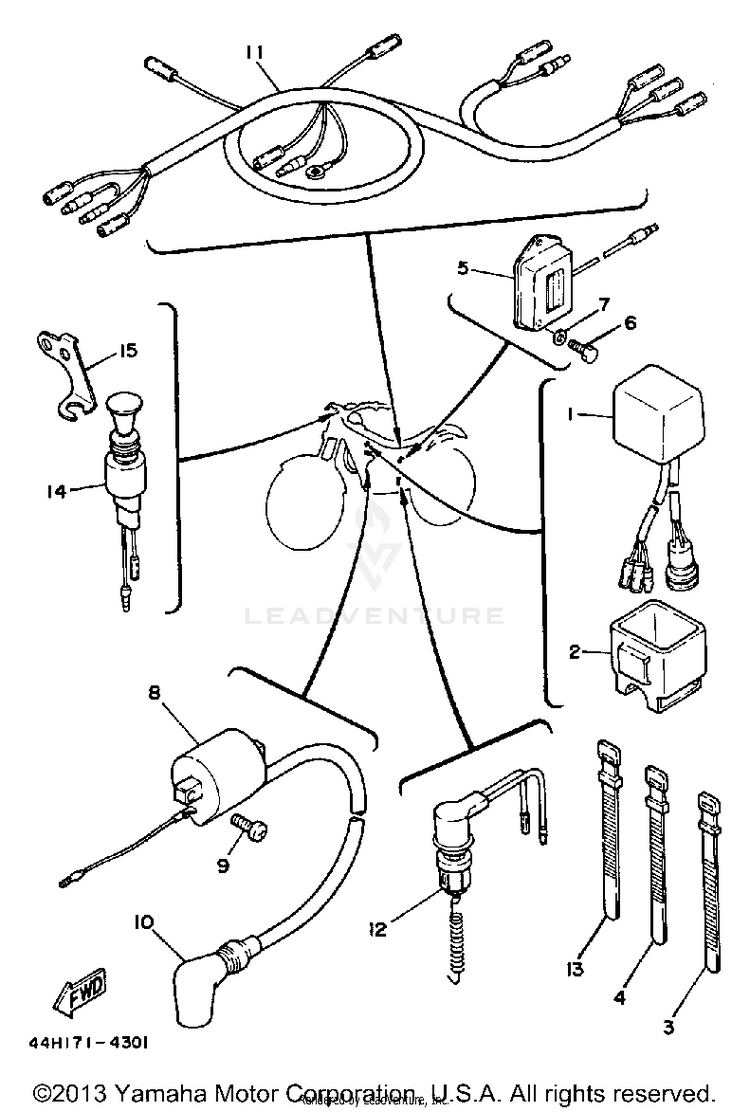

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
138V-85540-20-00CDI UNIT ASSEMBLY$179.99$140.39Usually ships in 7-10 business days
22A7-85546-00-00BAND$25.99$21.31Usually ships in 7-10 business days
3437-83936-11-00BAND, SWITCH CORD$5.00$4.3010+ In-Stock
425G-83936-01-00BAND, SWITCH CORD$5.49$4.283 In-Stock
5443-81910-62-00VOLTAGE REG ASSEMBLY (498-81910$276.99$216.05Not Shipping
697017-06010-00

(replaces part #
97011-06010-00)

BOLT(3JP)$4.05$3.4810+ In-Stock
790201-061A5-00WASHER, PLATE$8.49$6.6210+ In-Stock
843G-82310-40-00IGNITION COIL ASSEMBLY$139.99$109.19Not Shipping
998507-06014-00

(replaces part #
98503-06014-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
108DG-82370-00-00

(replaces part #
81E-82370-20-00)

PLUG CAP ASSY | W/NOISE SUPPRESSOR$53.99$42.1110+ In-Stock
1144H-82590-00-00WIRE HARNESS ASSEMBLY$23.26$19.07Not Shipping
125R2-82530-03-00

(replaces part #
5R2-82530-02-00)

STOP SWITCH ASSY$26.99$22.13Usually ships in 7-10 business days
13437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
144V5-82520-00-00LIGHT SWITCH ASSEMBLY$153.99$120.11Not Shipping
1544H-82527-00-00STAY, LAMP SWITCH$40.99$33.61Usually ships in 7-10 business days
