1987 Yamaha FZR600 Crankcase OEM Parts Diagram

Submodel FZ600TC - 1987

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

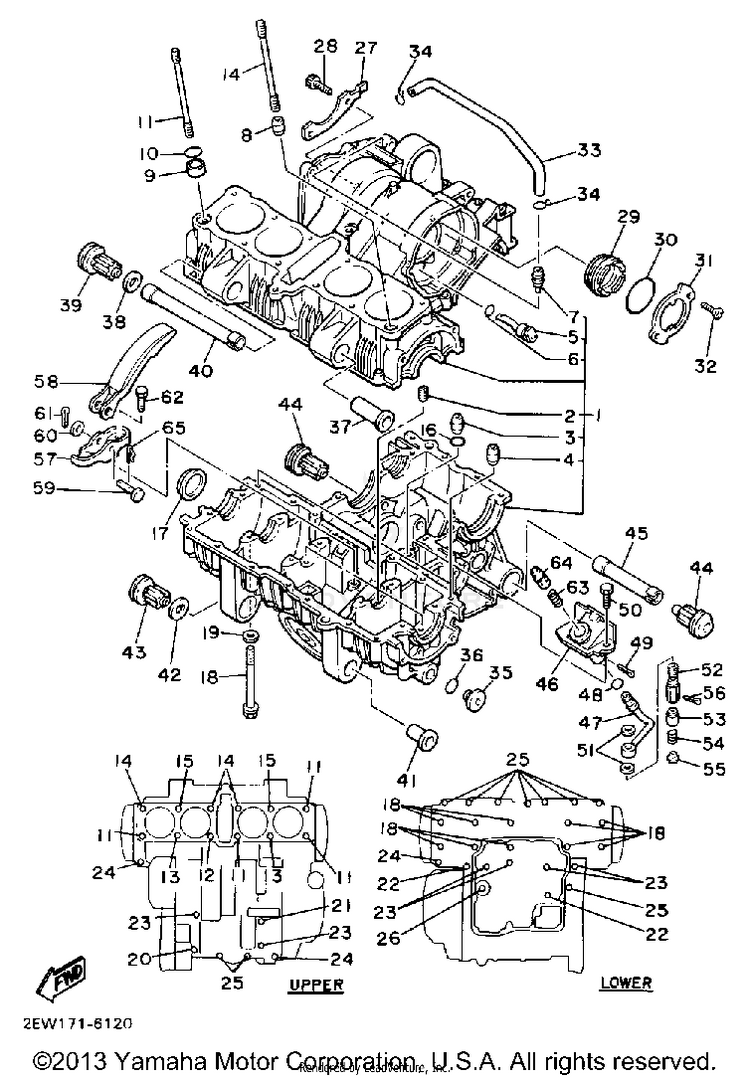

CRANKCASE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
149A-15100-03-00CRANKCASE ASSEMBLY$911.99$736.29Usually ships in 7-10 business days
24KM-13572-01-00

(replaces part #
4G0-15138-00-00)

NOZZLE$7.99$7.19Usually ships in 7-10 business days
399530-10114-00

(replaces part #
99530-10014-00)

PIN, DOWEL$2.65$2.4810+ In-Stock
499530-12016-00

(replaces part #
99510-12016-00)

PIN, DOWEL$4.89$4.2110+ In-Stock
54G0-15148-00-00NOZZLE 2$25.99$21.31Usually ships in 7-10 business days
693210-11453-00O-RING$8.49$6.623 In-Stock
7371-11167-01-00PIPE, BREATHER 2$14.49$11.301 In-Stock
899530-14016-00PIN, DOWEL A$3.80$3.2710+ In-Stock
990387-16547-00COLLAR$10.49$8.184 In-Stock
1093210-18322-00O-RING$5.99$4.676 In-Stock
1190116-08338-00BOLT, STUD$10.99$9.01Usually ships in 7-10 business days
1290116-08339-00BOLT, STUD$9.99$8.99Usually ships in 7-10 business days
1390116-08340-00BOLT, STUD$9.49$8.54Usually ships in 7-10 business days
144G0-11363-00-00BOLT, CYLINDER HOLDING 3$14.99$12.29Usually ships in 7-10 business days
154G0-11364-00-00BOLT, CYLINDER HOLDING 4$11.99$9.83Usually ships in 7-10 business days
1693210-09350-00O-RING$7.49$5.8410+ In-Stock
174H7-15167-10-00PLUG, BLIND 1$21.99$18.03Usually ships in 7-10 business days
1895817-08100-00

(replaces part #
95811-08100-00)

BOLT, FLANGE$6.49$5.062 In-Stock
1990201-094G1-00WASHER, PLATE$10.49$8.185 In-Stock
2095817-08080-00

(replaces part #
95811-08080-00)

BOLT, FLANGE$5.49$4.94Usually ships in 7-10 business days
2195811-06115-00BOLT, FLANGE$3.70$3.33Usually ships in 7-10 business days
2295817-06095-00

(replaces part #
95811-06095-00)

BOLT, FLANGE$2.90$2.61Usually ships in 7-10 business days
2395817-06065-00

(replaces part #
95811-06065-00)

BOLT, FLANGE$3.75$3.38Usually ships in 7-10 business days
2495817-06055-00

(replaces part #
95811-06055-00)

BOLT, FLANGE$2.35$2.12Usually ships in 7-10 business days
2595817-06045-00

(replaces part #
95811-06045-00)

BOLT, FLANGE$9.49$7.4010+ In-Stock
2695817-06035-00

(replaces part #
95811-06035-00)

BOLT, FLANGE$8.49$6.6210+ In-Stock
274G0-15381-00-00PLATE, BRNG COVER$8.99$8.09Usually ships in 7-10 business days
2891317-06016-00

(replaces part #
91316-06016-00)

BOLT (4MY)-$1.4210+ In-Stock
294G0-15163-01-00HOUSING, BEARING 1$20.99$17.21Usually ships in 7-10 business days
3093210-45578-00

(replaces part #
93210-48460-00)

O-RING$9.49$7.538 In-Stock
314G0-15383-00-00PLATE, BEARING COVER$13.49$11.06Usually ships in 7-10 business days
3290151-06014-00SCREW, COUNTERSUNK$10.49$8.60Usually ships in 7-10 business days
3346X-11166-00-00PIPE, BREATHER 1$8.99$8.09Usually ships in 7-10 business days
3490467-14015-00CLIP$9.49$7.407 In-Stock
354H7-15189-00-00PLUG$33.99$26.518 In-Stock
3693210-20573-00O-RING$9.49$7.408 In-Stock
3733M-15336-00-00DAMPER, ENGINE MOUNT 3$16.49$13.52Usually ships in 7-10 business days
3890202-15153-00WASHER, PLATE$2.75$2.48Usually ships in 7-10 business days
3936Y-15336-02-00

(replaces part #
36Y-15336-00-00)

DAMPER,ENG MOUNT 3$45.99$37.71Usually ships in 7-10 business days
4033M-15317-00-00SPACER, ENG MOUNT$6.04$5.44Usually ships in 7-10 business days
4133M-15337-00-00DAMPER 4$16.99$13.93Usually ships in 7-10 business days
4290202-15153-00WASHER, PLATE$2.75$2.48Usually ships in 7-10 business days
4333M-15316-00-00DAMPER, ENG MOUNT 1$28.99$23.77Usually ships in 7-10 business days
4436Y-15326-00-00DAMPER, ENGINE MOUNT 2 (2H7-153$50.99$39.77Not Shipping
454G0-15327-00-00SPACER, ENG MOUNT$13.84$11.35Usually ships in 7-10 business days
464G0-11592-00-00TENSIONER, CHAIN$53.99$42.11Usually ships in 7-10 business days
474G0-13171-00-00PIPE, DELIVERY 2$21.99$18.03Usually ships in 7-10 business days
4893210-07540-00O-RING$7.49$5.8410+ In-Stock
4991490-25020-00

(replaces part #
91401-25020-00)

PIN. COTTER$3.45$2.9710+ In-Stock
5090110-06158-00BOLT, HEXAGON SOCKET HEAD$1.55$1.40Usually ships in 7-10 business days
5190430-10171-00BOLT, UNION$3.45$2.9710+ In-Stock
524G0-11575-00-00RELIEF VALVE ASSY$46.99$38.53Usually ships in 7-10 business days
534G0-11575-00-00RELIEF VALVE ASSY$46.99$38.53Usually ships in 7-10 business days
5490501-08614-00SPRING, COMPRESSION$2.60$2.349 In-Stock
5590209-03202-00WASHER, SPECL SHAP$2.70$2.43Usually ships in 7-10 business days
5691490-20025-00

(replaces part #
91490-20020-00)

PIN, COTTER$1.99$1.7110+ In-Stock
574G0-11497-00-00BRACKET, TENSIONER$6.44$5.80Usually ships in 7-10 business days
584G0-11492-00-00TENSIONER ARM COMP$85.99$67.07Usually ships in 7-10 business days
5990240-08078-00PIN, CLEVIS$3.80$3.42Usually ships in 7-10 business days
6092990-08600-00

(replaces part #
92901-08600-00)

WASHER, PLATE$2.80$2.7610+ In-Stock
6191490-25020-00

(replaces part #
91401-25020-00)

PIN. COTTER$3.45$2.9710+ In-Stock
6290110-06158-00BOLT, HEXAGON SOCKET HEAD$1.55$1.40Usually ships in 7-10 business days
6390501-143A8-00SPRING, COMPRESSION$4.90$4.41Usually ships in 7-10 business days
6446X-11597-00-00PLUNGER, TENSIONER$25.99$21.31Usually ships in 7-10 business days
6590468-18008-00CLIP$1.60$1.46Usually ships in 7-10 business days
