1987 Yamaha FZR600 Front Wheel OEM Parts Diagram

Submodel FZ600TC - 1987

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT WHEEL

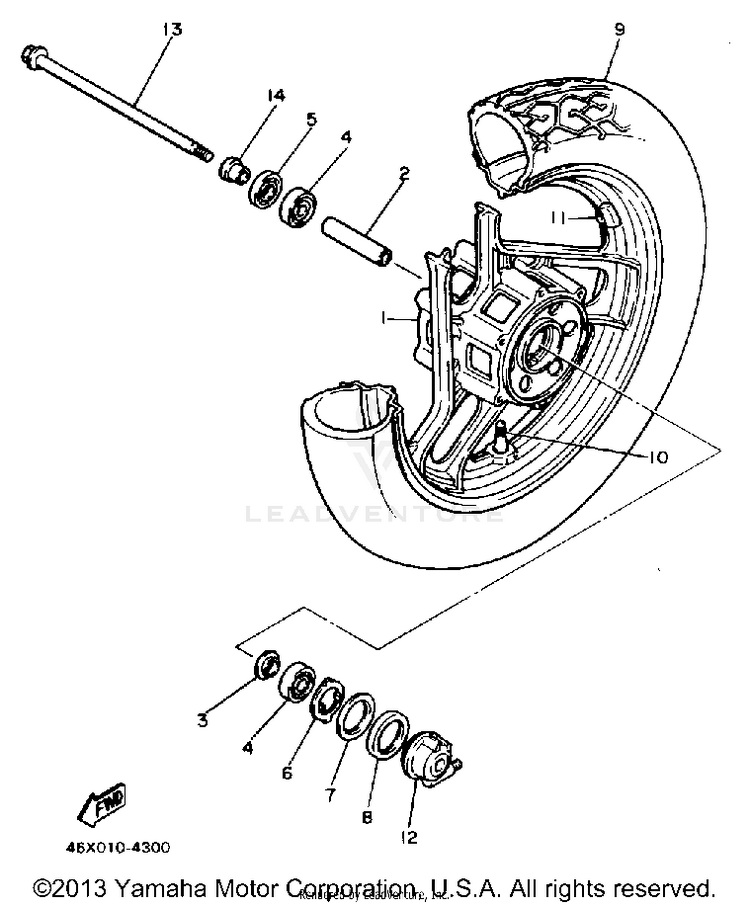

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-5MT-25398-00-00

(replaces part #
29L-25398-00-00)

BALANCER, WHEEL (10G) | UN$18.99$15.574 In-Stock
-5MT-25398-10-00

(replaces part #
29L-25398-10-00)

BALANCER, WHEEL (20G) | UN$18.99$15.57Usually ships in 7-10 business days
-46X-25168-00-FHWHEEL, CAST FRONT | FIRE RED$512.99$429.30Usually ships in 7-10 business days
146X-25168-00-98WHEEL, CAST FRONT | LW GLOSS BLK$531.99$444.68Usually ships in 7-10 business days
290560-15116-00SPACER$13.99$11.47Not Shipping
3146-25115-00-00FLANGE,SPACER 1$7.49$5.843 In-Stock
493306-30212-00

(replaces part #
93306-30202-00)

BEARING$44.99$35.0910+ In-Stock
593102-22014-00OIL SEAL, SD-TYPE$13.49$10.523 In-Stock
6341-25149-00-00CLUTCH, METER$8.49$7.642 In-Stock
7341-25846-00-00RETAINER, CLUTCH$9.49$8.542 In-Stock
893105-45017-00OIL SEAL$16.49$12.862 In-Stock
994110-167J1-00110/90-16 YOKO 54H | UR DUNLOP$105.99$82.67Usually ships in 7-10 business days
1093900-00030-00VALVE, RIM (TR412) | UR DUNLOP$18.49$14.425 In-Stock
115MT-25398-20-00

(replaces part #
29L-25398-20-00)

BALANCER, WHEEL (30G) | UN$46.99$38.53Usually ships in 7-10 business days
124X8-25190-10-00

(replaces part #
4X8-25190-00-00)

GEAR UNIT ASSEMBLY$100.99$78.77Usually ships in 7-10 business days
1310W-25181-00-00UNAVAILABLE IN PRICE BOOK (33M-$0.00$0.00Not Shipping
1490387-15550-00COLLAR$20.99$17.21Usually ships in 7-10 business days
