1987 Yamaha FZR600 Generator OEM Parts Diagram

Submodel FZ600TC - 1987

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

GENERATOR

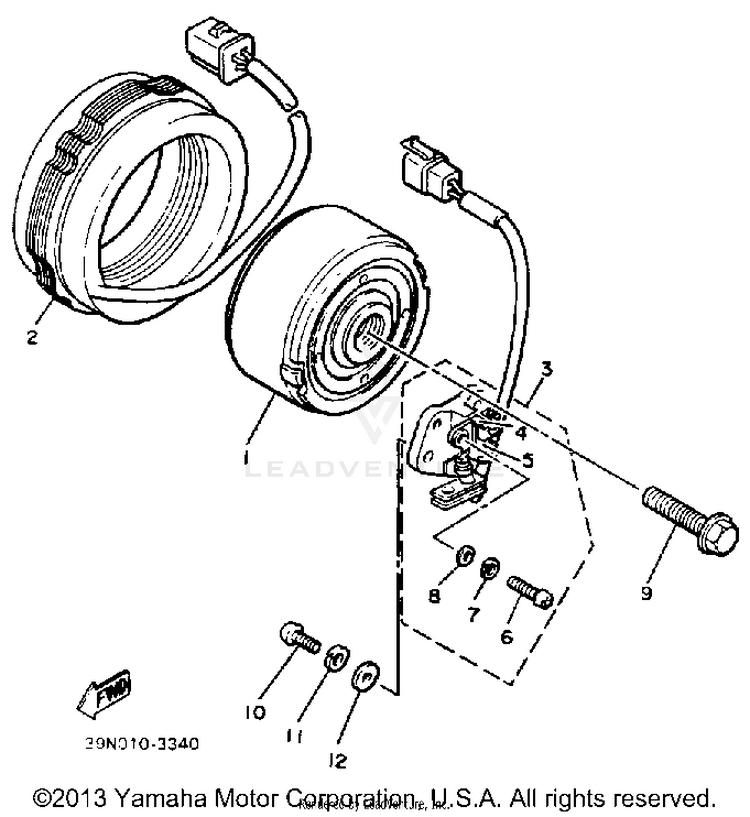

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12XL-81650-10-00ROTOR ASSEMBLY$405.99$316.67Usually ships in 7-10 business days
22XL-81610-10-00STATOR ASSEMBLY$704.99$549.89Usually ships in 7-10 business days
346X-81619-10-00BRUSH HOLDER ASSEMBLY$108.99$85.01Usually ships in 7-10 business days
446X-81611-10-00BRUSH 1$83.99$65.51Usually ships in 7-10 business days
54G0-81612-10-00BRUSH 2$42.99$37.58Usually ships in 7-10 business days
698517-04012-00

(replaces part #
98511-04012-00)

SCREW,PANHEAD$4.20$3.6110+ In-Stock
792990-04100-00

(replaces part #
92901-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
892990-04600-00

(replaces part #
92901-04600-00)

WASHER, PLATE$0.99$0.907 In-Stock
990105-10152-00BOLT, FLANGE$12.49$10.24Usually ships in 7-10 business days
1098507-06014-00

(replaces part #
98503-06014-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
1192995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1292990-06600-00WASHER, PLAIN (646)$2.95$2.797 In-Stock

Get additional RM Cash on OEM purchases!

Select parts to add, then click
