1987 Yamaha Virago XV700 Crankcase OEM Parts Diagram

Submodel VIRAGO 700 - XV700CTC - 1987

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

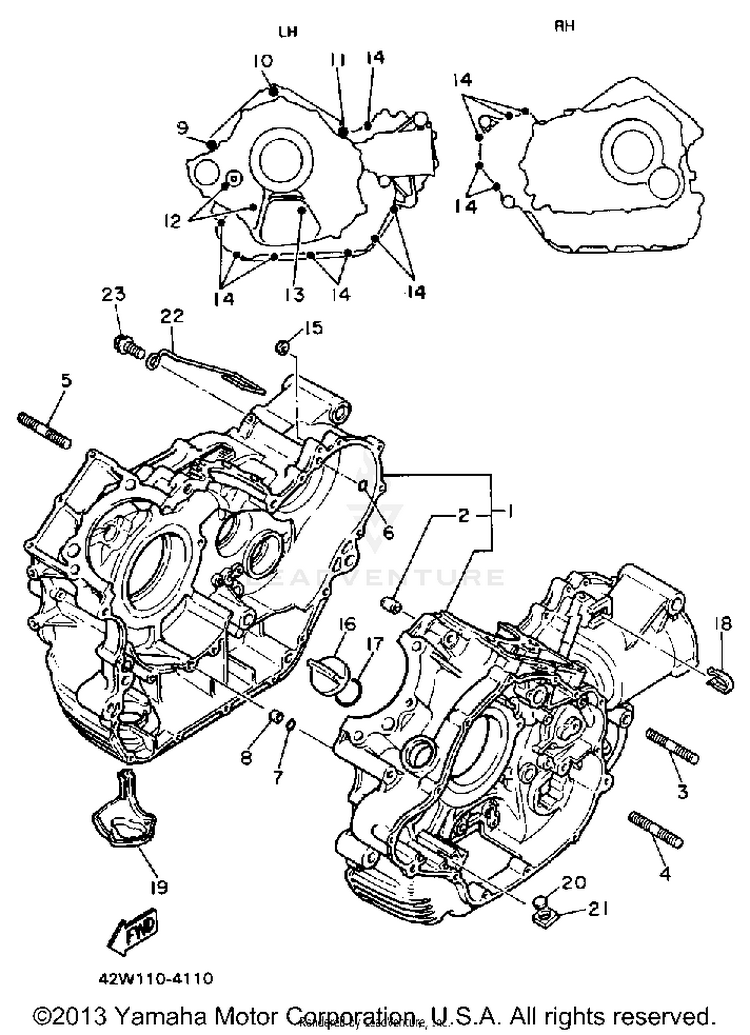

CRANKCASE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
142X-15100-02-00CRANKCASE ASSEMBLY$973.99$814.46Usually ships in 7-10 business days
299530-14016-00PIN, DOWEL A$3.80$3.2710+ In-Stock
299530-12016-00

(replaces part #
99510-12016-00)

PIN, DOWEL$4.89$4.2110+ In-Stock
395617-10620-00

(replaces part #
95611-10620-00)

BOLT, STUD$6.99$6.29Not Shipping
495617-10620-00

(replaces part #
95611-10620-00)

BOLT, STUD$6.99$6.29Not Shipping
595617-10670-00

(replaces part #
95611-10670-00)

BOLT, STUD$11.99$9.83Not Shipping
693210-07438-00O-RING$9.49$7.404 In-Stock
793210-07135-00O-RING$6.99$5.4510+ In-Stock
AFTERMARKET ALTERNATIVE
$10.45$4.9910+ In-Stock
890387-06704-00

(replaces part #
90387-064E8-00)

COLLAR$2.95$2.66Usually ships in 7-10 business days
991317-10100-00

(replaces part #
91311-10100-00)

BOLT$8.99$8.09Usually ships in 7-10 business days
1091317-10070-00

(replaces part #
91311-10070-00)

BOLT$7.49$6.74Usually ships in 7-10 business days
1191314-10060-00

(replaces part #
91311-10060-00)

BOLT$2.85$2.56Usually ships in 7-10 business days
1291314-06080-00

(replaces part #
91311-06080-00)

BOLT, HEXAGON SOCKET HEAD$4.20$3.617 In-Stock
1391314-06055-00

(replaces part #
91311-06055-00)

BOLT, HEXAGON SOCKET HEAD$9.49$8.54Usually ships in 7-10 business days
1491314-06030-00

(replaces part #
91311-06030-00)

BOLT, HEXAGON SOCKET HEAD$9.49$8.547 In-Stock
1590430-06014-00GASKET$8.99$7.0110+ In-Stock
1657A-15363-11-00PLUG, OIL$82.99$64.73Usually ships in 7-10 business days
1793210-29198-00O-RING$8.49$7.64Usually ships in 7-10 business days
1890465-10168-00CLAMP$7.49$6.74Usually ships in 7-10 business days
194X7-15491-00-00PROTECTOR$35.99$29.51Usually ships in 7-10 business days
204X7-13419-00-00PLUG$11.99$9.83Usually ships in 7-10 business days
2190480-20302-00GROMMET$9.99$8.99Usually ships in 7-10 business days
2242X-21164-00-00HOLDER, CABLE$23.99$19.67Usually ships in 7-10 business days
2390105-10275-00BOLT, WASHER BASED$4.45$4.00Usually ships in 7-10 business days
