1987 Yamaha Virago XV700 Meter OEM Parts Diagram

Submodel VIRAGO 700 - XV700CTC - 1987

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

METER

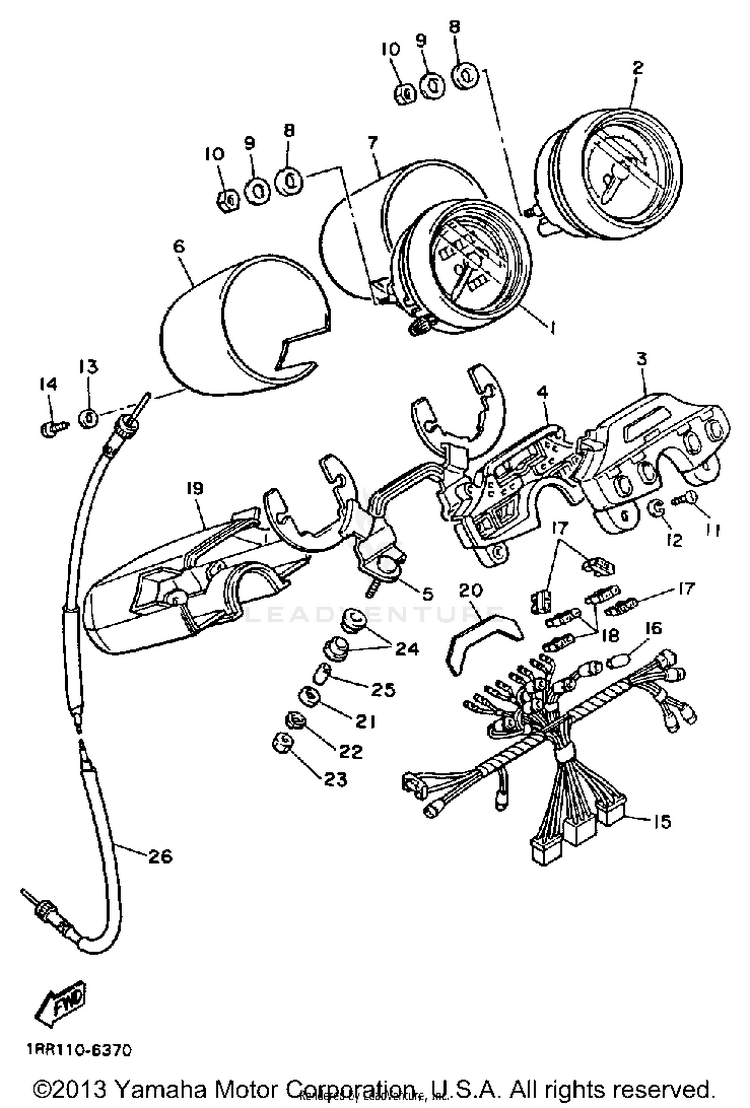

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13LP-83570-00-00SPEEDOMETER ASSEMBLY$422.99$329.93Usually ships in 7-10 business days
21RM-83540-00-00TACHOMETER ASSEMBLY$598.99$467.21Usually ships in 7-10 business days
342X-8353G-00-00CASE UPPER$32.99$27.05Usually ships in 7-10 business days
41AA-8353H-00-00CASE, INNER$34.99$28.69Usually ships in 7-10 business days
51FG-83519-00-00BRACKET, METER$116.99$91.25Usually ships in 7-10 business days
642X-83507-00-00COVER, SPEEDOMETER$117.99$92.03Usually ships in 7-10 business days
742X-83508-00-00COVER, TACHOMETER$103.99$81.11Usually ships in 7-10 business days
81FG-83523-00-00DAMPER$10.99$9.01Usually ships in 7-10 business days
990201-05725-00

(replaces part #
90201-05031-00)

WASHER, PLATE$10.49$8.606 In-Stock
1095380-05600-00NUT$9.49$8.54Usually ships in 7-10 business days
1198580-04008-00SCREW, PAN HEAD$6.49$5.0610+ In-Stock
1292990-04600-00

(replaces part #
92901-04600-00)

WASHER, PLATE$0.99$0.907 In-Stock
1392990-04600-00

(replaces part #
92901-04600-00)

WASHER, PLATE$0.99$0.907 In-Stock
1490164-04009-00SCREW, TAPPING$0.50$0.45Usually ships in 7-10 business days
151RM-83509-00-00SOCKET CORD ASSEMBLY$275.99$215.27Usually ships in 7-10 business days
1642X-83517-00-00BULB (14V-3.4W)$9.49$8.5410+ In-Stock
1736Y-82151-00-00FUSE (15A-BLUE)$6.49$5.0610+ In-Stock
1842X-82151-00-00

(replaces part #
42X-82151-20-00)

FUSE (10A-BL)$4.70$4.0410+ In-Stock
1942X-83559-00-00COVER, METER$100.99$78.77Usually ships in 7-10 business days
2055R-83579-00-00COVER, METER 2$13.99$11.47Usually ships in 7-10 business days
2192907-06200-00

(replaces part #
92906-06200-00)

WASHER$9.49$7.4010+ In-Stock
2292907-06100-00

(replaces part #
92906-06100-00)

WASHER, SPRING$1.30$1.1210+ In-Stock
2395317-06600-00

(replaces part #
95316-06600-00)

NUT$3.85$3.3110+ In-Stock
24584-83541-00-00DAMPER$9.49$8.54Usually ships in 7-10 business days
2590387-06249-00COLLAR$5.49$4.94Usually ships in 7-10 business days
263LP-83550-00-00

(replaces part #
57A-83550-00-00)

SPEEDOMETER CABLE$47.99$39.35Usually ships in 7-10 business days
