1987 Yamaha Virago XV700 Headlight OEM Parts Diagram

Submodel VIRAGO 700 - XV700CTC - 1987

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEADLIGHT

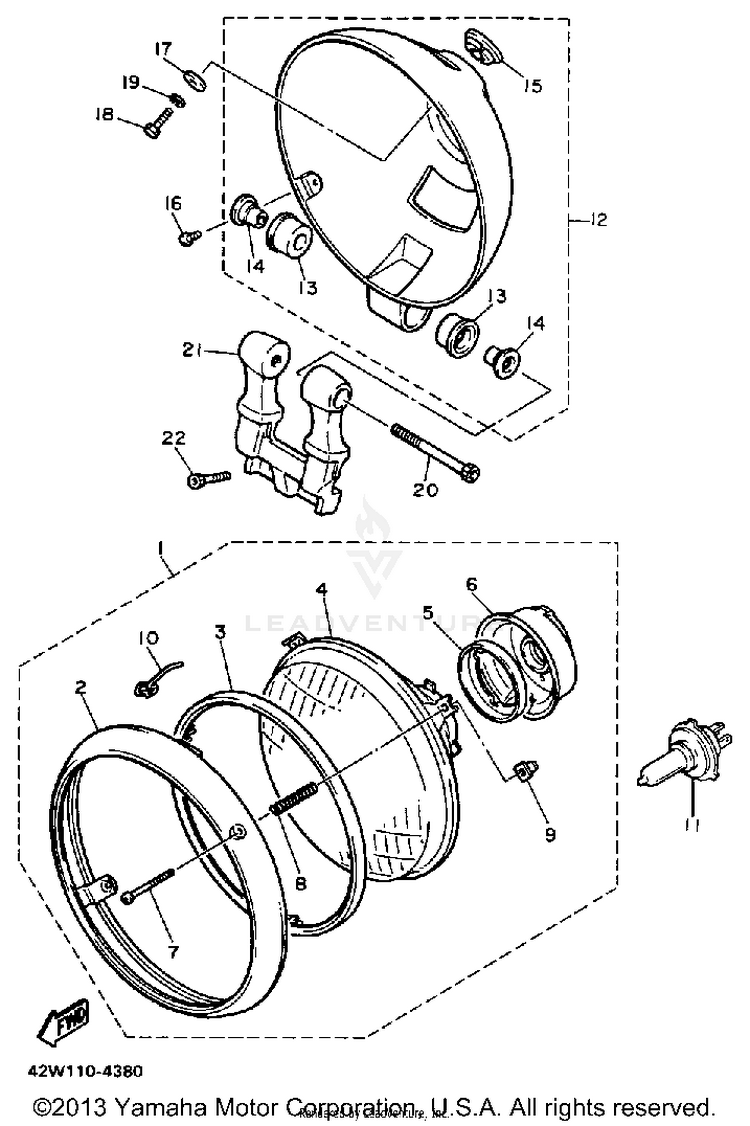

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
142X-84303-A1-00HEADLIGHT UNIT ASSEMBLY$56.37$43.97Not Shipping
242X-84315-01-00RIM, HEADLIGHT$132.99$103.73Usually ships in 7-10 business days
35Y3-84395-00-00RING, RETAINING$55.99$43.67Usually ships in 7-10 business days
442X-84321-A0-00LENS ASSY$131.99$102.95Usually ships in 7-10 business days
52F9-84375-00-00SETTING PLATE, BULB$14.99$12.29Usually ships in 7-10 business days
62F9-84397-01-00COVER, SOCKET$33.99$27.87Usually ships in 7-10 business days
790157-04001-00SCREW, ADJUSTING$9.49$7.404 In-Stock
8447-84332-60-00

(replaces part #
1A0-84332-60-00)

SPRING, SCREW$11.49$9.42Usually ships in 7-10 business days
9198-84334-60-00NUT, ADJUSTING$8.49$6.625 In-Stock
101M1-84124-60-00SPRING, SET$9.49$8.54Usually ships in 7-10 business days
118V0-84314-10-00

(replaces part #
5V2-84314-00-XX)

BULB, HEADLIGHT (12V-60/55W) | LM$75.99$60.93Usually ships in 7-10 business days
1242X-84330-01-00BODY ASSY$234.99$183.29Usually ships in 7-10 business days
1342X-84345-00-00DAMPER, HEADLIGHT$5.99$5.39Usually ships in 7-10 business days
1442X-84338-00-00COLLAR BODY FITTING$12.49$10.24Usually ships in 7-10 business days
1542X-84366-00-00DAMPER, HEADLIGHT 1$22.99$18.85Usually ships in 7-10 business days
1690157-05084-00SCREW, PAN HEAD$5.49$4.94Usually ships in 7-10 business days
1790201-06086-00

(replaces part #
90201-06073-00)

WASHER, PLATE$8.49$7.0110+ In-Stock
1897D95-06016-00

(replaces part #
97313-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
1992995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
2091317-08055-00

(replaces part #
91311-08055-00)

BOLT$4.25$3.82Usually ships in 7-10 business days
2199999-03057-00

(replaces part #
42X-84318-00-00)

STAY,HEADLIGHT 1$84.99$66.29Usually ships in 7-10 business days
2291317-06025-00

(replaces part #
91316-06025-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.2810+ In-Stock
