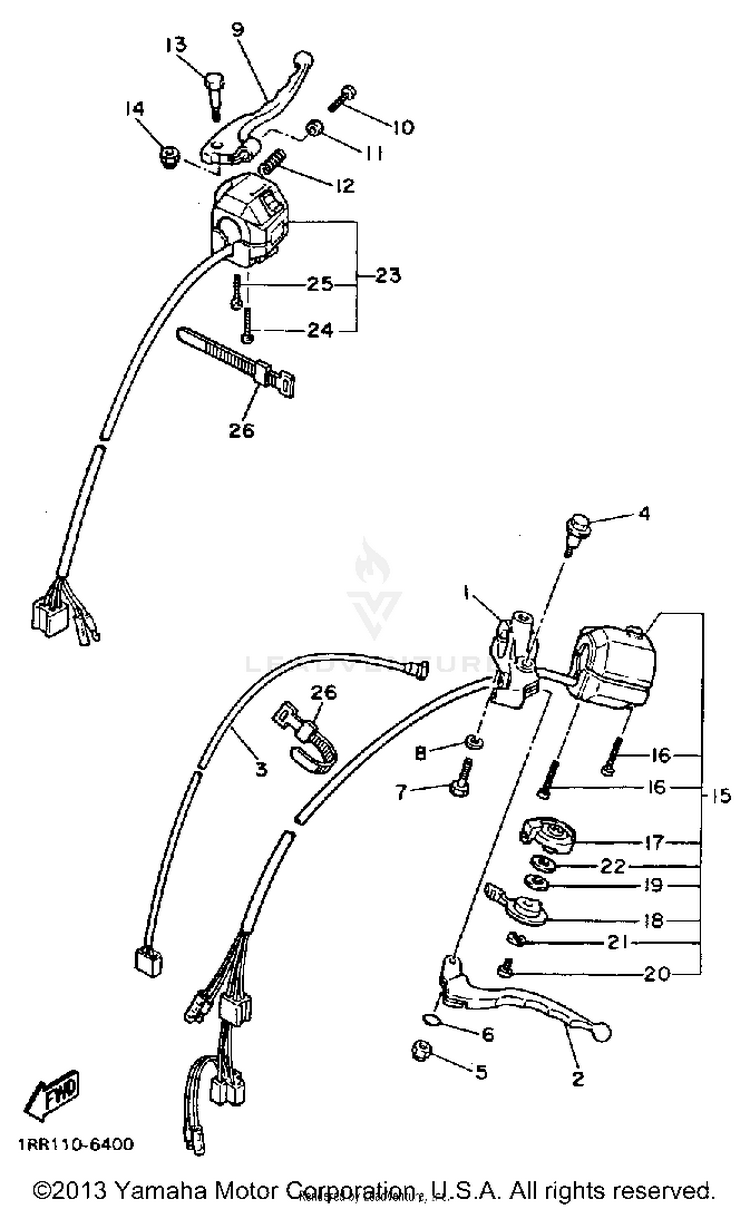

HANDLE SWITCH LEVER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
110M-82911-00-00HOLDER, LEVER 1$80.99$63.17Usually ships in 7-10 business days
257A-83912-01-00LEVER 1$48.99$40.17Usually ships in 7-10 business days
33Y6-82917-00-00SWITCH$16.49$13.52Usually ships in 7-10 business days
490109-06799-00

(replaces part #
90109-067A9-00)

BOLT$5.49$4.288 In-Stock
595617-06100-00

(replaces part #
95616-06100-00)

NUT, U$2.90$2.4910+ In-Stock
693210-11368-00O-RING$6.49$5.84Usually ships in 7-10 business days
797007-06022-00

(replaces part #
97006-06022-00)

BOLT$9.49$7.402 In-Stock
892907-06100-00

(replaces part #
92906-06100-00)

WASHER, SPRING$1.30$1.1210+ In-Stock
957A-83922-01-00LEVER 2$49.99$40.99Usually ships in 7-10 business days
1090149-06131-00

(replaces part #
90149-06153-00)

SCREW$9.49$7.4010+ In-Stock
1190170-06010-00NUT$9.49$7.404 In-Stock
1290501-10312-00SPRING, COMPRESSION$9.49$7.405 In-Stock
1390109-06577-00BOLT$6.49$5.0610+ In-Stock
1495617-06100-00

(replaces part #
95601-06100-00)

NUT, U$2.90$2.4910+ In-Stock
152UJ-83973-00-00SWITCH, HANDLE 3$276.99$216.05Usually ships in 7-10 business days
1698507-05035-00

(replaces part #
98506-05035-00)

SCREW, PAN HEAD$9.49$7.407 In-Stock
1710M-83942-00-00COVER, STARTER$39.99$32.79Usually ships in 7-10 business days
1810M-83941-00-00LEVER, STARTER$28.99$23.77Usually ships in 7-10 business days
1992990-06200-00WASHER, PLAIN-$1.2810+ In-Stock
2098517-06008-00

(replaces part #
98506-06008-00)

SCREW$9.49$7.404 In-Stock
2192995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
221AA-8397X-00-00SPACER$8.49$7.64Usually ships in 7-10 business days
2342X-83975-01-00SWITCH, HANDLE 2 (1AA-83975-00)$189.99$148.19Not Shipping
2498507-05040-00

(replaces part #
98506-05040-00)

SCREW, PAN HEAD$9.49$8.543 In-Stock
2598507-05045-00

(replaces part #
98506-05045-00)

SCREW, PAN HEAD$10.49$8.183 In-Stock
26437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
