1990 Yamaha RT100 Electrical 1 OEM Parts Diagram

Submodel OFF-ROAD - RT100A - 1990

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL 1

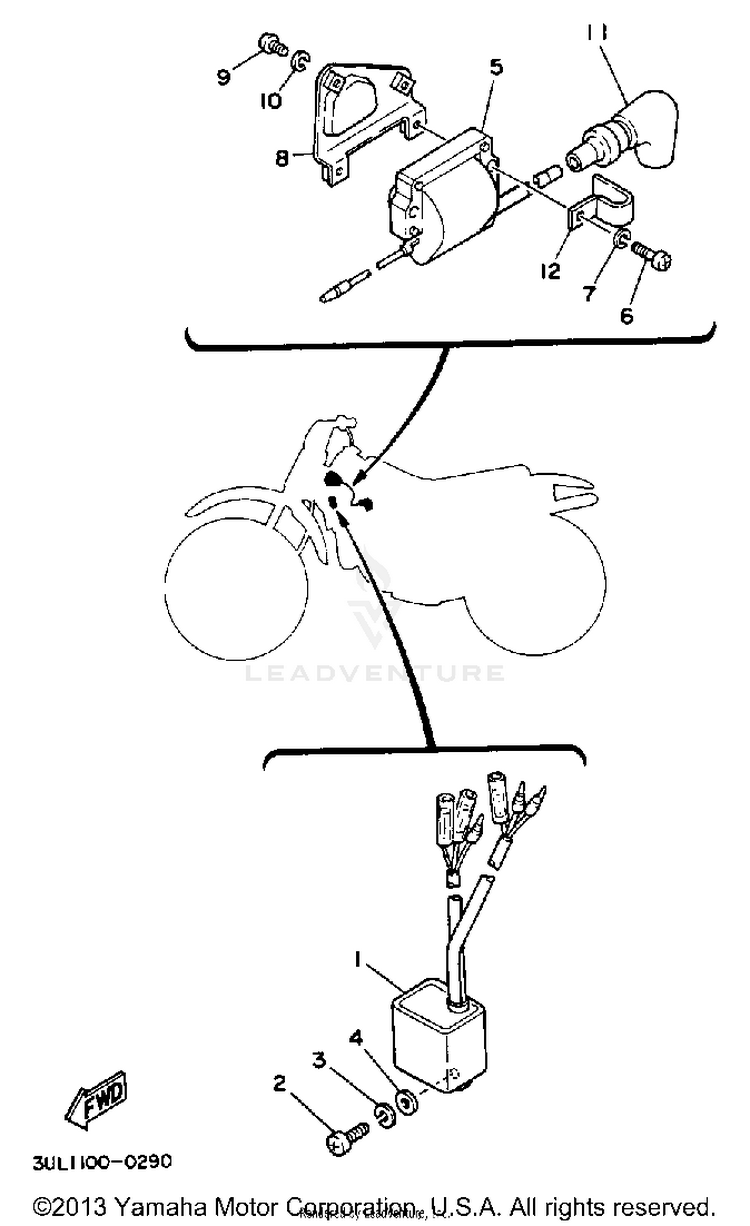

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13KJ-82310-14-00

(replaces part #
3KJ-82310-10-00)

IGNITION COIL ASSY$41.99$41.7510+ In-Stock
298507-06014-00

(replaces part #
98503-06014-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
392995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
492990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
5355-82310-40-00

(replaces part #
5G4-82310-40-00)

IGNITION COIL ASSEMBLY$211.99$165.35Usually ships in 7-10 business days
698517-06025-00

(replaces part #
98511-06025-00)

SCREW, PAN HEAD$4.05$3.4810+ In-Stock
792995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
8336-82316-01-00BRACKET, IGNITION COIL$21.99$18.03Usually ships in 7-10 business days
997885-06012-00

(replaces part #
98580-06012-00)

SCREW, PAN HEAD$3.45$2.9710+ In-Stock
1092995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
118DG-82370-00-00

(replaces part #
81E-82370-20-00)

PLUG CAP ASSY | W/NOISE SUPP$53.99$42.1110+ In-Stock
1290462-05005-00CLAMP$10.49$8.183 In-Stock
