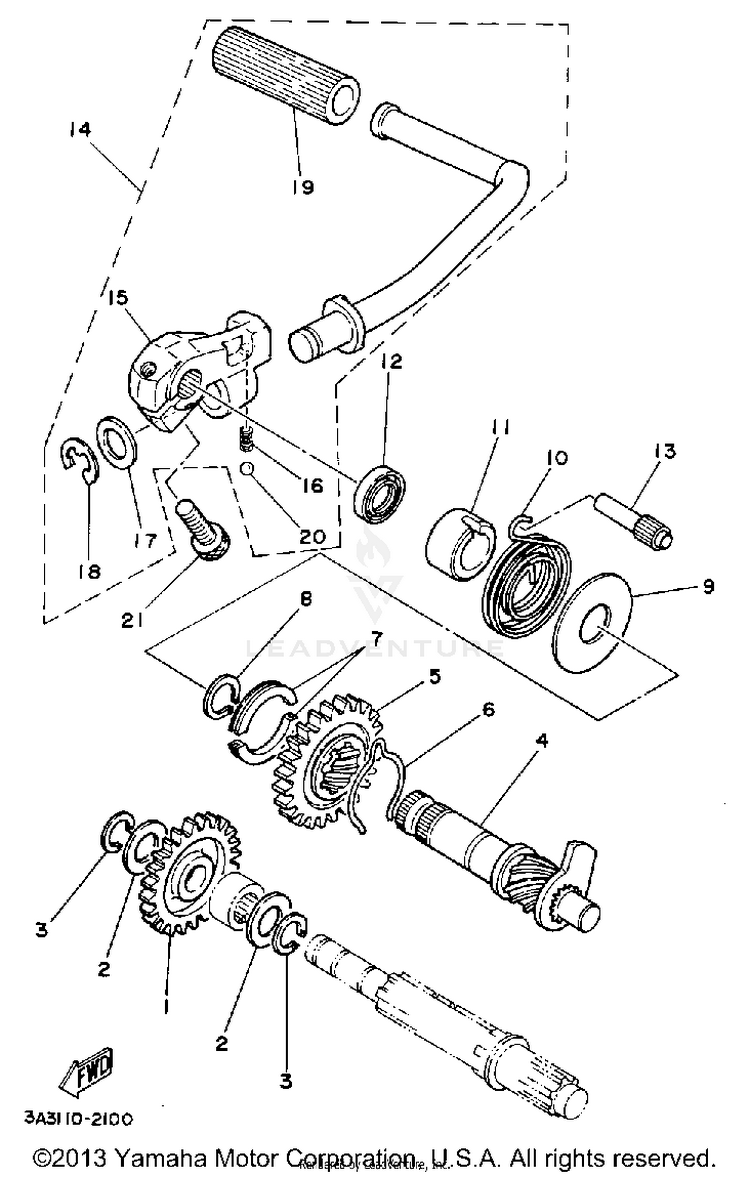

1990 Yamaha RT100 Starter OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	525-15651-00-00	GEAR, KICK IDLE (25T)	$44.99	$36.89	Usually ships in 7-10 business days
2	137-17417-00-05	SHIM 1 (0.5T)	$5.49	$4.28	6 In-Stock
3	93440-15012-00	CIRCLIP, OUTER	$9.49	$7.40	10+ In-Stock
4	403-15660-02-00 (replaces part # 403-15660-01-00)	KICK AXLE ASSEMBLY	$92.99	$72.53	Usually ships in 7-10 business days
5	315-15641-00-00	GEAR, KICK (27T)	$56.99	$44.45	Usually ships in 7-10 business days
6	90468-26048-00	CLIP	$9.49	$7.40	10+ In-Stock
7	248-15654-00-00	HOLDER, KICK GEAR	$7.49	$6.74	Usually ships in 7-10 business days
8	99009-30400-00	CIRCLIP	$9.49	$7.40	10+ In-Stock
9	401-15676-00-00	COVER, SPRING	$8.49	$6.62	4 In-Stock
10	90508-26041-00	SPRING, TORSION	$8.49	$7.64	Usually ships in 7-10 business days
11	1W1-15666-00-00	SPACER	$17.99	$14.75	Usually ships in 7-10 business days
12	93101-17062-00	OIL SEAL	$16.49	$12.86	10+ In-Stock
13	257-15668-00-00	STOPPER	$11.99	$9.83	Usually ships in 7-10 business days
14	3UL-15620-00-00	KICK CRANK ASSEMBLY	$79.99	$62.39	Usually ships in 7-10 business days
15	1T9-15621-00-00	BOSS, KICK CRANK	$87.99	$68.63	Usually ships in 7-10 business days
16	90501-12081-00	SPRING, BOSS STOPPER	$9.49	$7.40	10+ In-Stock
17	90201-15234-00	WASHER, PLATE	$9.49	$7.40	6 In-Stock
18	99006-10600-00	CIRCLIP	$10.49	$8.18	10+ In-Stock
19	156-15618-01-00	COVER, KICK LEVER	$8.49	$6.62	10+ In-Stock
20	93507-32031-00	BALL	$5.49	$4.28	10+ In-Stock
21	91317-08025-00 (replaces part # 91316-08025-00)	BOLT	$9.49	$7.40	7 In-Stock
