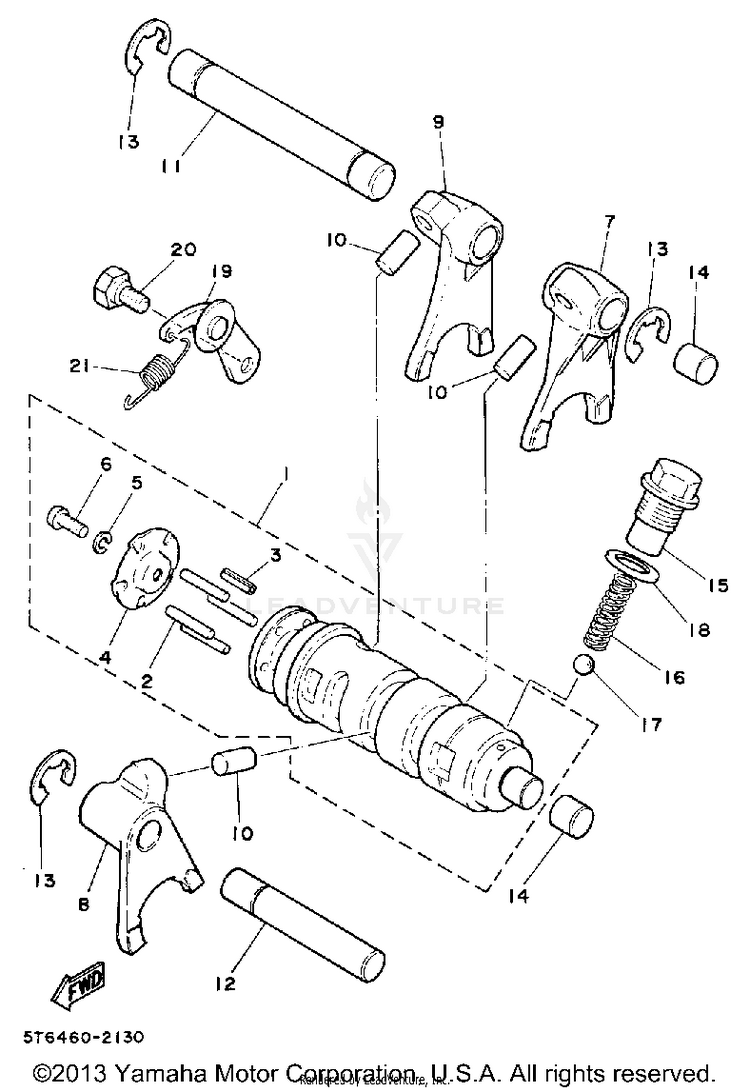

1990 Yamaha RT100 Shift Cam - Fork OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	401-18540-00-00	SHIFT CAM ASSEMBLY	$81.99	$63.95	Usually ships in 7-10 business days
2	93604-22050-00	PIN, DOWEL	$9.49	$7.40	6 In-Stock
3	91690-40016-00 (replaces part # 91609-40016-00)	PIN, SPRING	$9.49	$8.54	4 In-Stock
4	164-18561-00-00	PLATE, SIDE 1	$5.99	$5.39	Usually ships in 7-10 business days
5	92990-05100-00	WASHER, SPRING	-	$0.83	10+ In-Stock
6	98580-05012-00	SCREW, PAN HEAD	$7.99	$6.23	10+ In-Stock
7	463-18511-00-00	FORK, SHIFT 1	$38.99	$31.97	Usually ships in 7-10 business days
8	463-18512-00-00	FORK, SHIFT 2	$38.99	$31.97	Usually ships in 7-10 business days
9	463-18513-00-00	FORK, SHIFT 3	$38.99	$31.97	Usually ships in 7-10 business days
10	90250-08017-00	PIN, STRAIGHT	$6.99	$6.29	Usually ships in 7-10 business days
11	214-18531-00-00	BAR, SHIFT FORK GUIDE 1	$14.99	$12.29	Usually ships in 7-10 business days
12	248-18531-00-00	BAR, SHIFT FORK GUIDE 1	$9.49	$8.54	Usually ships in 7-10 business days
13	99006-10600-00 (replaces part # 93430-10017-00)	CIRCLIP	$10.49	$8.18	10+ In-Stock
14	214-15385-00-00	PLUG, BLIND	$8.49	$6.62	4 In-Stock
15	90109-14385-00	BOLT (90340-14010)	$18.49	$14.42	5 In-Stock
16	90501-12750-00	SPRING, COMPRESSION	$1.85	$1.66	Not Shipping
17	93505-16006-00	BALL	-	$3.55	10+ In-Stock
18	4F4-14766-00-00 (replaces part # 137-15353-00-00)	GASKET, DRAIN	$7.49	$5.84	9 In-Stock
19	132-18140-01-00	STOPPER LEVER ASSEMBLY	$16.49	$12.86	4 In-Stock
20	90109-06239-00 (replaces part # 90109-063F6-00)	BOLT	$8.49	$7.64	Usually ships in 7-10 business days
21	90506-09112-00	SPRING, TENSION	$8.49	$6.62	1 In-Stock
