1990 Yamaha RT100 Frame OEM Parts Diagram

Submodel OFF-ROAD - RT100A - 1990

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRAME

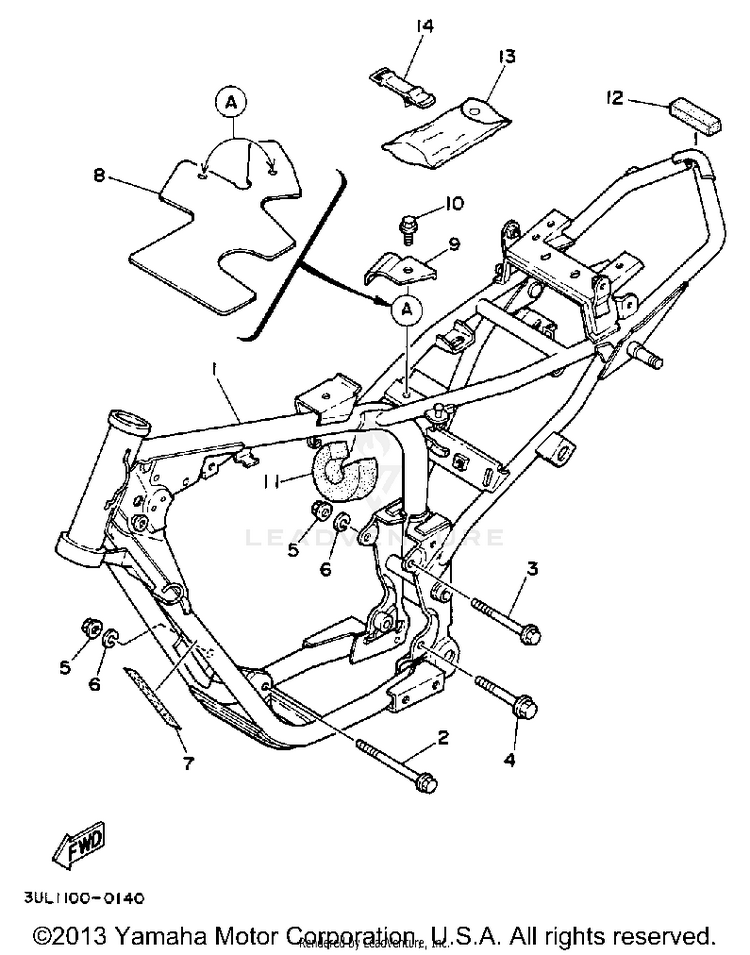

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-3UL-2117F-00-00COVER$86.99$67.85Usually ships in 7-10 business days
-3UL-21329-00-00PLATE$11.49$9.42Usually ships in 7-10 business days
-3UL-21110-00-UJFRAME | UR RADICAL WHITE*$541.99$422.75Usually ships in 7-10 business days
13UL-21110-00-FHFRAME | UR FIRE RED*$541.99$422.75Usually ships in 7-10 business days
290105-08094-00BOLT, FLANGE$2.95$2.66Usually ships in 7-10 business days
390105-08095-00BOLT, WASHER BASED$4.50$4.05Usually ships in 7-10 business days
495817-10075-00

(replaces part #
95811-10075-00)

BOLT, FLANGE$6.49$5.84Usually ships in 7-10 business days
595704-08500-00

(replaces part #
95701-08500-00)

NUT, FLANGE$9.49$7.4010+ In-Stock
692990-08100-00WASHER, SPRING$5.60$4.3710+ In-Stock
73UL-2179X-00-00PLATE, EPA$17.49$14.34Usually ships in 7-10 business days
1095817-06016-00

(replaces part #
95816-06016-00)

BOLT, FLANGE$1.95$1.6810+ In-Stock
118V7-21961-00-00PATCH 1$10.49$8.60Usually ships in 7-10 business days
1283R-14425-00-00

(replaces part #
1KT-21717-00-00)

DAMPER 1$8.49$7.64Usually ships in 7-10 business days
13353-W2810-01-00

(replaces part #
353-W2810-00-00)

TOOL KIT$71.99$56.15Not Shipping
1421V-21376-00-00BAND, TOOL$7.49$5.845 In-Stock
