1990 Yamaha YFM100 CHAMP Crankshaft - Piston OEM Parts Diagram

Submodel CHAMP - YFM100A - 1990

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKSHAFT - PISTON

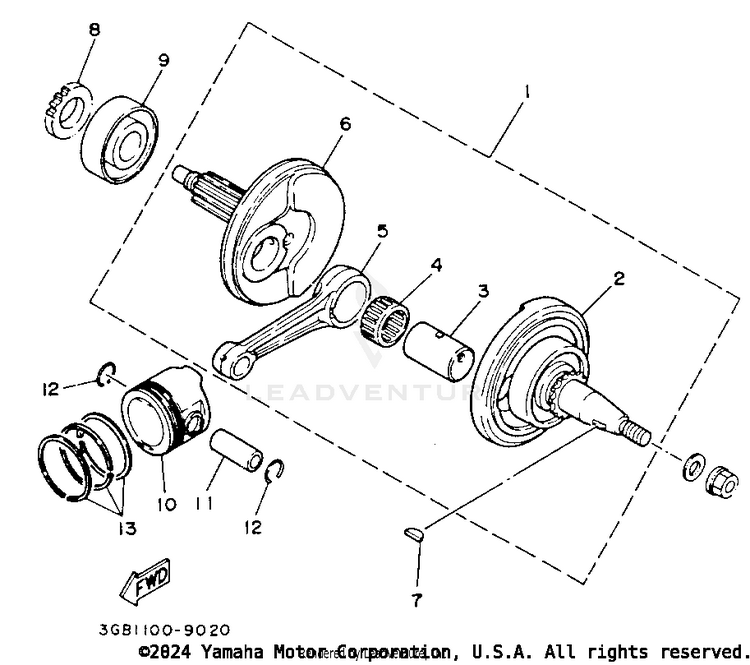

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13GB-11400-00-00CRANKSHAFT ASSEMBLY$280.99$219.62Usually ships in 7-10 business days
23GB-W1141-00-00CRANK 1$111.99$87.35Usually ships in 7-10 business days
322F-11681-00-00PIN, CRANK 1$27.99$22.95Usually ships in 7-10 business days
493311-32353-00BEARING$28.99$23.77Usually ships in 7-10 business days
52HX-11651-00-00ROD, CONNECTING$69.99$54.59Usually ships in 7-10 business days
62HX-11422-00-00CRANK 2$106.99$83.45Usually ships in 7-10 business days
790280-03017-00KEY, WOODRUFF$8.49$6.8310+ In-Stock
846J-13324-00-00GEAR, PUMP DRIVE$43.99$36.07Usually ships in 7-10 business days
993306-30421-00BEARING$71.99$56.1510+ In-Stock
102HX-11631-01-00PISTON (STD)$91.99$71.75Not Shipping
102HX-11636-01-00PISTON (0.50MM O/S) | AP$91.99$71.75Not Shipping
102HX-11638-01-00PISTON (1.00MM O/S) | AP$91.99$71.75Not Shipping
1122K-11633-01-00PIN, PISTON$31.99$24.9510+ In-Stock
1293450-14088-00CIRCLIP$4.40$3.7810+ In-Stock
1350M-11610-20-00PISTON RING SET (0.50MM O/S) | AP$75.99$59.27Usually ships in 7-10 business days
1350M-11610-00-00PISTON RING SET (STD)$75.99$59.273 In-Stock
1350M-11610-40-00PISTON RING SET (1.00MM O/S) | AP$51.99$40.55Usually ships in 7-10 business days
