1990 Yamaha YFM100 CHAMP Starter OEM Parts Diagram

Submodel CHAMP - YFM100A - 1990

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STARTER

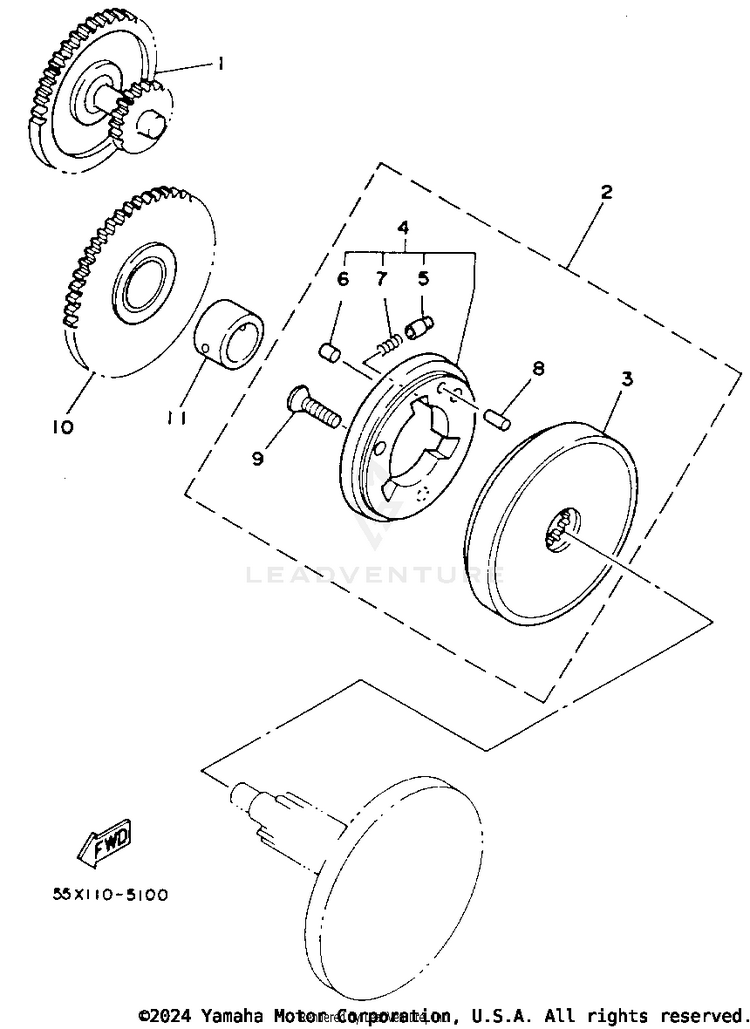

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12HX-15520-00-00STARTER WHEEL ASSY$78.99$61.61Usually ships in 7-10 business days
299999-02218-00STARTER CLUTCH ASSEMBLY$369.99$288.59Usually ships in 7-10 business days
322M-13450-01-00ROTARY FILTER ASSEMBLY$82.99$64.73Usually ships in 7-10 business days
422J-15580-01-00STARTER CLUTCH OUTER ASSEM$183.99$143.51Usually ships in 7-10 business days
54G2-15583-00-00CAP, STARTER CLUTCH SP$4.55$4.10Not Shipping
693608-10155-00PIN, DOWEL$5.49$4.94Not Shipping
790501-03592-00SPRING, COMPRESSION$1.15$1.04Not Shipping
893605-14143-00PIN, DOWEL$5.49$4.94Usually ships in 7-10 business days
998707-06018-00

(replaces part #
98701-06018-00)

SCREW, FLAT HEAD$6.99$6.29Usually ships in 7-10 business days
102HX-15517-00-00GEAR, IDLER 2 | SEE NOTE 1$107.99$84.23Usually ships in 7-10 business days
102HX-15517-10-00GEAR, IDLER 2 | SEE NOTE 2$67.99$53.03Usually ships in 7-10 business days
1190560-20196-00SPACER$16.49$13.52Usually ships in 7-10 business days
