1990 Yamaha YFM100 CHAMP Handle Switch - Lever OEM Parts Diagram

Submodel CHAMP - YFM100A - 1990

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

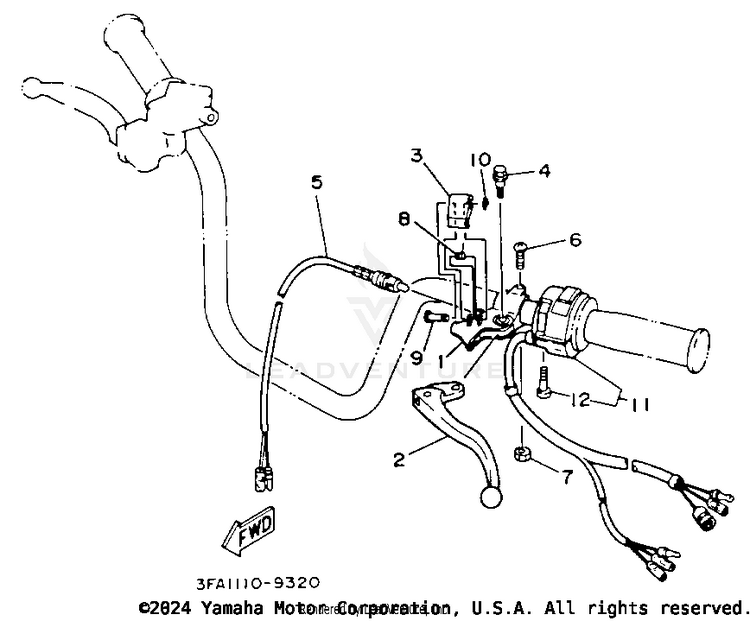

HANDLE SWITCH - LEVER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13FA-82911-01-00

(replaces part #
3FA-82911-00-00)

HOLDER, LEVER 1$43.99$36.07Usually ships in 7-10 business days
21NV-83912-02-00

(replaces part #
1NV-83912-00-00)

LEVER 1$31.99$24.954 In-Stock
33FA-83965-00-00LEVER, LOCK$32.99$27.05Usually ships in 7-10 business days
490109-06798-00BOLT$9.49$7.404 In-Stock
51YW-83980-00-00FRONT STOP SWITCH ASSY$76.99$60.052 In-Stock
698517-06020-00

(replaces part #
98516-06020-00)

SCREW,PAN HEAD$2.35$2.0210+ In-Stock
795617-06100-00

(replaces part #
95601-06100-00)

NUT, U$2.90$2.4910+ In-Stock
83FA-83966-00-00SPRING, RETURN$6.49$5.84Usually ships in 7-10 business days
93FA-83967-00-00PIN, LOCK 1$10.99$9.01Usually ships in 7-10 business days
103FA-26466-00-00RING, SNAP$8.49$7.64Usually ships in 7-10 business days
112HX-83973-09-00

(replaces part #
2HX-83973-01-00)

SWITCH, HANDLE 3$262.99$205.13Usually ships in 7-10 business days
1298517-05030-00

(replaces part #
98506-05030-00)

SCREW, PAN HEAD$11.49$8.962 In-Stock
