1990 Yamaha YFM100 CHAMP Frame OEM Parts Diagram

Submodel CHAMP - YFM100A - 1990

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRAME

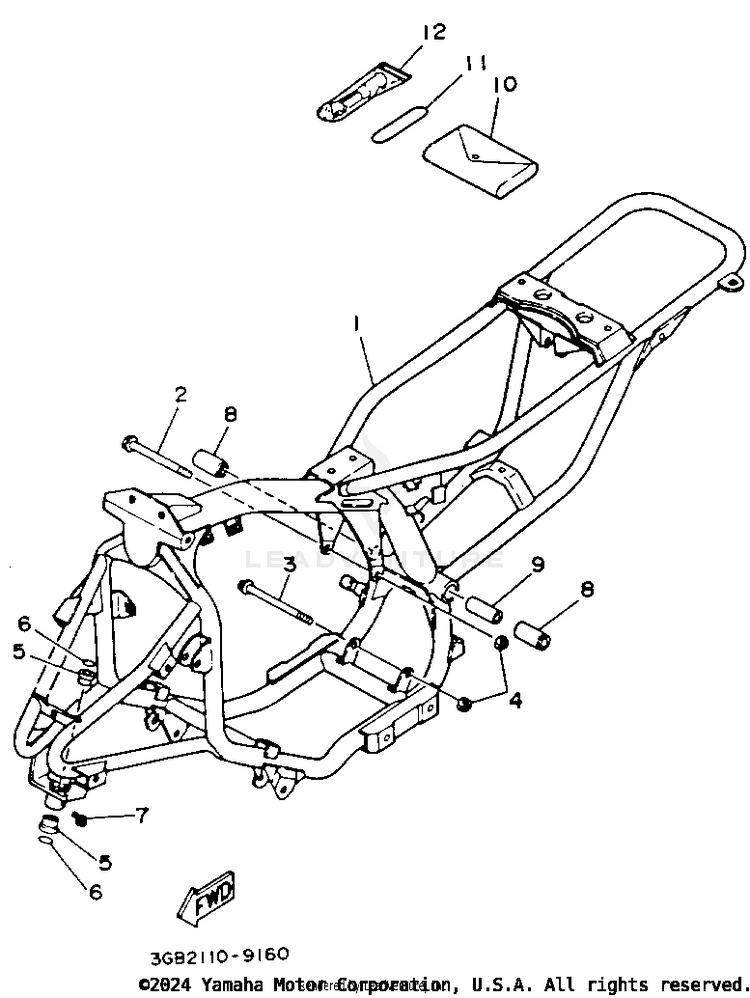

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13GB-21110-20-33FRAME COMP. | YAMAHA BLACK$387.99$322.19Usually ships in 7-10 business days
295817-08115-00

(replaces part #
90105-08114-00)

BOLT, FLANGE$9.49$7.402 In-Stock
395817-08120-00

(replaces part #
95811-08120-00)

BOLT, FLANGE$5.49$4.284 In-Stock
490185-08169-00

(replaces part #
95601-08200-00)

NUT, SELF-LOCKING$9.49$7.8910+ In-Stock
590381-15040-00BUSH, SOLID$32.99$25.7310+ In-Stock
693210-15566-00O-RING$8.49$6.6210+ In-Stock
793700-06M03-00NIPPLE, GREASE$8.49$7.6010+ In-Stock
83GB-22123-00-00BUSH 1$26.99$22.13Usually ships in 7-10 business days
93GB-22155-00-00PIPE$26.99$22.13Usually ships in 7-10 business days
103GB-28100-01-00

(replaces part #
3GB-28100-00-00)

TOOL KIT$22.99$18.85Usually ships in 7-10 business days
1193210-40407-00O-RING$4.00$3.60Usually ships in 7-10 business days
121NV-2811A-01-00

(replaces part #
1NV-2811A-00-00)

GAUGE, AIR$62.99$49.133 In-Stock
