1991 Yamaha YZ250 Electrical 1 OEM Parts Diagram

Submodel YZ250B1 - 1991

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL 1

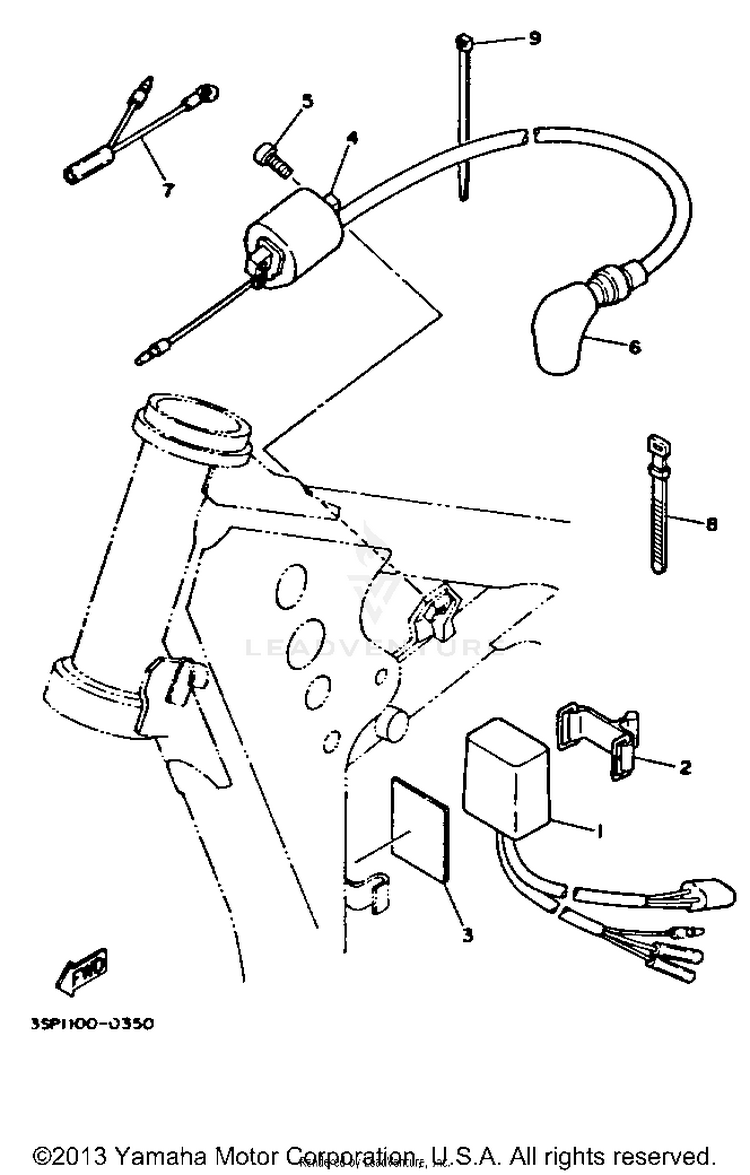

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14EW-85540-00-00

(replaces part #
3RB-85540-11-00)

C.D.I. UNIT ASSEMBLY$228.99$178.61Not Shipping
25H9-21376-00-00BAND, TOOL$6.99$6.29Not Shipping
33RB-85547-01-00DAMPER$9.49$8.54Not Shipping
43SR-82310-10-00IGNITION COIL ASSY$149.99$116.99Not Shipping
597D95-06016-00

(replaces part #
97011-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
68DG-82370-00-00

(replaces part #
81E-82370-20-00)

PLUG CAP ASSY | UR$53.99$42.1110+ In-Stock
75X1-82519-01-00WIRE, EARTH LEAD$16.99$13.93Not Shipping
825G-83936-01-00BAND, SWITCH CORD$5.49$4.283 In-Stock
91UA-82591-00-00

(replaces part #
12R-82591-00-00)

BAND$5.49$4.2810+ In-Stock
