1991 Yamaha YZ250 Handle Bar Cable OEM Parts Diagram

Submodel YZ250B1 - 1991

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HANDLE BAR CABLE

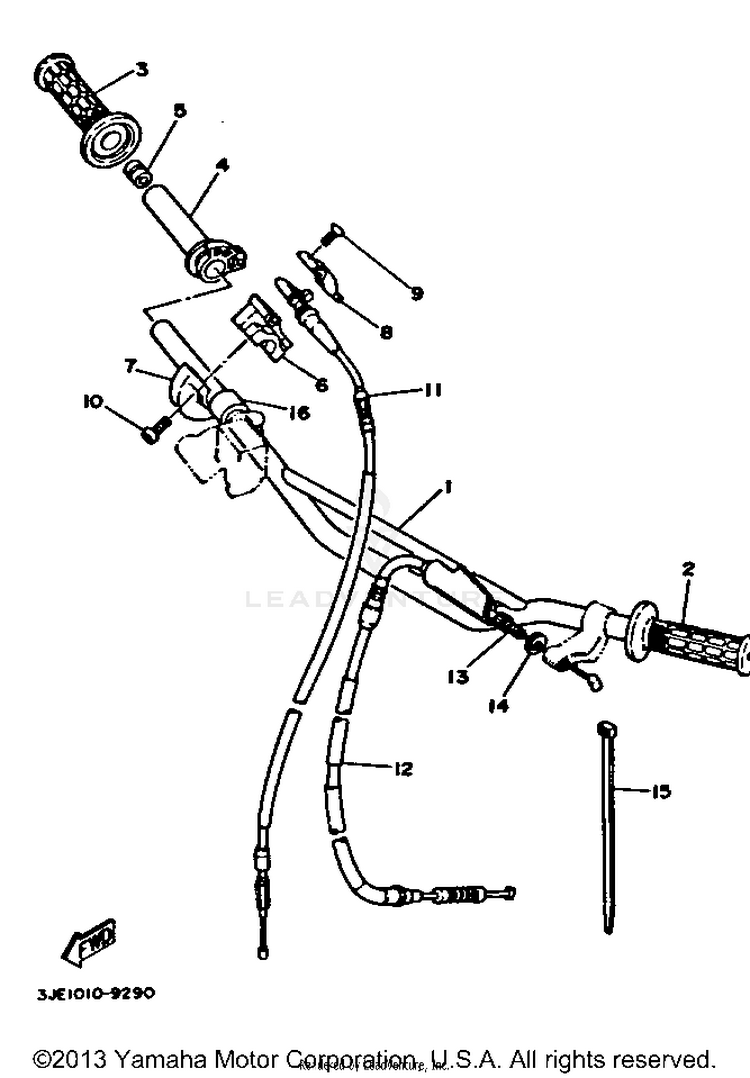

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13XJ-26111-00-00HANDLEBAR$76.99$60.05Not Shipping
21LX-26241-01-00GRIP (LEFT)$36.99$28.854 In-Stock
31LX-26242-01-00GRIP (RIGHT)$37.99$29.636 In-Stock
423X-26243-01-00

(replaces part #
23X-26243-00-00)

TUBE, THROTTLE GUIDE$16.49$12.8610+ In-Stock
590338-12192-00

(replaces part #
688-82535-00-00)

PLUG$9.49$7.4010+ In-Stock
623X-26281-01-00

(replaces part #
23X-26281-00-00)

CAP, GRIP UPPER$32.99$25.7310+ In-Stock
7431-26282-03-00

(replaces part #
431-26282-01-98)

CAP, GRIP UNDER | LOW GLOSS BLACK$42.99$33.5310+ In-Stock
85X2-2628H-01-00CAP, WIRE$30.99$24.1710+ In-Stock
998707-04012-00

(replaces part #
98706-04012-00)

SCREW, FLAT HEAD-$1.9410+ In-Stock
1098507-05016-00

(replaces part #
98506-05016-00)

SCREW, WITH WASHER$1.80$1.5510+ In-Stock
114EW-26311-00-00CABLE, THROTTLE 1$56.99$44.453 In-Stock
124EW-26335-00-00CABLE, CLUTCH$62.99$49.133 In-Stock
AFTERMARKET ALTERNATIVE
$20.49$20.4910+ In-Stock
1390123-08090-00BOLT$18.49$14.425 In-Stock
1490179-08401-00NUT-$3.67Not Shipping
1590464-15152-00

(replaces part #
90464-14117-00)

CLAMP$6.49$5.068 In-Stock
1690560-22281-00SPACER$15.49$12.082 In-Stock
