1991 Yamaha YZ250 Steering OEM Parts Diagram

Submodel YZ250B1 - 1991

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING

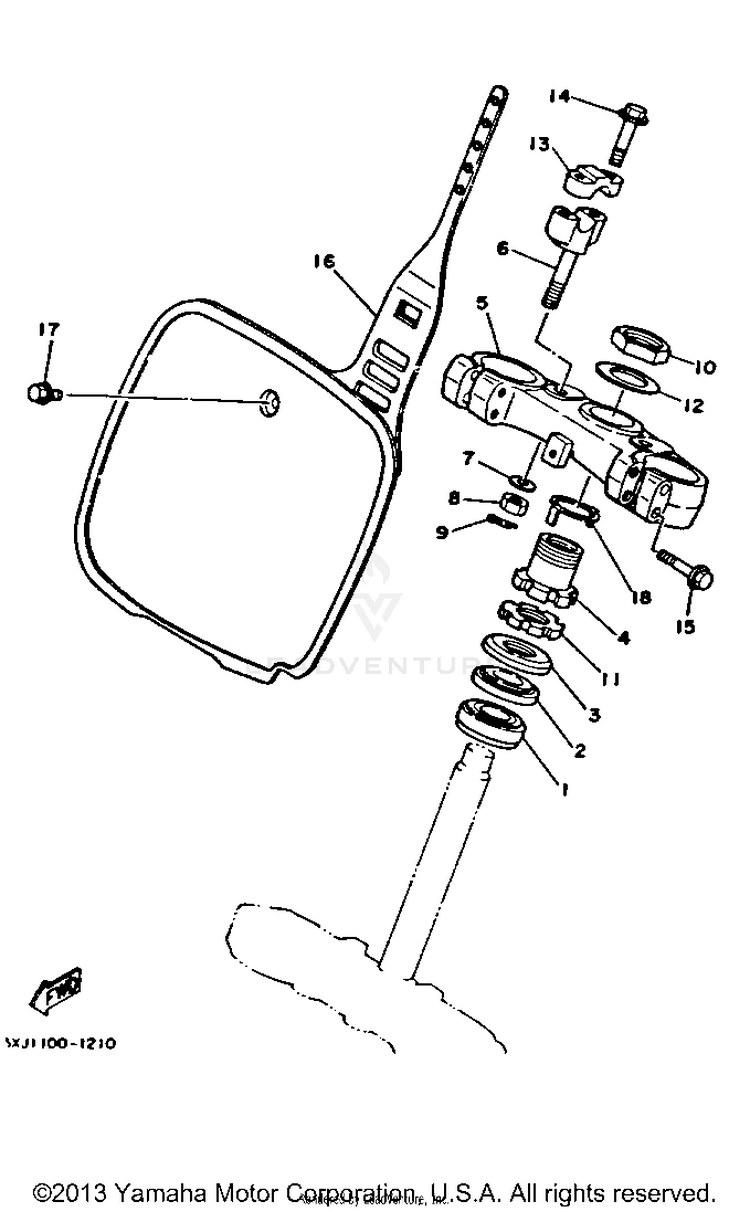

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
193332-00078-00

(replaces part #
93332-00067-00)

BEARING$70.99$55.9410+ In-Stock
AFTERMARKET ALTERNATIVE
$48.00$38.9910+ In-Stock
293332-00078-00

(replaces part #
93332-00068-00)

BEARING$70.99$55.9410+ In-Stock
AFTERMARKET ALTERNATIVE
$48.00$38.9910+ In-Stock
32HG-23416-00-00COVER, BALL RACE 2$35.99$29.51Usually ships in 7-10 business days
490179-28603-00NUT$50.99$39.77Usually ships in 7-10 business days
53XK-23435-00-00CROWN, HANDLE$158.99$124.01Usually ships in 7-10 business days
63SP-23442-00-00HOLDER, HANDLE LOWER$53.99$42.11Usually ships in 7-10 business days
792990-12200-00WASHER, PLAIN$9.49$7.406 In-Stock
895617-12100-00

(replaces part #
95611-12100-00)

NUT, U$4.16$3.58
991490-25020-00

(replaces part #
91401-25020-00)

PIN. COTTER$3.45$2.9710+ In-Stock
1090170-36394-00NUT$10.99$9.01Not Shipping
1190179-28602-00NUT$30.99$25.41Not Shipping
1290201-365M5-00WASHER, PLATE$8.99$8.09Not Shipping
133SP-23441-00-00HOLDER, HANDLE UPPER$30.99$24.1710+ In-Stock
1495024-08035-00

(replaces part #
95023-08035-00)

BOLT, FLANGE (SMALL HEAD)$9.49$7.4010+ In-Stock
1595024-08050-00

(replaces part #
95023-08050-00)

BOLT, FLANGE (SMALL HEAD)$9.49$7.4010+ In-Stock
163XJ-23485-01-00PLATE, NUMBER$53.99$42.111 In-Stock
1790119-06185-00BOLT, WITH WASHER$11.49$8.964 In-Stock
183SP-23418-00-00WASHER, SPECIAL$14.99$12.29Not Shipping
