1991 Yamaha YZ250 Shift Cam Fork OEM Parts Diagram

Submodel YZ250B1 - 1991

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SHIFT CAM FORK

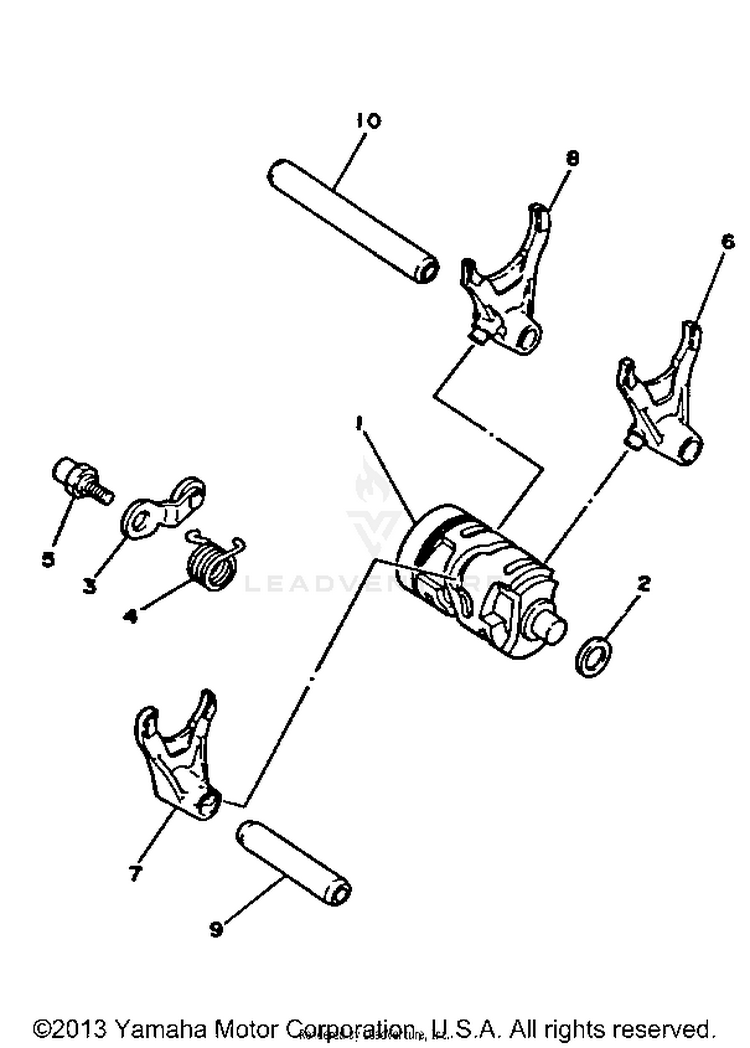

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13XK-18540-01-00

(replaces part #
3XK-18540-00-00)

SHIFT CAM ASSEMBLY$328.99$256.61Not Shipping
290201-12166-00WASHER, PLATE$10.49$8.184 In-Stock
33XK-18140-00-00STOPPER LEVER ASSY$25.99$20.272 In-Stock
490508-26561-00SPRING, TORSION$10.49$8.182 In-Stock
53XK-18177-00-00BOLT, STOPPER$20.99$17.21Not Shipping
62VM-18511-00-00FORK, SHIFT 1$73.99$57.71Not Shipping
72VM-18512-00-00FORK, SHIFT 2$128.99$100.61Usually ships in 7-10 business days
82VM-18513-00-00FORK, SHIFT 3$81.99$63.95Not Shipping
94EX-18531-00-00

(replaces part #
1LX-18531-00-00)

BAR, SHIFT FORK GUIDE 1$14.99$12.29Not Shipping
103XV-18535-00-00

(replaces part #
34K-18535-00-00)

BAR, SHIFT FORK GUIDE 2$18.99$15.57Usually ships in 7-10 business days
