1992 Yamaha WR500 Crankcase OEM Parts Diagram

Submodel WR500ZD - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE

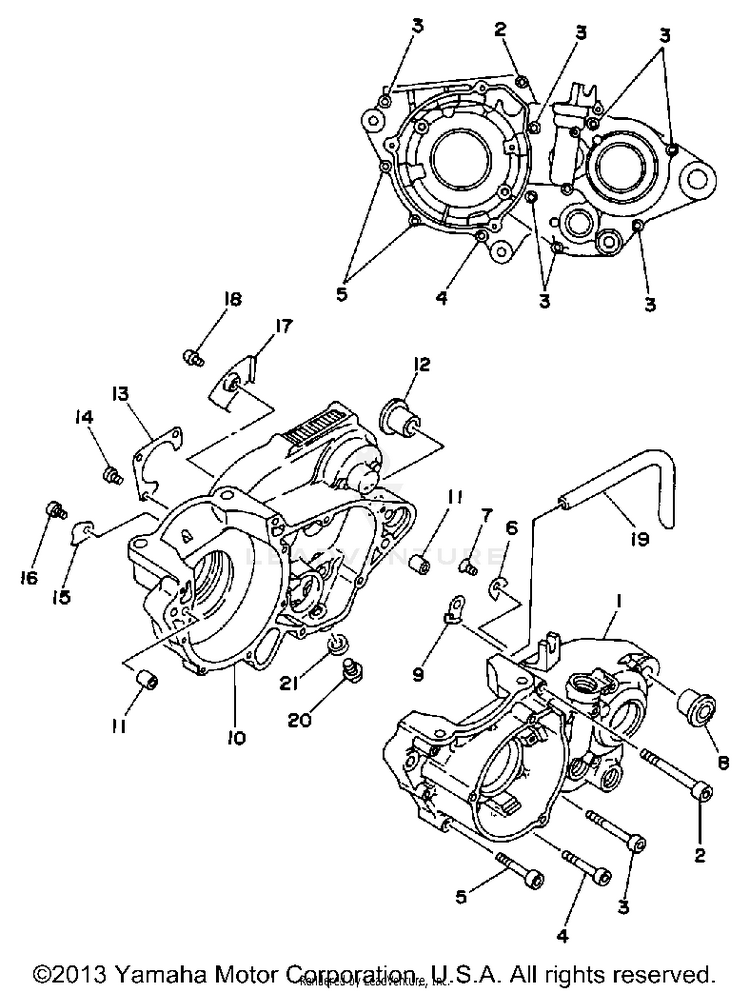

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14AA-W1511-00-00CRANKCASE 1$414.99$323.69Not Shipping
291317-06075-00

(replaces part #
91316-06075-00)

BOLT, HEXAGON SOCKET HEAD$6.49$5.066 In-Stock
391317-06060-00

(replaces part #
91316-06060-00)

BOLT$4.05$3.4810+ In-Stock
491317-06050-00

(replaces part #
91316-06050-00)

BOLT$4.20$3.6110+ In-Stock
591317-06045-00

(replaces part #
91316-06045-00)

BOLT$5.49$4.2810+ In-Stock
63SP-15381-00-00PLATE, BEARING COVER$29.99$24.59Not Shipping
798707-06012-00

(replaces part #
98701-06012-00)

SCREW, FLAT HEAD$9.49$7.4010+ In-Stock
890387-160H4-00COLLAR$17.49$14.34Not Shipping
93R4-26393-00-00

(replaces part #
23X-26393-00-00)

HOLDER$109.99$85.795 In-Stock
104AA-15121-00-00CRANKCASE 2$419.99$327.59Usually ships in 7-10 business days
1199530-12016-00

(replaces part #
99510-12016-00)

PIN, DOWEL$4.89$4.2110+ In-Stock
1290387-160H4-00COLLAR$17.49$14.34Not Shipping
1323X-15381-00-00PLATE, BEARING COVER$19.99$16.39Not Shipping
1497885-06012-00

(replaces part #
98580-06012-00)

SCREW, PAN HEAD$3.45$2.9710+ In-Stock
154V4-15118-00-00HOLDER$32.99$25.733 In-Stock
1698580-06010-00SCREW, PAN HEAD (92503-06010-00$9.49$7.409 In-Stock
173R4-15113-00-00PLATE$11.49$9.42Not Shipping
1897885-06012-00

(replaces part #
98580-06012-00)

SCREW, PAN HEAD$3.45$2.9710+ In-Stock
1990445-084J0-00

(replaces part #
90445-086A8-00)

PIPE$20.99$16.3710+ In-Stock
2090340-12097-00PLUG, STRAIGHT SCREW$3.35$2.8810+ In-Stock
2190430-12207-00GASKET$8.49$6.6210+ In-Stock
