1992 Yamaha WR500 Rear Master Cylinder OEM Parts Diagram

Submodel WR500ZD - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

REAR MASTER CYLINDER

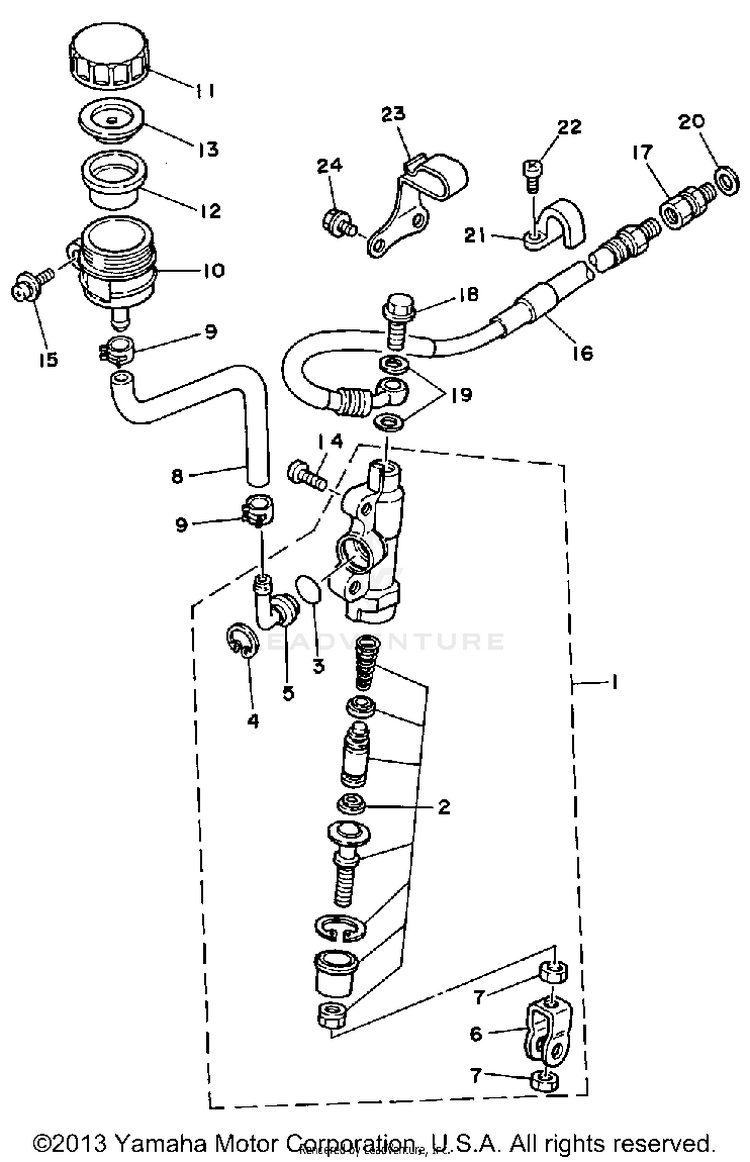

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13SP-2583V-00-00RR. MASTER CYLINDER ASSY.$220.31$171.84Not Shipping
21FK-W0042-50-00CYLINDER KIT, MASTER$76.99$60.054 In-Stock
AFTERMARKET ALTERNATIVE
$29.55$28.0710+ In-Stock
393210-15566-00

(replaces part #
93210-15620-00)

O-RING$8.49$6.6210+ In-Stock
42VN-25866-00-00CIRCLIP$7.49$5.843 In-Stock
52VN-2582A-50-00JOINT$22.99$17.934 In-Stock
63SP-27222-00-00JOINT$25.99$20.273 In-Stock
795333-08600-00NUT$3.80$3.4710+ In-Stock
83JD-25895-00-00HOSE, RESERVOIR$22.99$18.85Not Shipping
990467-11044-00CLIP$9.49$7.4010+ In-Stock
102VN-25894-00-00TANK, RESERVOIR$22.99$17.933 In-Stock
113XP-25852-50-00

(replaces part #
2VN-25852-50-00)

CAP, RESERVOIR$24.99$19.494 In-Stock
122VN-25854-00-00DIAPHRAGM, RESERVOIR$26.99$21.054 In-Stock
132VN-25855-00-00BUSH, DIAPHRAGM$11.99$9.3510+ In-Stock
1492014-06016-00

(replaces part #
92013-06016-00)

BOLT, BUTTON HEAD$9.49$7.4010+ In-Stock
1590159-06056-00SCREW, WITH WASHER$9.49$7.406 In-Stock
1699999-03040-00

(replaces part #
3SP-25873-00-00)

HOSE, BRAKE 2$163.99$127.91Usually ships in 7-10 business days
173LC-25885-00-00JOINT$31.99$24.954 In-Stock
1890401-10159-00

(replaces part #
90401-10034-00)

BOLT, UNION$12.49$9.7410+ In-Stock
1990201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
2090201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
212VM-25876-00-00HOLDER, BRAKE HOSE 2$19.99$15.599 In-Stock
2297780-50610-00

(replaces part #
97780-50110-00)

SCREW, TAPPING$9.49$7.4010+ In-Stock
2390462-12195-00CLAMP$28.99$23.77Usually ships in 7-10 business days
2495024-06008-00

(replaces part #
95023-06008-00)

BOLT, FLANGE$10.49$8.183 In-Stock
