1992 Yamaha WR500 Rear Shocks OEM Parts Diagram

Submodel WR500ZD - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

REAR SHOCKS

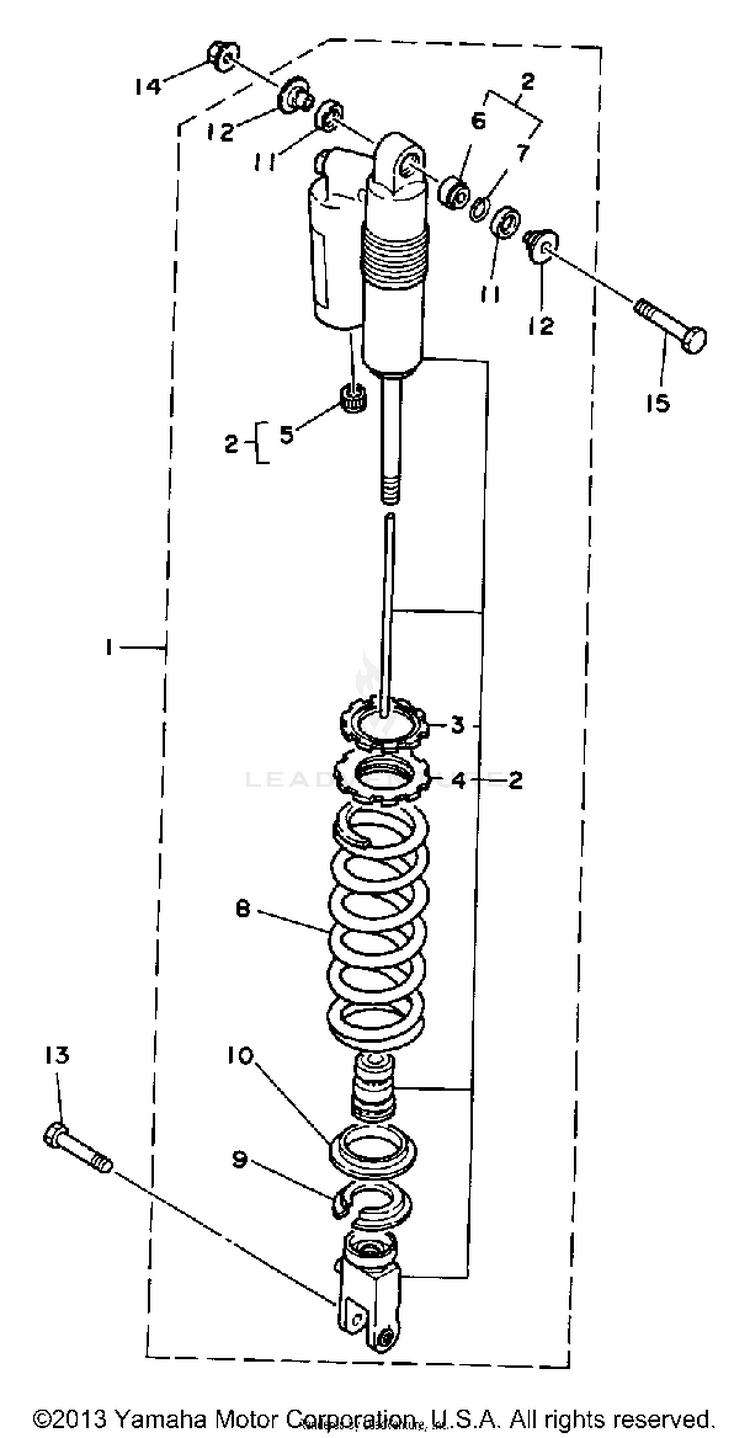

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14AA-22210-00-00SHK/ABS ASSEMBLY, REAR$807.99$630.23Usually ships in 7-10 business days
24AA-22201-00-00DAMPER, SUB ASSEMBLY$1,017.99$827.12Usually ships in 7-10 business days
33SP-22234-00-00GUIDE, SPRING 3$47.99$37.436 In-Stock
43SP-22213-00-00SEAT, SPRING UPPER$50.99$39.772 In-Stock
524M-23184-00-00CAP, AIR VALVE$8.99$8.09Not Shipping
63JD-22216-00-00BUSH, REAR SHOCK ABSORBER$91.99$71.75Not Shipping
743M-22274-00-00RING, STOP$3.05$2.74Not Shipping
84AA-22212-00-00SPRING. (K=4.8) (K=4.8)$126.99$99.05Not Shipping
93JD-22214-00-00GUIDE, SPRING 1$17.99$14.75Usually ships in 7-10 business days
103JD-22224-00-00GUIDE, SPRING 2$18.49$15.16Usually ships in 7-10 business days
113JD-22475-00-00SEAL, DUST$26.99$21.056 In-Stock
123XJ-22253-00-00COLLAR, DISTANCE$17.49$14.34Not Shipping
1390105-10614-00BOLT, WASHER BASED$13.49$10.526 In-Stock
1495607-10200-00

(replaces part #
95611-10200-00)

NUT, U FLANGE$4.15$3.5710+ In-Stock
153SP-22241-00-00BOLT 1$7.99$6.23Not Shipping
