1992 Yamaha WR500 Cylinder OEM Parts Diagram

Submodel WR500ZD - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CYLINDER

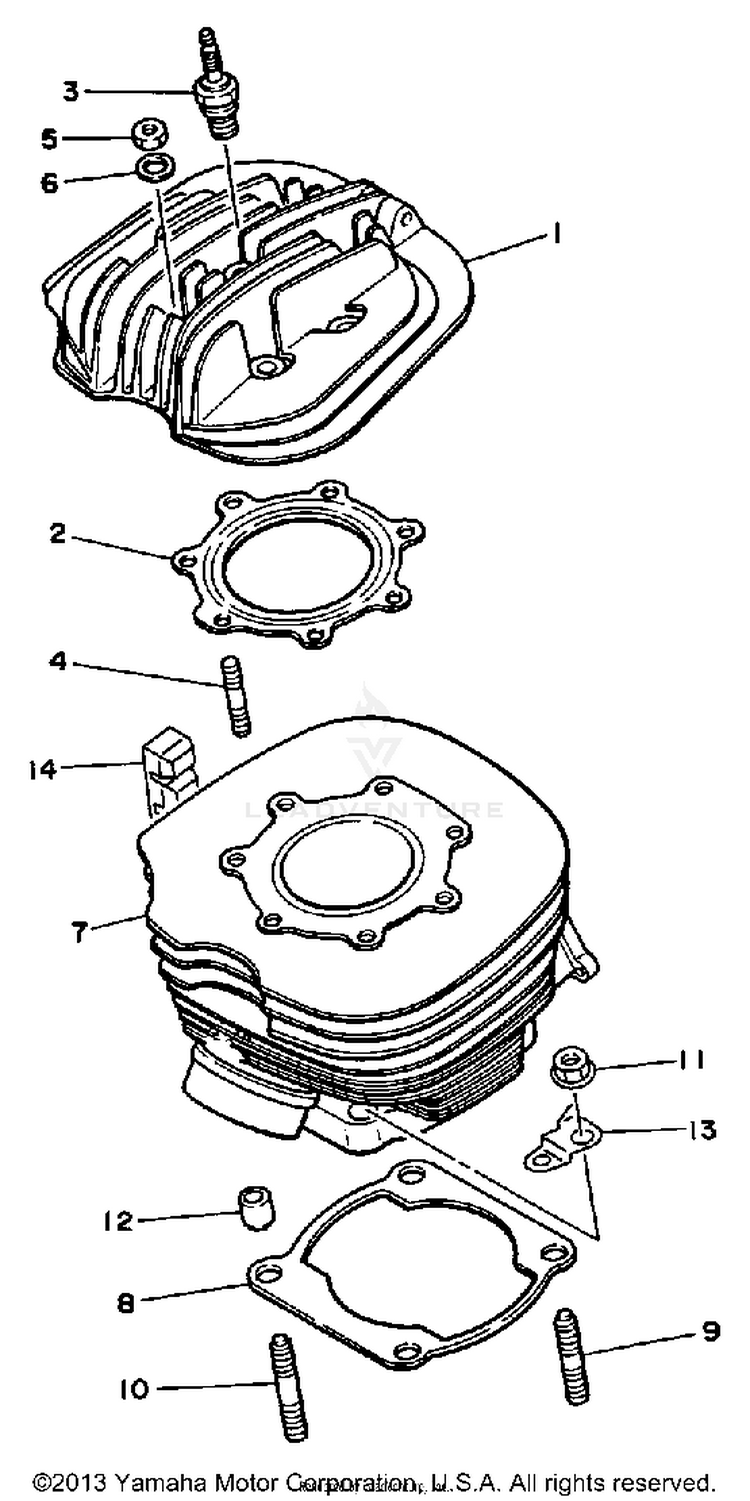

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14AA-11111-00-00HEAD, CYLINDER 1$197.99$154.43Usually ships in 7-10 business days
240T-11181-00-00GASKET, CYLINDER HEAD 1$39.99$32.79Not Shipping
3B8E-G0000-00-00

(replaces part #
NGK-B8EG0-00-00)

B8EG NGK SPLUG 4PK$4.95$4.766 In-Stock
490116-08394-00BOLT, STUD$5.49$4.2810+ In-Stock
590179-08491-00NUT$2.80$2.4110+ In-Stock
690201-08649-00WASHER, PLATE$10.49$8.1810+ In-Stock
74AA-11311-00-00CYLINDER 1$797.99$622.43Not Shipping
81LV-11351-10-00GASKET, CYLINDER$20.99$17.21Not Shipping
990116-12315-00BOLT, STUD$8.49$7.64Not Shipping
1090116-12316-00BOLT, STUD$8.49$7.64Not Shipping
1190179-12588-00

(replaces part #
95701-12500-00)

NUT, FLANGE$8.49$6.6210+ In-Stock
1291815-16017-00

(replaces part #
91810-17016-00)

PIN, DOWEL$9.49$7.404 In-Stock
134AA-14619-00-00HOOK, SPRING$6.99$6.29Not Shipping
143R6-11162-00-00ABSORBER 2$22.99$17.9310+ In-Stock
