1992 Yamaha YZ80 Clutch OEM Parts Diagram

Submodel YZ80D - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CLUTCH

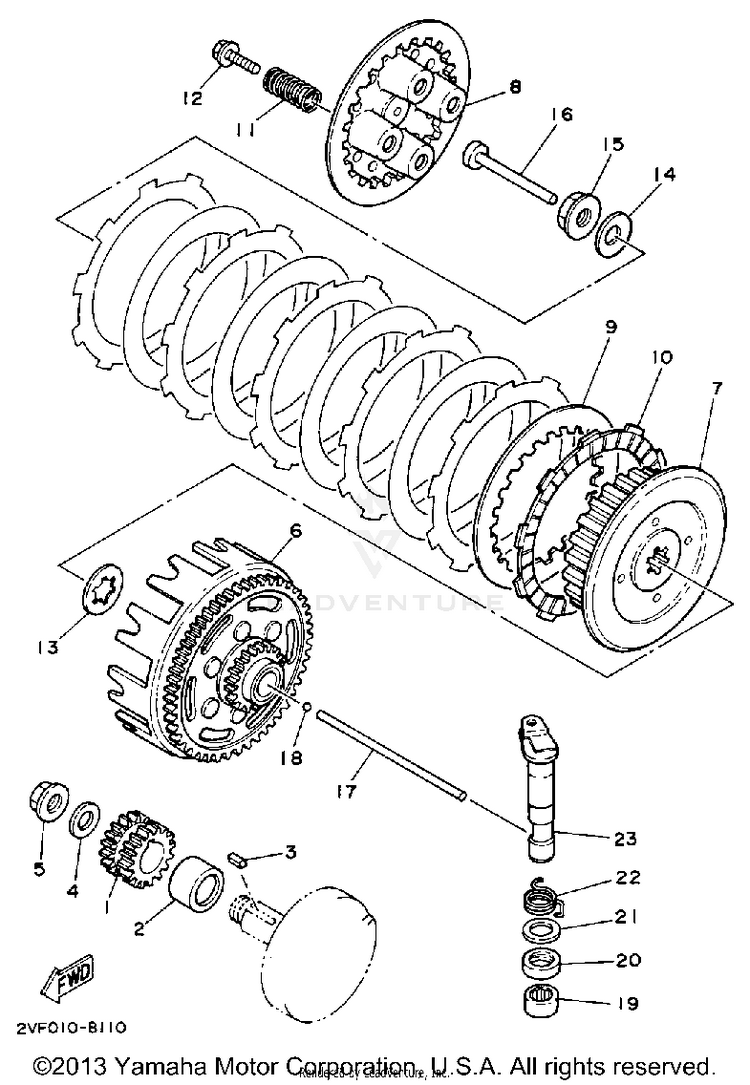

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11LR-16111-00-00GEAR, PRI DRIVE$76.99$60.05Usually ships in 7-10 business days
290387-202F0-00COLLAR$20.99$17.21Not Shipping
390282-05001-00KEY, STRAIGHT (5MMX16MM)$10.49$8.182 In-Stock
490208-12800-00

(replaces part #
90208-12015-00)

WASHER, CONICAL SPRING$0.75$0.68Not Shipping
590179-12335-00NUT, SPECL SHAPE$10.49$8.183 In-Stock
61LR-16150-01-00

(replaces part #
1LR-16150-00-00)

PRI DRUM GEAR$244.99$191.09Usually ships in 7-10 business days
71LR-16371-00-00BOSS, CLUTCH$72.99$56.93Not Shipping
81LR-16351-00-00PLATE, PRESSURE 1$66.99$52.25Usually ships in 7-10 business days
9257-16324-10-00

(replaces part #
257-16324-00-00)

PLATE, CLUTCH 1$17.49$13.6410+ In-Stock
103XP-16321-00-00

(replaces part #
21V-16321-00-00)

PLATE, FRICTION$21.99$17.1510+ In-Stock
1190501-204A0-00SPRING, COMPRESSION$9.49$7.4010+ In-Stock
1290159-05011-00SCREW, WITH WASHER$3.80$3.278 In-Stock
134V0-16154-00-00PLATE, THRUST 1$34.99$28.69Usually ships in 7-10 business days
1490208-12800-00

(replaces part #
90208-12015-00)

WASHER, CONICAL SPRING$0.75$0.68Not Shipping
1590179-12659-00

(replaces part #
90179-12244-00)

NUT$9.49$7.4010+ In-Stock
16137-16356-00-00ROD, PUSH 1$34.99$28.69Usually ships in 7-10 business days
172X3-16357-00-00ROD, PUSH 2$22.99$17.935 In-Stock
1893503-16003-00

(replaces part #
93503-16010-00)

BALL$2.90$2.4910+ In-Stock
1993315-21429-00BEARING$35.99$28.076 In-Stock
2093109-14021-00OIL SEAL$14.49$11.3010+ In-Stock
2190201-14411-00WASHER, PLATE$9.49$7.404 In-Stock
2290508-18463-00SPRING, TORSION$8.99$8.09Not Shipping
2358T-16382-00-00AXLE, PUSH LEVER$65.99$51.47Usually ships in 7-10 business days
