1992 Yamaha YZ80 Frame OEM Parts Diagram

Submodel YZ80D - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRAME

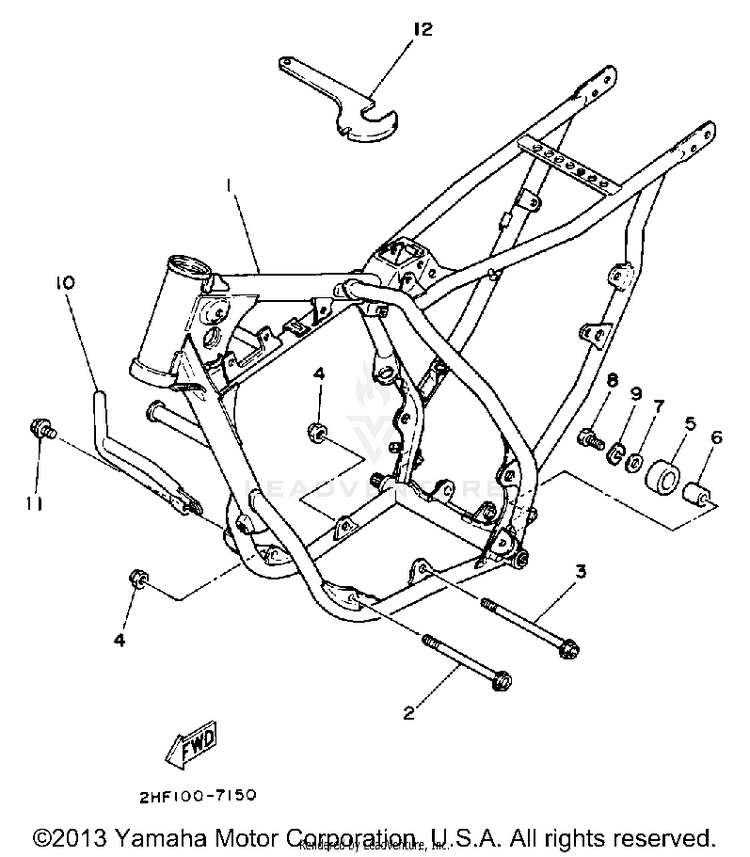

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12HF-21110-00-UJFRAME | RADICAL WHITE$636.99$541.94Usually ships in 7-10 business days
295817-08125-00

(replaces part #
95811-08125-00)

BOLT, FLANGE$10.49$8.185 In-Stock
395817-08135-00

(replaces part #
95811-08135-00)

BOLT, FLANGE$4.75$4.08Not Shipping
490185-08169-00

(replaces part #
95601-08200-00)

NUT, SELF-LOCKING$9.49$7.8910+ In-Stock
530X-22178-00-00TENSIONER$38.99$30.4110+ In-Stock
64V4-22184-00-00BUSH$4.80$4.1310+ In-Stock
790201-067A0-00WASHER, PLATE$9.49$7.407 In-Stock
897D95-06016-00

(replaces part #
97313-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
992907-06700-00

(replaces part #
92901-06700-00)

WASHER,WAVE$2.00$1.7210+ In-Stock
101LR-2174F-00-00GUARD, RADIATOR$77.99$60.83Not Shipping
1195024-08012-00

(replaces part #
95023-08012-00)

BOLT, FLANGE (SMALL HEAD)$9.49$8.544 In-Stock
1210V-28135-00-00SPANNER, SPECIAL$41.99$34.43Not Shipping
