1992 Yamaha YZ80 Crankcase Cover 1 OEM Parts Diagram

Submodel YZ80D - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE COVER 1

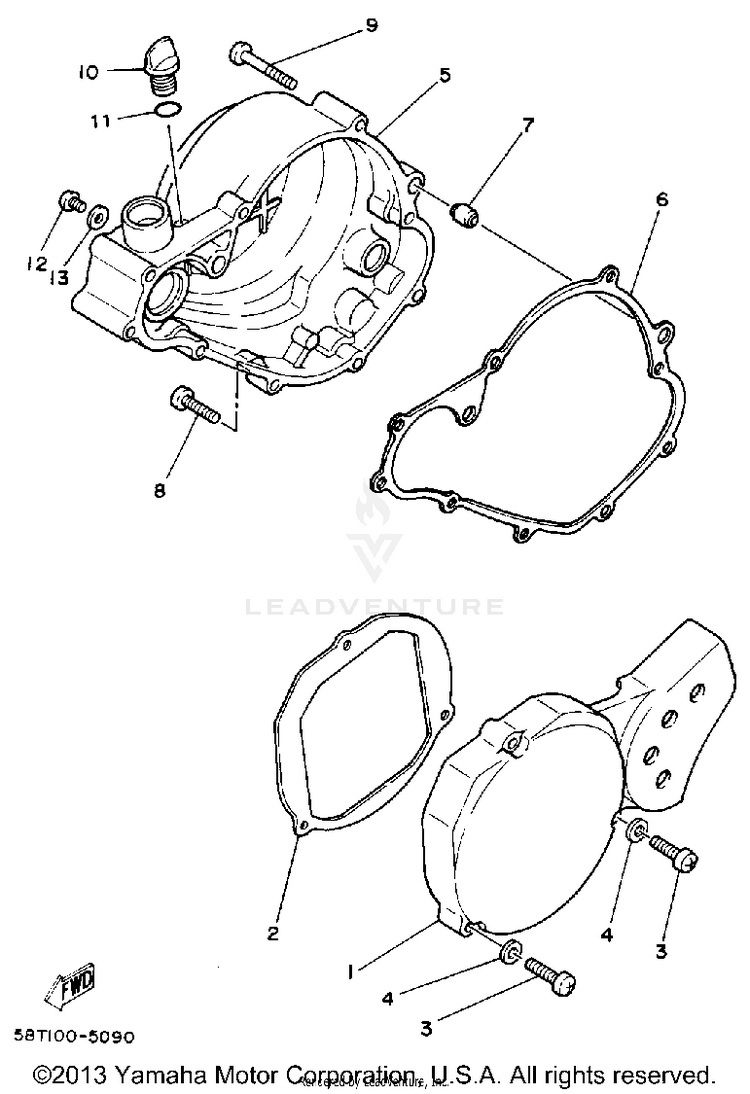

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12VE-15411-00-00COVER, CRANKCASE 1$155.99$121.67Not Shipping
222W-15451-10-00GASKET, CRANKCASE COVER (4V0-15$12.49$10.24Not Shipping
398517-06030-00

(replaces part #
98516-06030-00)

SCREW, PAN HEAD$3.45$2.97
492907-06600-00

(replaces part #
92906-06600-00)

WASHER, PLATE$1.00$0.9910+ In-Stock
52VE-15421-00-00COVER, CRANKCASE 2$164.99$128.69Usually ships in 7-10 business days
65X2-15462-10-00

(replaces part #
5X2-15462-00-00)

GASKET,CRCS CVR 3$36.99$30.33Usually ships in 7-10 business days
799530-10114-00

(replaces part #
99530-10014-00)

PIN, DOWEL$2.65$2.4810+ In-Stock
898517-06025-00

(replaces part #
98506-06025-00)

SCREW, PAN HEAD$4.05$3.4810+ In-Stock
998507-06040-00

(replaces part #
98506-06040-00)

SCREW, PAN HEAD$3.22$2.779 In-Stock
104J2-15363-10-00

(replaces part #
4J2-15363-00-00)

PLUG, OIL$5.49$4.289 In-Stock
1193210-14579-00

(replaces part #
93210-14104-00)

O-RING$7.99$6.238 In-Stock
1298517-06008-00

(replaces part #
98506-06008-00)

SCREW$9.49$7.404 In-Stock
1390430-06016-00GASKET$9.49$7.406 In-Stock
