1992 Yamaha YZ80 Generator OEM Parts Diagram

Submodel YZ80D - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

GENERATOR

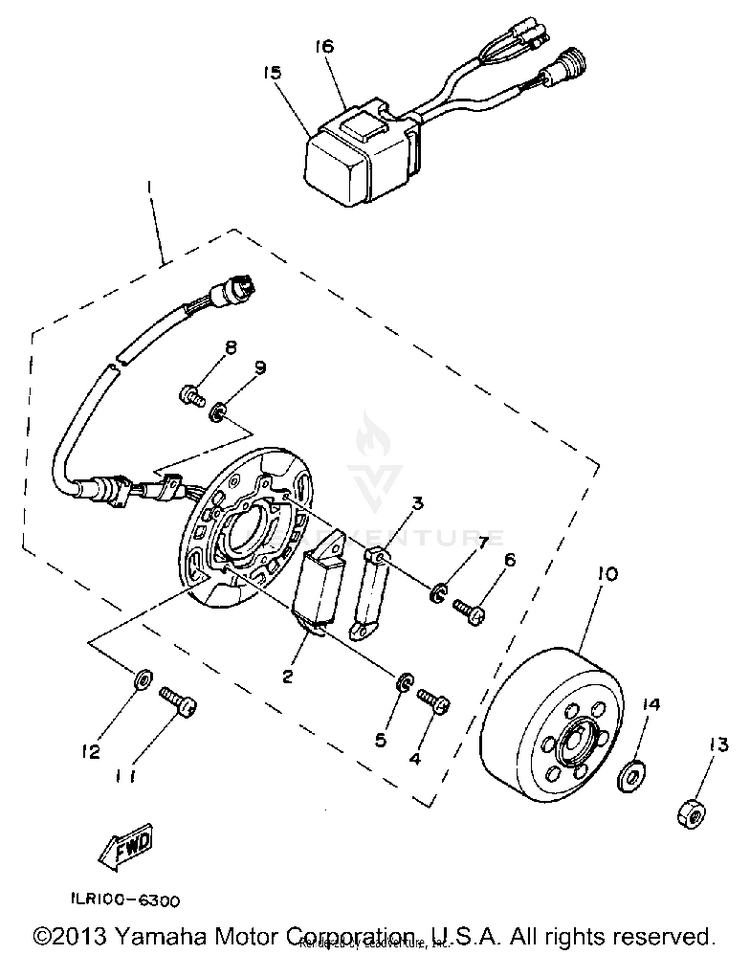

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11LR-85510-20-00STATOR ASSEMBLY$410.99$320.57Usually ships in 7-10 business days
239K-85512-20-00COIL SOURCE 2$224.99$175.49Usually ships in 7-10 business days
339K-85580-20-00COIL, PULSER$134.99$105.29Usually ships in 7-10 business days
498517-04025-00

(replaces part #
98511-04025-00)

SCREW, PAN HEAD$3.30$2.8410+ In-Stock
592990-04100-00

(replaces part #
92901-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
698580-04014-00

(replaces part #
98503-04014-00)

SCREW, PAN HEAD$3.30$2.8410+ In-Stock
792990-04100-00

(replaces part #
92901-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
898580-04008-00SCREW, PAN HEAD$6.49$5.0610+ In-Stock
992990-04100-00

(replaces part #
92901-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
1039K-85550-20-00ROTOR ASSEMBLY$245.99$191.87Not Shipping
1198580-06016-00

(replaces part #
98502-06016-00)

SCREW, PAN HEAD$3.45$2.972 In-Stock
1292990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
1395314-10600-00

(replaces part #
95311-10600-00)

NUT$2.55$2.19
1490201-10774-00WASHER, PLATE$10.49$8.1810+ In-Stock
151LR-85540-20-00CDI UNIT ASSEMBLY$239.79$187.04Not Shipping
162A7-85546-00-00BAND$25.99$21.31Usually ships in 7-10 business days
