1993 Yamaha BADGER 80 Front Suspension - Wheel OEM Parts Diagram

Submodel BADGER - YFM80E - 1993

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT SUSPENSION - WHEEL

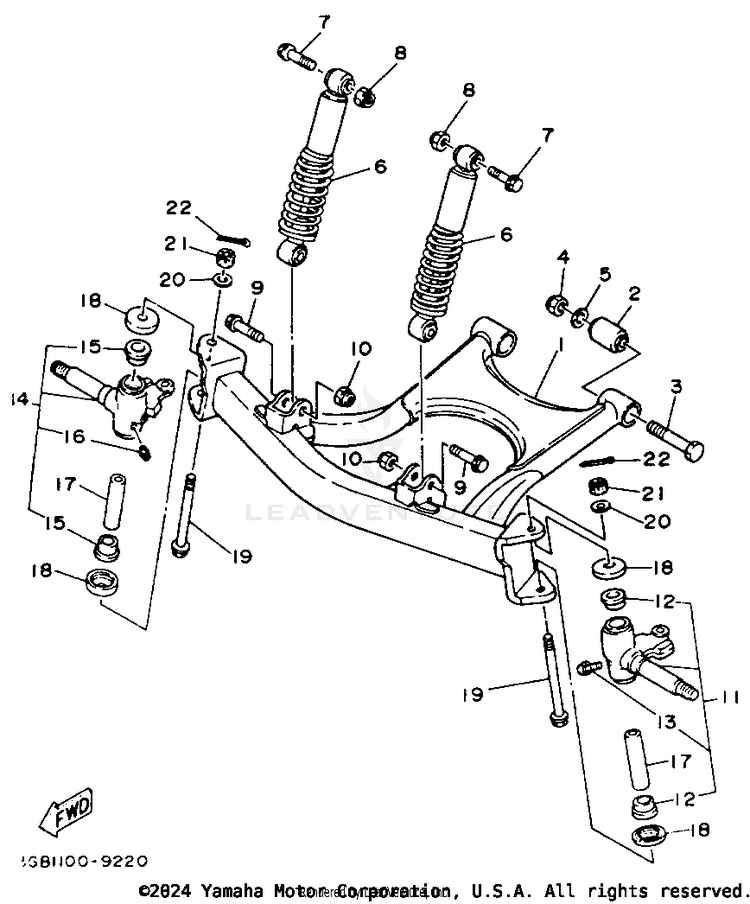

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13GB-23570-00-33FRONT LOWER ARM COMP. | YAMAHA BLACK$354.99$276.89Usually ships in 7-10 business days
2307-22123-00-00BUSH 1$22.99$17.938 In-Stock
390101-12498-00BOLT$16.49$13.52Usually ships in 7-10 business days
490185-12134-00

(replaces part #
90185-12046-00)

NUT, SELF-LOCKING$13.49$10.523 In-Stock
590201-124E4-00WASHER, PLATE$10.49$8.1810+ In-Stock
62HX-23350-00-00SHOCK ABSORBER ASSEMBLY$159.99$124.79Usually ships in 7-10 business days
790105-10669-00

(replaces part #
90105-10561-00)

BOLT, FLANGE$10.49$8.60Usually ships in 7-10 business days
890185-10060-00NUT, SELF-LOCKING$8.49$6.6210+ In-Stock
990105-12460-00BOLT, FLANGE$9.49$8.54Usually ships in 7-10 business days
1090185-12134-00

(replaces part #
90185-12046-00)

NUT, SELF-LOCKING$13.49$10.523 In-Stock
113GB-23501-10-00STEERING KNUCKLE ASSY (LEFT)$150.99$118.03Usually ships in 7-10 business days
1290381-17067-00BUSH, SOLID$12.49$9.7410+ In-Stock
1393700-06M03-00NIPPLE, GREASE$8.49$7.6010+ In-Stock
143GB-23502-10-00STEERING KNUCKLE ASSY (RIGHT)$150.99$117.77Not Shipping
1590381-17067-00BUSH, SOLID$12.49$9.7410+ In-Stock
1693700-06M03-00NIPPLE, GREASE$8.49$7.6010+ In-Stock
173GB-23448-00-00SPACER$31.99$24.954 In-Stock
183JN-23517-00-00COVER, THRUST 1$17.99$14.0310+ In-Stock
1990109-104A8-00BOLT$8.49$7.64Usually ships in 7-10 business days
2090201-08759-00WASHER, PLATE$3.50$3.0110+ In-Stock
2190171-10004-00NUT, CASTLE$8.49$6.628 In-Stock
2291490-20025-00

(replaces part #
91490-20020-00)

PIN, COTTER$1.99$1.7110+ In-Stock
