1993 Yamaha BADGER 80 Oil Pump OEM Parts Diagram

Submodel BADGER - YFM80E - 1993

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

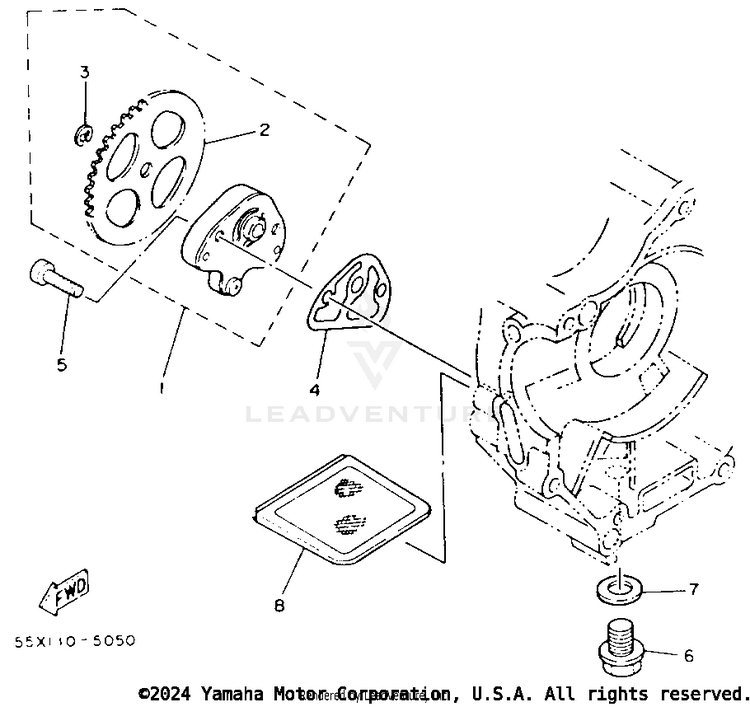

OIL PUMP

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12FJ-13300-00-00OIL PUMP ASSY$138.99$108.41Usually ships in 7-10 business days
246J-13325-00-00GEAR, PUMP DRIVEN$21.99$18.03Usually ships in 7-10 business days
399080-05600-00CIRCLIP$9.49$7.402 In-Stock
422F-13329-01-00

(replaces part #
22F-13329-00-00)

GASKET, PUMP COVER$8.49$6.623 In-Stock
590155-06007-00SCREW, FLAT FILLISTER$0.50$0.45Not Shipping
690340-12097-00PLUG, STRAIGHT SCREW$3.35$2.8810+ In-Stock
7812-11198-00-00GASKET$7.49$5.8410+ In-Stock
822F-13411-01-00

(replaces part #
22F-13411-00-00)

STRAINER, OIL$32.99$25.734 In-Stock
