1993 Yamaha BADGER 80 Fuel Tank OEM Parts Diagram

Submodel BADGER - YFM80E - 1993

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FUEL TANK

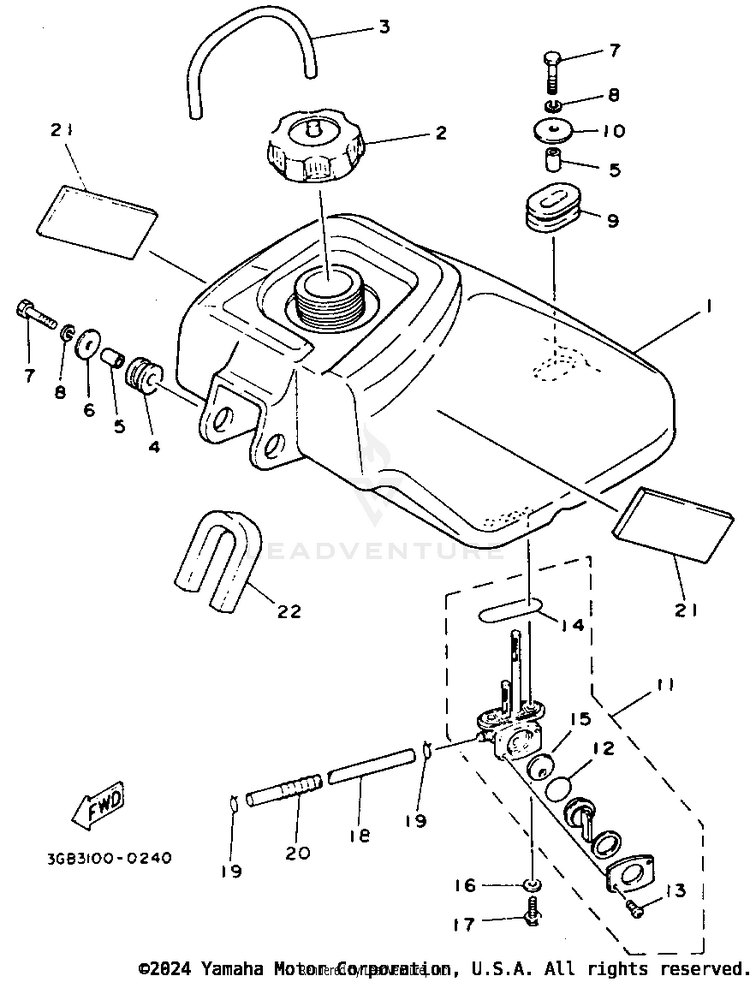

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12HX-24110-00-00FUEL TANK COMP.$159.99$124.79Not Shipping
22FJ-24610-20-00

(replaces part #
2FJ-24610-00-00)

CAP ASSY$74.99$58.497 In-Stock
390445-090F6-00

(replaces part #
90445-09111-00)

HOSE (L675)$34.99$27.296 In-Stock
490480-18290-00GROMMET$9.49$8.0510+ In-Stock
590387-07598-00COLLAR$6.49$5.0610+ In-Stock
690201-06072-00WASHER, PLATE$10.49$8.1810+ In-Stock
797017-06030-00

(replaces part #
97021-06030-00)

BOLT,HEXAGON$3.90$3.3510+ In-Stock
892995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
990480-01400-00GROMMET$14.49$11.3010+ In-Stock
1090201-06090-00

(replaces part #
90201-060L5-00)

WASHER, PLATE$6.49$5.0610+ In-Stock
1155X-24500-02-00

(replaces part #
55X-24500-01-00)

FUEL COCK ASSY 1$46.99$36.6510+ In-Stock
123AJ-24534-01-00

(replaces part #
3AJ-24534-00-00)

SEAL, COCK$11.99$9.3510+ In-Stock
1398580-03008-00SCREW, PAN HEAD$3.85$3.3110+ In-Stock
144X8-24512-00-00O-RING$9.49$7.4010+ In-Stock
153AC-24523-00-00

(replaces part #
3AJ-24523-00-00)

VALVE PACKING$14.49$11.3010+ In-Stock
1690202-05187-00WASHER, PLATE$1.70$1.4610+ In-Stock
1790149-06011-00SCREW$2.05$1.7610+ In-Stock
1890445-10752-00

(replaces part #
90445-10638-00)

HOSE (L110)$5.49$4.2810+ In-Stock
1990467-090A2-00

(replaces part #
90467-09006-00)

CLIP$4.75$4.0810+ In-Stock
2090504-06030-00SPRING, COMPRESSION$10.49$8.182 In-Stock
215Y1-82122-00-00

(replaces part #
5X2-24183-00-00)

SEAT, BATTERY$8.49$6.627 In-Stock
2288T-77198-00-00DAMPER 1$3.25$2.92Not Shipping
