HANDLE SWITCH - LEVER

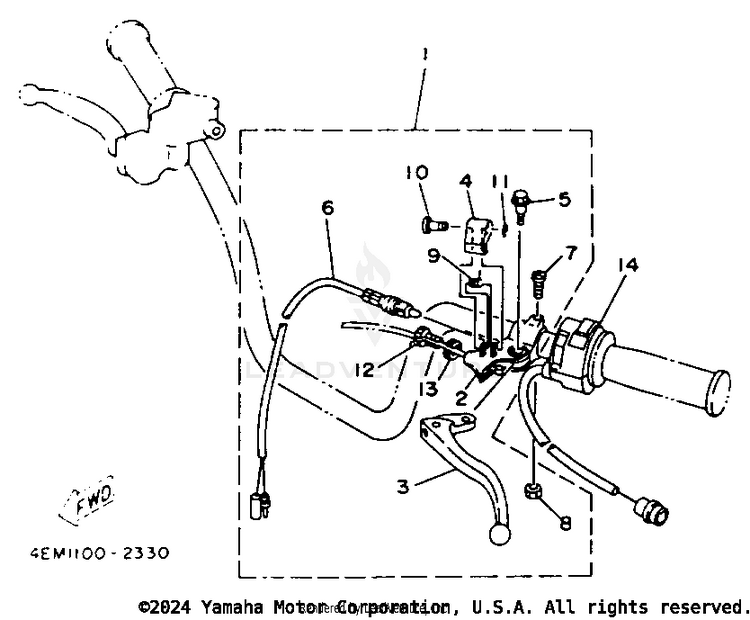

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13GB-82910-21-00

(replaces part #
3GB-82910-20-00)

LEVER HOLDER ASSY (L$133.99$104.51Usually ships in 7-10 business days
23FA-82911-01-00

(replaces part #
3FA-82911-00-00)

HOLDER, LEVER 1$43.99$36.07Usually ships in 7-10 business days
31NV-83912-02-00

(replaces part #
1NV-83912-00-00)

LEVER 1$31.99$24.954 In-Stock
43FA-83965-00-00LEVER, LOCK$32.99$27.05Usually ships in 7-10 business days
590109-06799-00BOLT$5.49$4.288 In-Stock
61YW-83980-00-00FRONT STOP SWITCH ASSY$76.99$60.052 In-Stock
798517-06020-00

(replaces part #
98516-06020-00)

SCREW,PAN HEAD$2.35$2.0210+ In-Stock
895617-06100-00

(replaces part #
95616-06100-00)

NUT, U$2.90$2.4910+ In-Stock
93FA-83966-00-00SPRING, RETURN$6.49$5.84Usually ships in 7-10 business days
103FA-83967-00-00PIN, LOCK 1$10.99$9.01Usually ships in 7-10 business days
113FA-26466-00-00RING, SNAP$8.49$7.64Usually ships in 7-10 business days
1290123-08002-00

(replaces part #
90123-08046-00)

BOLT$10.49$8.1810+ In-Stock
1390179-08030-00

(replaces part #
90179-08148-00)

NUT$10.49$8.1810+ In-Stock
142FJ-83975-00-00SWITCH, HANDLE 2$122.99$95.93Usually ships in 7-10 business days
