1993 Yamaha TDM850 Handlebar Cable OEM Parts Diagram

Submodel TDM850 - TDM850EC - 1993

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HANDLEBAR CABLE

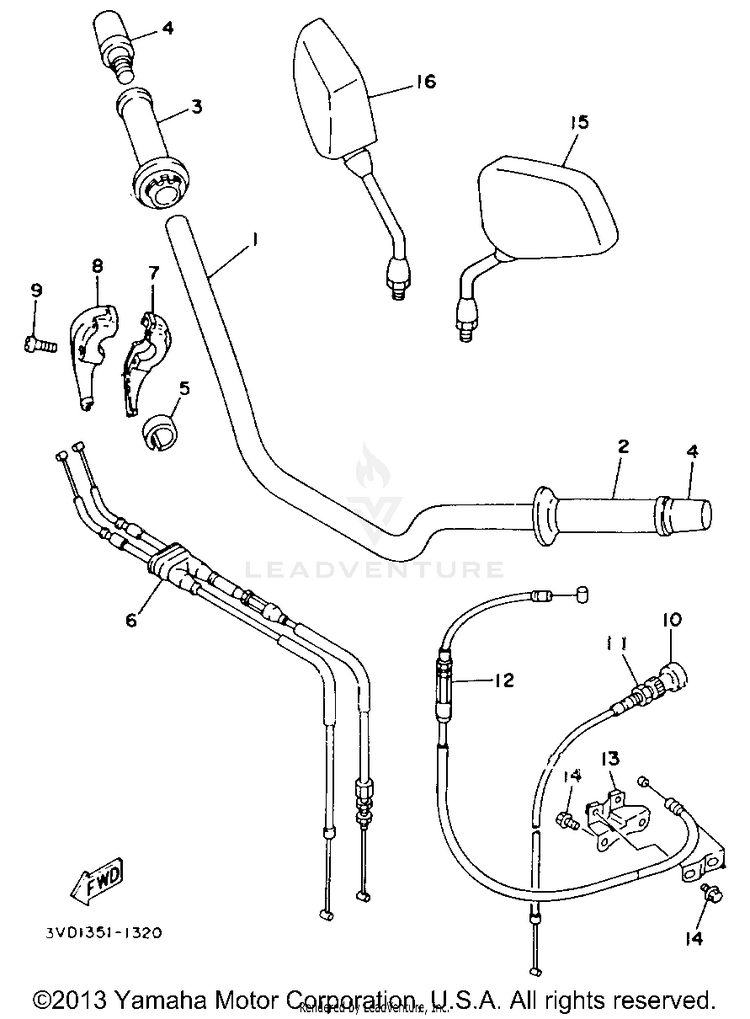

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13VD-26111-12-00

(replaces part #
3VD-26111-10-00)

HANDLEBAR$116.99$91.25Usually ships in 7-10 business days
21KG-26241-00-00GRIP (LEFT)$27.99$22.95Usually ships in 7-10 business days
33FH-26240-00-00GRIP ASSEMBLY$34.99$28.69Usually ships in 7-10 business days
451J-26246-01-00

(replaces part #
51J-26246-00-00)

END, GRIP$84.99$66.29Usually ships in 7-10 business days
590387-22660-00COLLAR$10.49$8.183 In-Stock
63VD-26302-00-00THROTTLE CABLE ASSEMBLY$99.13$77.32Usually ships in 7-10 business days
73XW-26281-01-00CAP, GRIP UPPER$34.99$28.69Usually ships in 7-10 business days
83XW-26282-01-00CAP, GRIP LOWER$34.99$28.69Usually ships in 7-10 business days
998507-05035-00

(replaces part #
98506-05035-00)

SCREW, PAN HEAD$9.49$7.407 In-Stock
103VD-26331-01-00

(replaces part #
3VD-26331-00-00)

CABLE,STARTER 1$41.99$34.43Usually ships in 7-10 business days
111VJ-26333-00-00NUT$8.49$7.64Usually ships in 7-10 business days
123VD-26335-01-00CABLE, CLUTCH$83.99$65.51Usually ships in 7-10 business days
133VD-26292-00-00STAY$35.99$29.51Usually ships in 7-10 business days
1495817-06012-00

(replaces part #
95816-06012-00)

BOLT, FLANGE$1.95$1.7710+ In-Stock
154TX-26280-00-00

(replaces part #
3VD-26280-01-00)

MIRROR ASY$130.99$102.17Usually ships in 7-10 business days
163VD-26290-01-00MIRROR ASSEMBLY (RIGHT)$140.99$111.50Usually ships in 7-10 business days
