1993 Yamaha TDM850 Swing Arm OEM Parts Diagram

Submodel TDM850 - TDM850EC - 1993

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SWING ARM

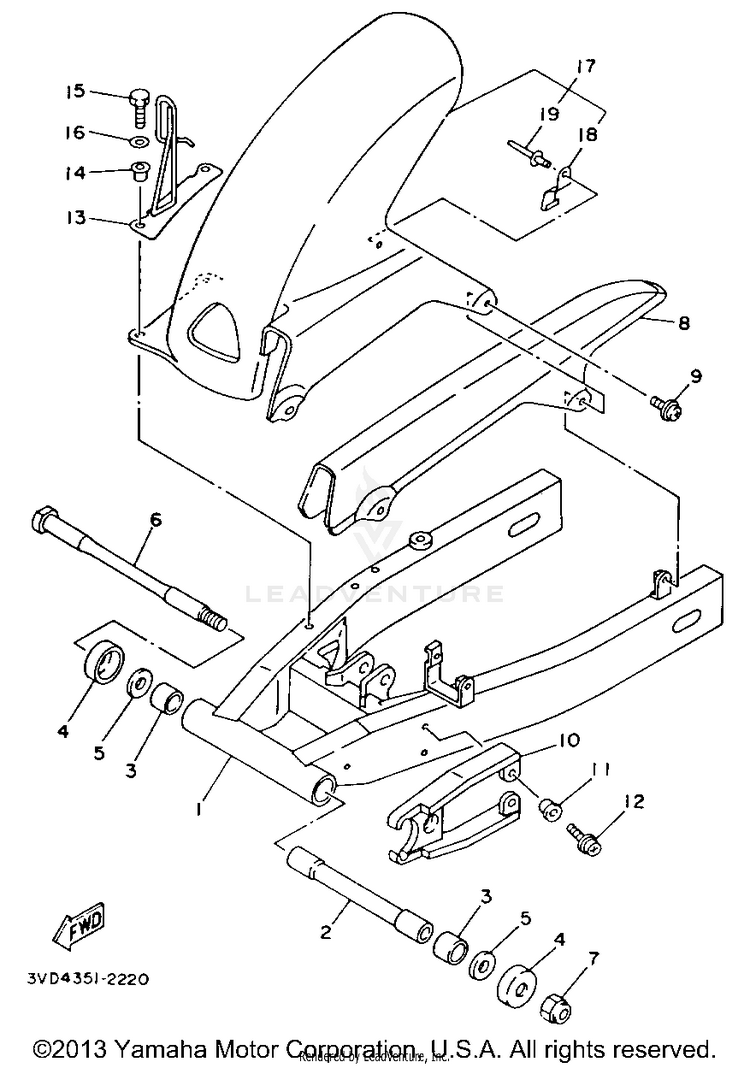

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14TX-22110-00-00

(replaces part #
3VD-22110-00-00)

REAR ARM$509.99$431.25Usually ships in 7-10 business days
233M-22184-00-00BUSH$77.99$60.83Usually ships in 7-10 business days
393320-32403-00BEARING$50.99$39.77Usually ships in 7-10 business days
44X7-22129-00-00COVER, THRUST 2$24.99$19.4910+ In-Stock
590201-161J3-00WASHER, PLATE$11.49$9.42Usually ships in 7-10 business days
646X-22141-00-00SHAFT, PIVOT$100.99$78.77Usually ships in 7-10 business days
790185-14070-00NUT, SELF-LOCKING$14.49$11.3010+ In-Stock
83VD-22311-00-00CASE, CHAIN$40.99$33.61Usually ships in 7-10 business days
990159-06060-00

(replaces part #
90159-06071-00)

SCREW, WITH WASHER$9.49$7.4010+ In-Stock
103VD-22151-00-00SEAL, GUARD$85.99$67.07Usually ships in 7-10 business days
1190387-06681-00COLLAR$10.49$8.1810+ In-Stock
1290159-06082-00

(replaces part #
90159-06084-00)

SCREW, WITH WASHER$10.49$8.1810+ In-Stock
133VD-25875-01-00HOLDER, BRKE HOSE 1$37.75$30.96Usually ships in 7-10 business days
1490387-06107-00

(replaces part #
90387-064J1-00)

COLLAR$9.49$7.409 In-Stock
1597017-06025-00

(replaces part #
97011-06025-00)

BOLT$4.55$3.9110+ In-Stock
1692907-06600-00

(replaces part #
92906-06600-00)

WASHER, PLATE$1.00$0.9910+ In-Stock
173VD-W2165-00-00COVER, REAR FENDERREAR TIRE$210.99$164.57Usually ships in 7-10 business days
183VD-2164F-00-00STAY 1$13.49$11.06Usually ships in 7-10 business days
1990267-40110-00RIVET, BLIND$2.10$1.89Usually ships in 7-10 business days
