1993 Yamaha TDM850 Shift Cam Fork OEM Parts Diagram

Submodel TDM850 - TDM850EC - 1993

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SHIFT CAM FORK

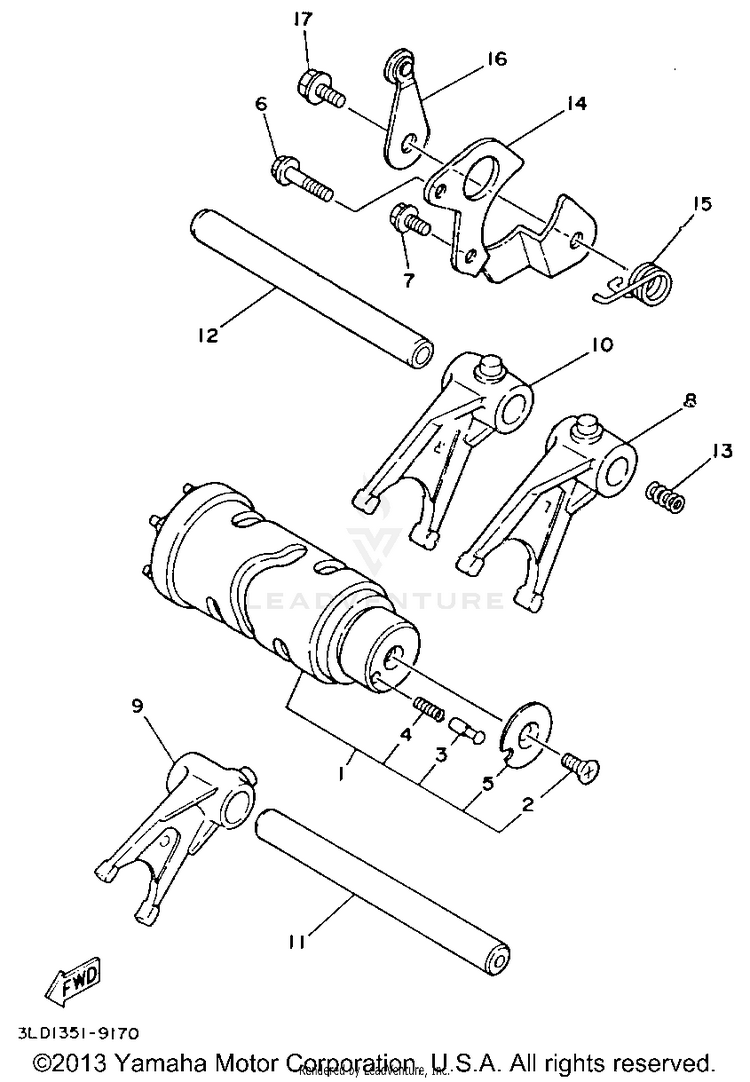

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14TX-18540-40-00

(replaces part #
3VD-18540-00-00)

SHIFT CAM ASY$185.99$145.07Usually ships in 7-10 business days
298707-05012-00

(replaces part #
98701-05012-00)

SCREW, COUNTERSUNK$1.85$1.8410+ In-Stock
34UN-18542-00-00

(replaces part #
278-18542-00-00)

POINT, NEUTRAL$9.49$7.4010+ In-Stock
490501-06022-00SPRING, COMPRESSION$9.49$7.4010+ In-Stock
5278-18566-00-00PLATE, SIDE 2$6.99$6.29Usually ships in 7-10 business days
695817-06025-00

(replaces part #
90105-06597-00)

BOLT, FLANGE$5.49$4.2810+ In-Stock
790105-06154-00

(replaces part #
90105-06397-00)

BOLT, FLANGE$6.49$5.064 In-Stock
83VD-18511-00-00

(replaces part #
3LD-18511-00-00)

FORK, SHIFT 1$61.99$48.35Usually ships in 7-10 business days
93VD-18512-00-00

(replaces part #
3LD-18512-00-00)

FORK, SHIFT 2$58.99$46.01Usually ships in 7-10 business days
103VD-18513-00-00

(replaces part #
3LD-18513-00-00)

FRK,SHFT 3$60.99$47.57Usually ships in 7-10 business days
113VD-18531-00-00BAR, SHIF FRK GDE 1$66.99$52.25Usually ships in 7-10 business days
123VD-18535-00-00BAR, SHIF FRK GDE 2$29.99$24.59Usually ships in 7-10 business days
1390501-071F1-00SPRING, COMPRESSION$0.99$0.89Usually ships in 7-10 business days
143LD-18536-00-00STOPPER, SHIFT BAR$17.49$14.34Usually ships in 7-10 business days
1590508-262A2-00SPRING, TORSION$2.87$2.58Usually ships in 7-10 business days
1636Y-18140-00-00STOPPER LEVER ASSY$25.99$21.31Usually ships in 7-10 business days
1790109-06036-00

(replaces part #
90109-063F8-00)

BOLT$10.49$8.187 In-Stock
