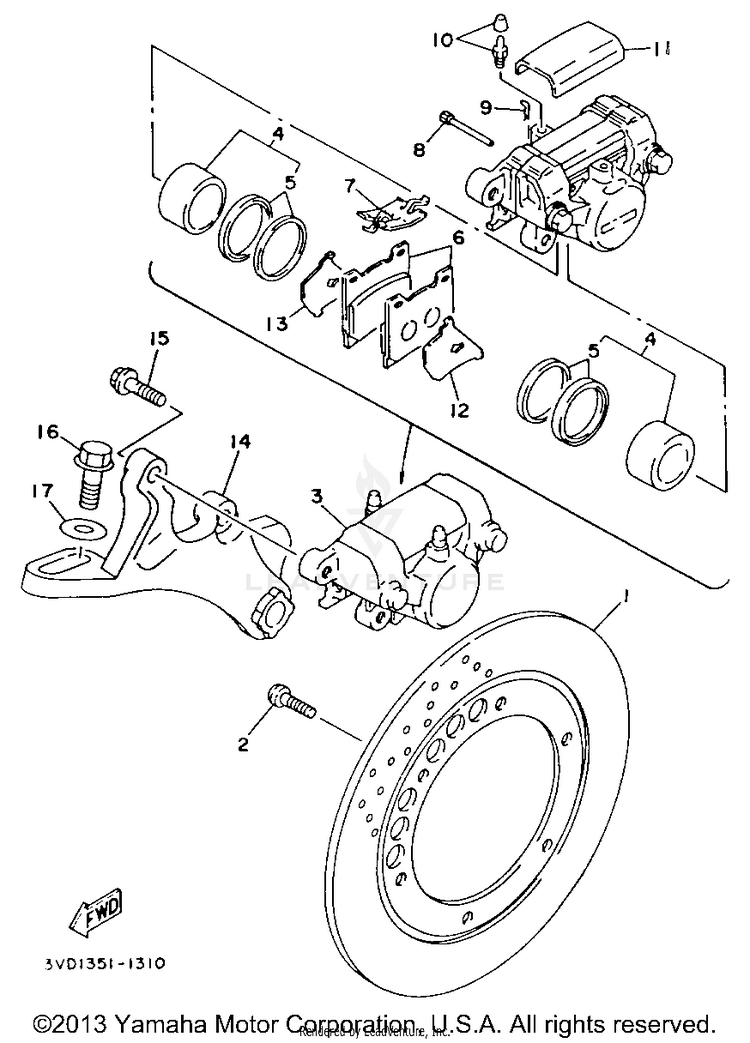

REAR BRAKE CALIPER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14HM-2582W-00-00

(replaces part #
4DU-2582W-00-00)

DISC, REAR BRAKE 2$204.99$162.43Usually ships in 7-10 business days
290111-08084-00

(replaces part #
90109-08718-00)

BOLT,HEX. SOCKET BUT$6.49$5.0610+ In-Stock
33HE-2580W-10-00

(replaces part #
3HE-2580W-00-00)

CALIPER ASSEMBLY, REAR 2$468.99$365.81Usually ships in 7-10 business days
431A-W0057-00-00PISTON ASSY, CALIPER$153.99$120.11Usually ships in 7-10 business days
531A-W0047-00-00CALIPER SEAL KIT$62.99$49.135 In-Stock
61FK-W0046-01-00BRAKE PAD KIT 2$60.99$47.574 In-Stock
71WG-25919-00-00SUPPORT, PAD$11.99$9.83Usually ships in 7-10 business days
83HE-25924-00-00PIN, PAD$22.99$17.933 In-Stock
93GM-25925-00-00

(replaces part #
3HE-25925-00-00)

CLIP$12.99$10.136 In-Stock
101J3-W0048-00-00BLEED SCREW KIT$33.99$27.87Usually ships in 7-10 business days
1151J-25836-01-00

(replaces part #
51J-25836-00-00)

COVER, DUST$17.49$14.34Usually ships in 7-10 business days
121FK-25827-01-00

(replaces part #
1FK-25827-00-00)

SHIM, CALIPER$17.99$14.75Usually ships in 7-10 business days
131FK-25828-01-00

(replaces part #
1FK-25828-00-00)

SHIM, CALIPER$16.49$13.52Usually ships in 7-10 business days
143VD-25819-00-00BRACKET, CALIPER$228.45$178.19Usually ships in 7-10 business days
1590105-10638-00BOLT, WASHER BASED$8.49$6.6210+ In-Stock
1695817-10030-00

(replaces part #
95811-10030-00)

BOLT, FLANGE$9.49$7.408 In-Stock
1790201-105R9-00

(replaces part #
90201-10437-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
