CRANKCASE

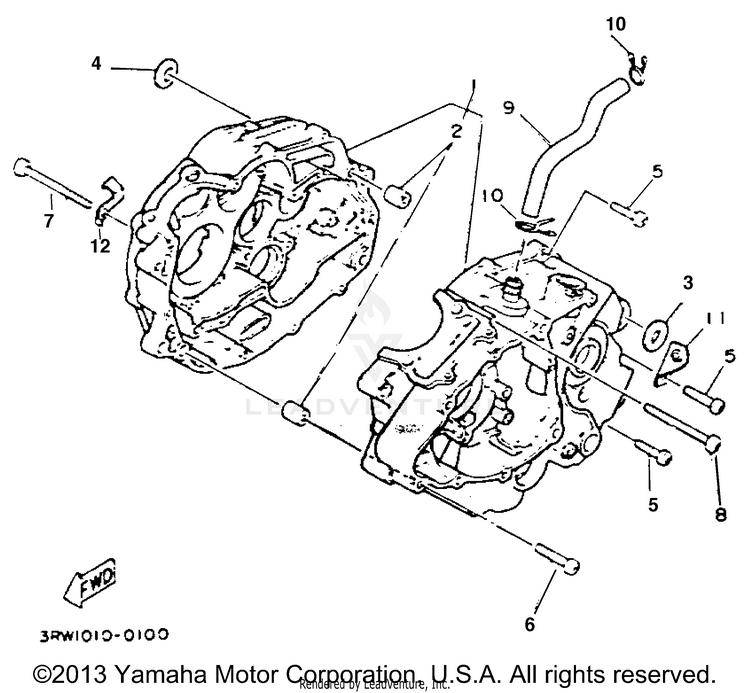

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
199999-03013-00

(replaces part #
3RW-15100-00-00)

CRANKCASE ASY$634.99$495.29Usually ships in 7-10 business days
299530-12016-00

(replaces part #
99510-12016-00)

PIN, DOWEL$4.89$4.2110+ In-Stock
390387-125F1-00COLLAR$4.60$4.14Usually ships in 7-10 business days
490387-125F1-00COLLAR$4.60$4.14Usually ships in 7-10 business days
597885-06030-00

(replaces part #
98580-06030-00)

SCREW, PAN HEAD$5.49$4.3810+ In-Stock
698507-06040-00

(replaces part #
98506-06040-00)

SCREW, PAN HEAD$3.22$2.779 In-Stock
798507-06090-00

(replaces part #
98506-06090-00)

SCREW, PAN HEAD$10.49$8.182 In-Stock
898507-06085-00

(replaces part #
98506-06085-00)

SCREW, PAN HEAD$6.99$6.29Usually ships in 7-10 business days
91KH-11166-01-00PIPE, BREATHER 1$38.99$31.971 In-Stock
1090467-14015-00CLIP$9.49$7.407 In-Stock
1190465-08200-00CLAMP$4.70$4.23Usually ships in 7-10 business days
1290462-08193-00CLAMP$7.12$6.41Usually ships in 7-10 business days
