1993 Yamaha XT225 Serow Fender OEM Parts Diagram

Submodel SEROW - XT225EC - 1993

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FENDER

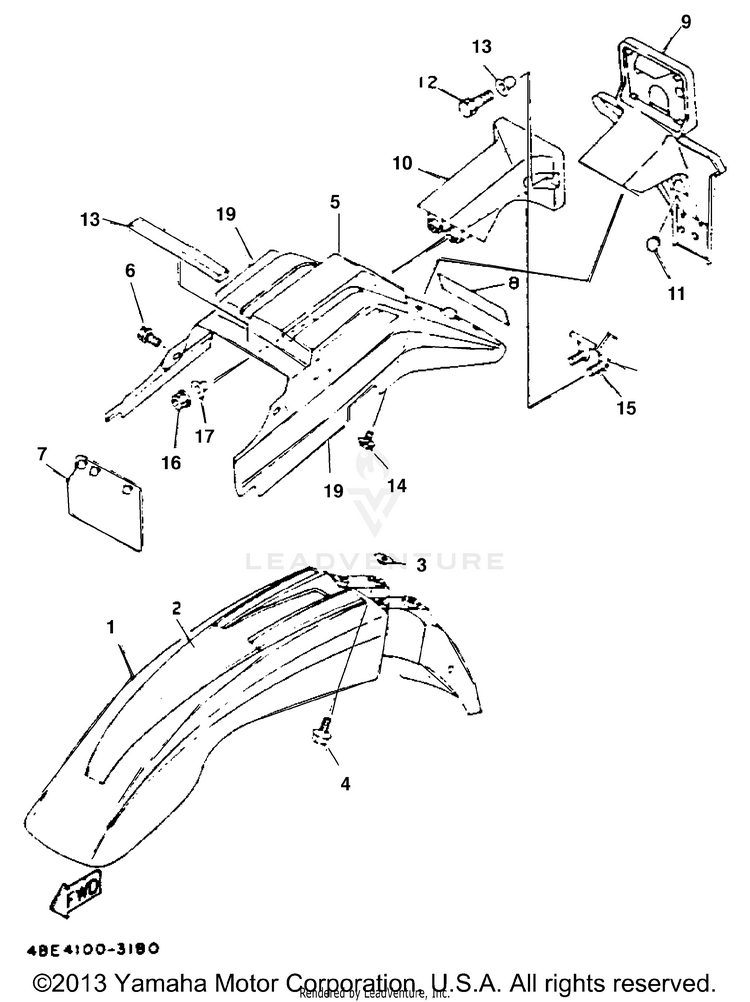

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14BE-21511-00-00FENDER, FRONT$54.99$48.56Usually ships in 7-10 business days
23RW-21570-50-00GRPHC SET, FRT FNDRFRONT FENDER$32.99$27.05Not Shipping
390387-06681-00COLLAR$10.49$8.1810+ In-Stock
490119-06063-00BOLT, WITH WASHER$10.49$8.1810+ In-Stock
599999-03284-00

(replaces part #
3RW-21611-10-00)

FENDER,REAR$85.99$67.17Not Shipping
690119-06152-00

(replaces part #
90119-06056-00)

BOLT, WITH WASHER$3.55$3.0510+ In-Stock
734X-21691-00-00FLAP$21.99$18.03Usually ships in 7-10 business days
83WF-2153E-11-00

(replaces part #
3LT-24786-11-00)

EMBLEM, YAMAHA$14.49$11.302 In-Stock
94BE-84551-00-00BRACKET, LICENSE$112.99$88.131 In-Stock
104BE-84527-00-00DAMPER$47.99$39.35Not Shipping
1142U-21639-00-00DAMPER 2$30.99$25.41Usually ships in 7-10 business days
1297017-06025-00

(replaces part #
97011-06025-00)

BOLT$4.55$3.9110+ In-Stock
1390387-07391-00COLLAR$10.49$8.1810+ In-Stock
1495817-06016-00

(replaces part #
95811-06016-00)

BOLT, FLANGE$1.95$1.6810+ In-Stock
154BE-21637-00-00CLAMP, WIRE$26.99$22.13Usually ships in 7-10 business days
1695380-06600-00NUT, HEXAGON$4.90$4.605 In-Stock
1790387-06681-00COLLAR$10.49$8.1810+ In-Stock
183RW-21639-00-00DAMPER 2$8.99$8.09Usually ships in 7-10 business days
193RW-2165A-10-00GRAPHIC SET REAR F$12.49$10.24Usually ships in 7-10 business days
