1993 Yamaha XT225 Serow Exhaust OEM Parts Diagram

Submodel SEROW - XT225EC - 1993

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

EXHAUST

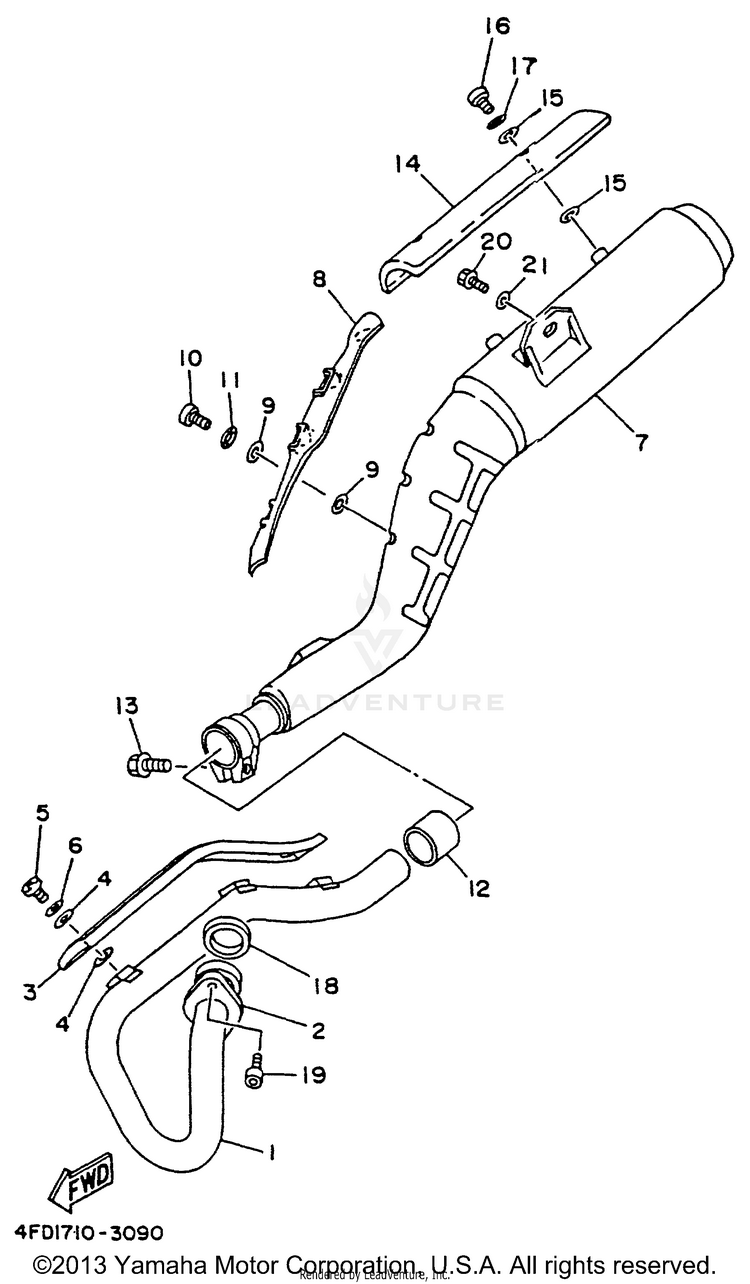

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13RW-14611-00-00PIPE, EXHAUST 1$254.99$198.89Not Shipping
25H0-14612-01-00

(replaces part #
5H0-14612-00-00)

NUT, RING$17.99$14.033 In-Stock
33RW-14628-00-00PROTECTOR, EXHAUST PIPE$91.99$71.75Usually ships in 7-10 business days
44BD-14766-00-00WASHER, PROTECTOR$5.99$4.6710+ In-Stock
598980-06010-00SCREW, BIND$10.49$8.6310+ In-Stock
690206-06090-00WASHER, WAVE$9.49$7.4010+ In-Stock
74BE-14711-00-00MUFFLER 1$306.45$249.41Not Shipping
81KH-14728-01-00PROTECTOR, MUFFLER 2$38.99$31.97Usually ships in 7-10 business days
94BD-14766-00-00WASHER, PROTECTOR$5.99$4.6710+ In-Stock
1098907-06010-00

(replaces part #
98906-06010-00)

SCREW, BIND$1.80$1.558 In-Stock
1190206-06090-00WASHER, WAVE$9.49$7.4010+ In-Stock
123YF-14714-00-00GASKET, MUFFLER$39.99$31.1910+ In-Stock
1399999-01790-00BOLT, FLANGE (95026-08025-00)$8.49$7.64Usually ships in 7-10 business days
143TB-14728-00-00PROTECTOR, MUFFLER 2$130.99$102.17Usually ships in 7-10 business days
154BD-14766-00-00WASHER, PROTECTOR$5.99$4.6710+ In-Stock
1698980-06010-00SCREW, BIND$10.49$8.6310+ In-Stock
1790206-06090-00WASHER, WAVE$9.49$7.4010+ In-Stock
184BE-14613-00-00GASKET, EXHAUST PIPE$10.99$8.5710+ In-Stock
1991314-06020-00

(replaces part #
91311-06020-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.5710+ In-Stock
2090109-085E2-00BOLT$8.49$6.6210+ In-Stock
2190201-08326-00

(replaces part #
90201-081H4-00)

WASHER, PLATE$9.49$7.4010+ In-Stock
