1994 Yamaha YZ80 Exhaust OEM Parts Diagram

Submodel YZ80F1 - 1994

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

EXHAUST

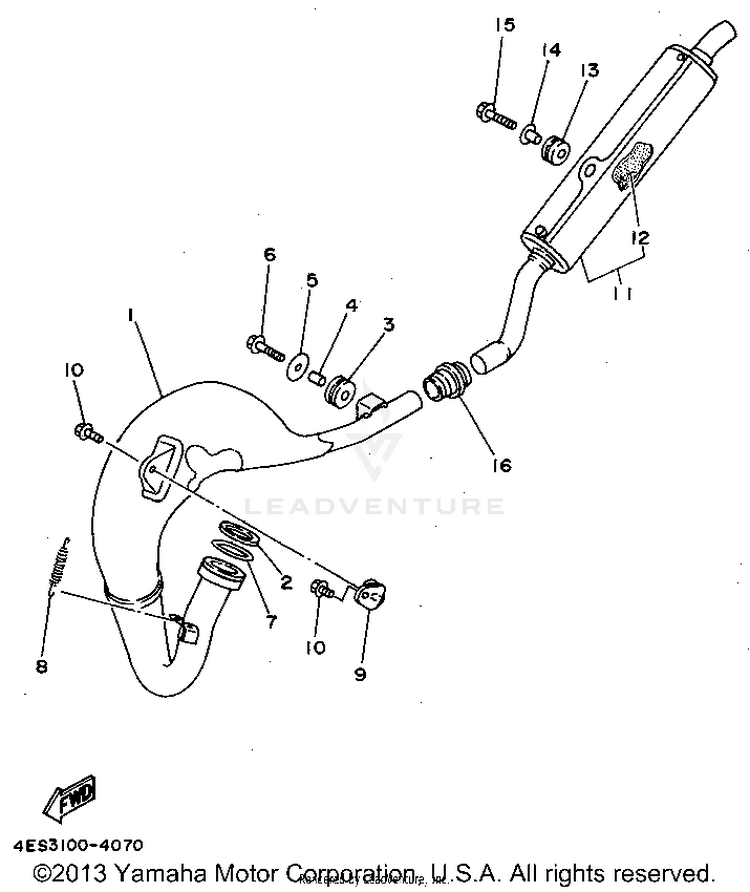

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14ES-14610-00-00EXHAUST PIPE ASSEMBLY 1$369.99$288.59Usually ships in 7-10 business days
290201-34683-00WASHER, PLATE (90201-33299-00)$11.49$8.9610+ In-Stock
390480-18411-00GROMMET$12.49$9.7410+ In-Stock
490387-105L0-00COLLAR$11.49$8.966 In-Stock
590201-06086-00

(replaces part #
90201-060A3-00)

WASHER, PLATE$8.49$7.0110+ In-Stock
695024-06025-00

(replaces part #
95023-06025-00)

BOLT, FLANGE (SMALL HEAD)-$2.5510+ In-Stock
793210-371A9-00O-RING$8.49$6.623 In-Stock
890507-20030-00SPRING, TENSION$16.49$12.8610+ In-Stock
9565-14771-01-00

(replaces part #
565-14771-00-00)

STAY, MUFFLER 1$19.99$15.5910+ In-Stock
1095024-06012-00

(replaces part #
95023-06012-00)

BOLT, FLANGE (SMALL HEAD)$4.75$4.0810+ In-Stock
114ES-14753-30-00

(replaces part #
4ES-14753-00-00)

SILENCER, EXHAUST$313.99$244.91Usually ships in 7-10 business days
124ES-1469A-00-00FIBER$106.99$83.45Usually ships in 7-10 business days
1390480-16561-00GROMMET$18.49$14.4210+ In-Stock
1490387-063G3-00COLLAR$9.49$7.4010+ In-Stock
1595024-06025-00

(replaces part #
95023-06025-00)

BOLT, FLANGE (SMALL HEAD)-$2.5510+ In-Stock
1617W-14615-00-00JOINT, EXHAUST 1$47.99$37.436 In-Stock
