1994 Yamaha YZ80 Handle Switch - Lever OEM Parts Diagram

Submodel YZ80F1 - 1994

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HANDLE SWITCH - LEVER

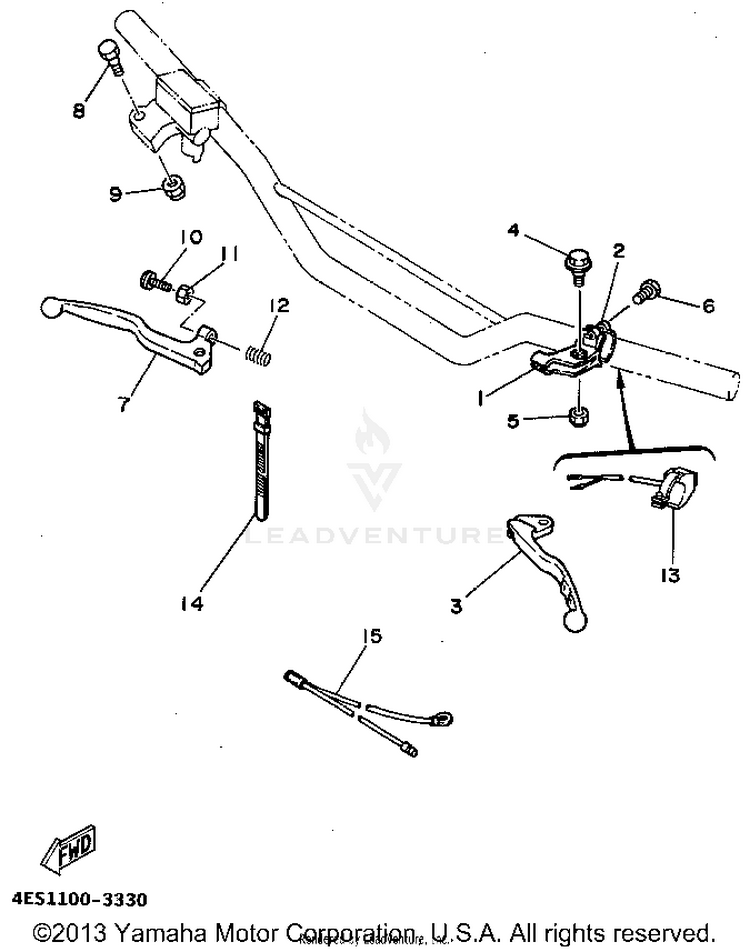

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
138V-82911-00-00HOLDER, LEVER 1$42.99$33.533 In-Stock
238V-82913-00-00HOLDER, LEVER LOWER 1$25.99$20.279 In-Stock
323X-83912-02-00

(replaces part #
23X-83912-00-00)

LEVER 1$30.99$24.1710+ In-Stock
490109-06799-00BOLT$5.49$4.288 In-Stock
595617-06100-00

(replaces part #
95616-06100-00)

NUT, U$2.90$2.4910+ In-Stock
697017-05016-00

(replaces part #
97006-05016-00)

BOLT$3.55$3.0510+ In-Stock
755Y-83922-02-00

(replaces part #
55Y-83922-00-00)

LEVER 2$41.99$32.756 In-Stock
890109-06577-00BOLT$6.49$5.0610+ In-Stock
995617-06100-00

(replaces part #
95616-06100-00)

NUT, U$2.90$2.4910+ In-Stock
1090143-06024-00SCREW, HEXAGON$12.49$9.744 In-Stock
1190170-06010-00NUT$9.49$7.404 In-Stock
1290501-061G2-00SPRING, COMPRESSION$3.60$3.104 In-Stock
1323X-83976-01-00

(replaces part #
23X-83976-00-00)

SWITCH, HANDLE 1$41.99$32.758 In-Stock
14437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
155X1-82519-01-00WIRE, EARTH LEAD$16.99$13.93Not Shipping
