1994 Yamaha YZ80 Front Wheel OEM Parts Diagram

Submodel YZ80F1 - 1994

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

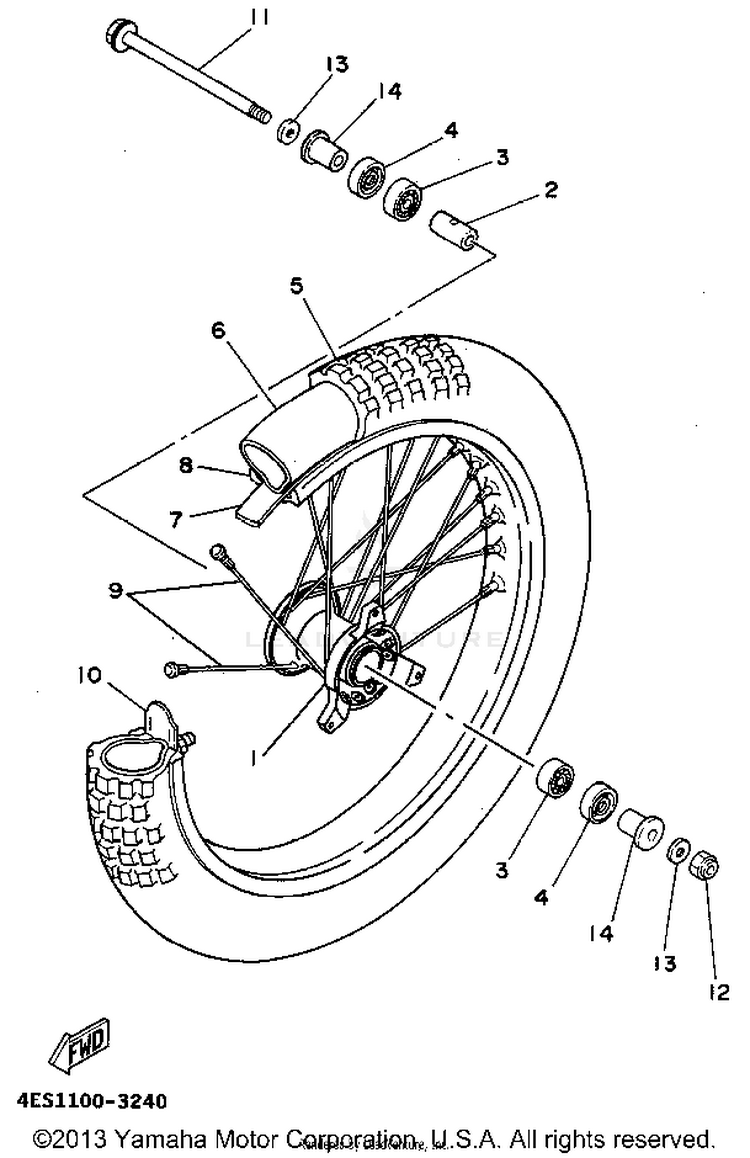

FRONT WHEEL

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14ES-25111-01-00

(replaces part #
4ES-25111-00-00)

HUB, FRONT$190.99$148.97Usually ships in 7-10 business days
290387-124H0-00COLLAR$18.49$14.425 In-Stock
393306-20117-00BEARING$37.99$29.6310+ In-Stock
493106-20031-00OIL SEAL$16.49$12.8610+ In-Stock
594170-171K8-00

(replaces part #
94107-177Y5-00)

TIRE (70/100-17 40M K490) (9410 | UR DUNLOP$51.99$43.71Usually ships in 7-10 business days
694207-17284-00TUBE (70/100-17M/C TR4) | UR DUNLOP$23.99$19.67Usually ships in 7-10 business days
794307-17166-00BAND, RIM (22-17) | UR DUNLOP$8.49$6.623 In-Stock
894414-17530-00RIM (1.40-17) | UR$264.99$218.75Usually ships in 7-10 business days
94ES-25104-20-00SPOKE SET, FRONT | UR$78.99$61.612 In-Stock
101T1-25194-00-00SPACER, BEAD$68.99$53.81Usually ships in 7-10 business days
114ES-25181-00-00AXLE, WHEEL$52.99$41.337 In-Stock
1290185-12134-00

(replaces part #
90185-12046-00)

NUT, SELF-LOCKING$13.49$10.524 In-Stock
1390201-12362-00WASHER, PLATE$10.49$8.1810+ In-Stock
144ES-25183-10-00COLLAR, WHEEL$36.99$28.854 In-Stock
