1994 Yamaha YZ80 Radiator - Hose OEM Parts Diagram

Submodel YZ80F1 - 1994

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

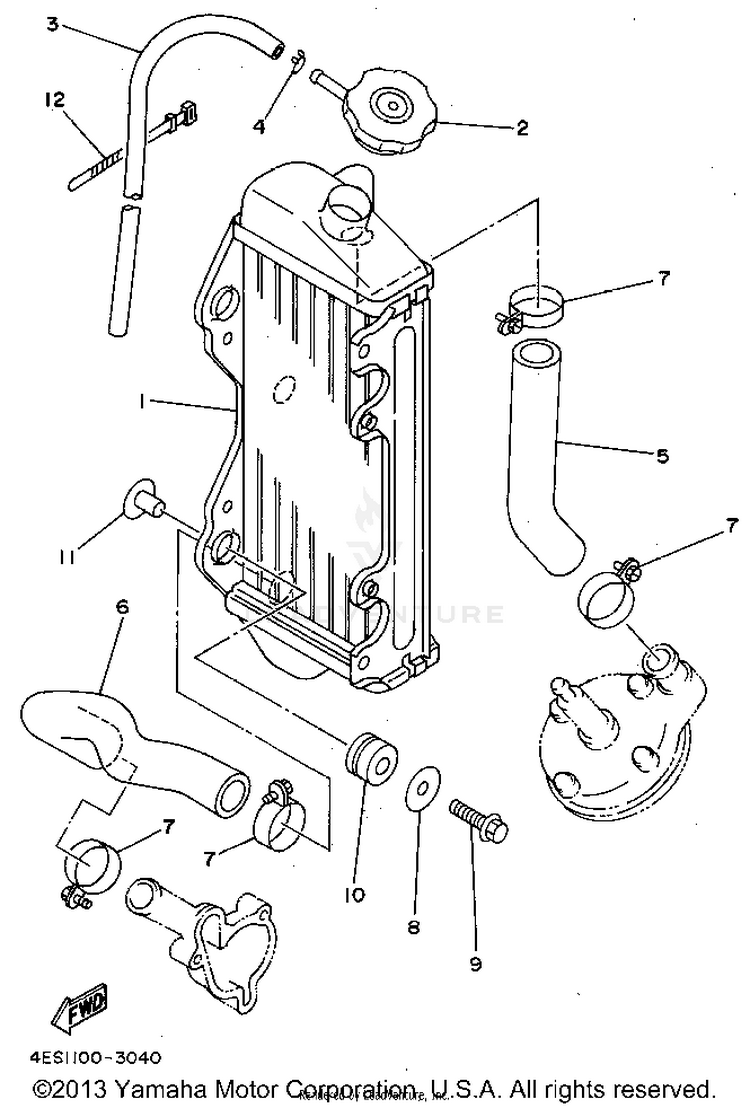

RADIATOR - HOSE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14ES-12461-10-00

(replaces part #
4ES-12461-00-00)

RADIATOR ASSY$373.99$291.71Not Shipping
24FL-12462-00-00

(replaces part #
22W-12462-00-00)

CAP, RADIATOR$68.99$53.8110+ In-Stock
322W-12463-00-00PIPE, BREATHER$22.99$17.933 In-Stock
490467-08004-00CLIP$9.49$7.402 In-Stock
54ES-12481-00-00PIPE 1$32.99$27.05Not Shipping
64ES-12482-00-00PIPE 2$27.99$22.95Not Shipping
790450-28001-00

(replaces part #
90450-28014-00)

HOSE CLAMP ASSY$16.49$12.8610+ In-Stock
890201-06380-00

(replaces part #
90201-06067-00)

WASHER, PLATE-$0.7110+ In-Stock
995024-06030-00

(replaces part #
95023-06030-00)

BOLT, FLANGE (SMALL HEAD)$9.49$7.407 In-Stock
1090480-15528-00GROMMET$9.49$7.4010+ In-Stock
1190387-0614M-00

(replaces part #
90387-0700G-00)

COLLAR$12.49$9.7410+ In-Stock
12437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
