2000 Yamaha BEAR TRACKER Fuel Tank OEM Parts Diagram

Submodel BEAR TRACKER 2WD - YFM250XMC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FUEL TANK

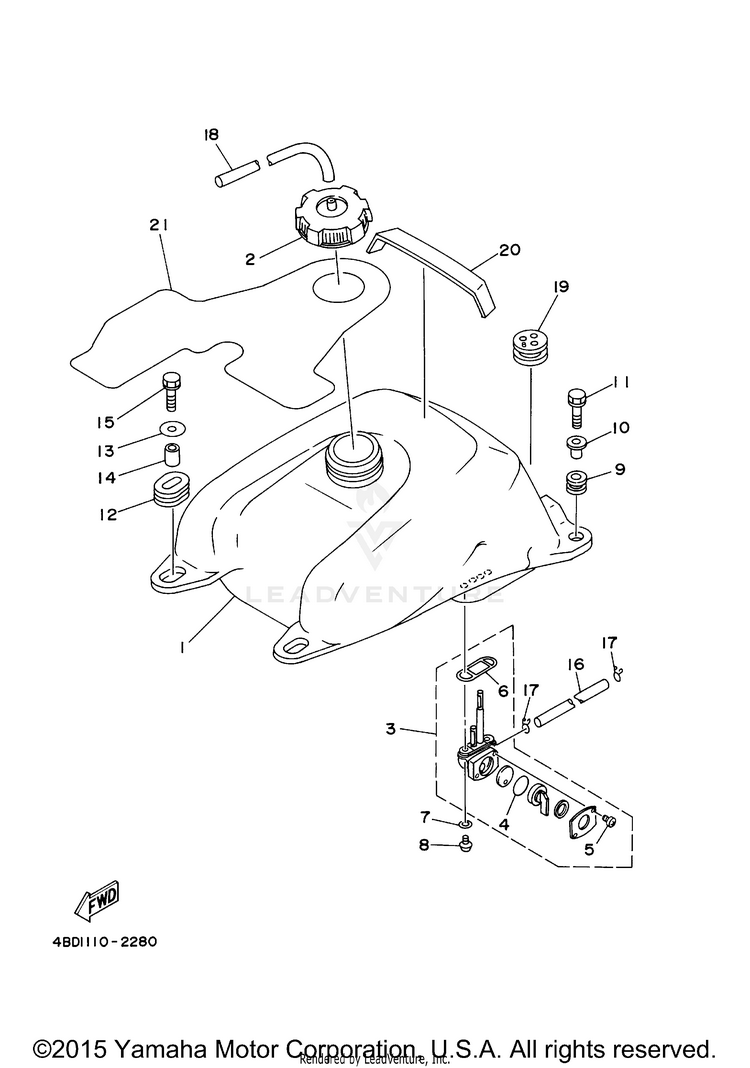

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14XE-F4110-10-00

(replaces part #
4XE-F4110-00-00)

FUEL TANK COMP.$279.99$218.39Usually ships in 7-10 business days
25MV-24610-00-00

(replaces part #
1UY-24610-00-00)

CAP ASSY$63.99$49.916 In-Stock
33JN-24500-10-00

(replaces part #
3JN-24500-00-00)

FUEL COCK ASSY 1$48.99$38.2110+ In-Stock
43AJ-24534-01-00

(replaces part #
3AJ-24534-00-00)

SEAL, COCK$11.99$9.3510+ In-Stock
598580-03008-00

(replaces part #
97801-03008-00)

SCREW, PAN HEAD$3.85$3.3110+ In-Stock
64X8-24512-00-00O-RING$9.49$7.4010+ In-Stock
790202-05187-00

(replaces part #
90202-05193-00)

WASHER, PLATE$1.70$1.4610+ In-Stock
890149-06011-00SCREW$2.05$1.7610+ In-Stock
990480-18290-00GROMMET$9.49$8.0510+ In-Stock
1090387-066H4-00COLLAR$9.49$7.4010+ In-Stock
1190119-06883-00

(replaces part #
90119-06831-00)

BOLT, WITH WASHER-$2.236 In-Stock
1290480-01400-00GROMMET$14.49$11.3010+ In-Stock
1390201-06090-00

(replaces part #
90201-068P9-00)

WASHER, PLATE$6.49$5.0610+ In-Stock
1490387-07598-00COLLAR$6.49$5.0610+ In-Stock
1590119-06883-00

(replaces part #
90119-06831-00)

BOLT, WITH WASHER-$2.236 In-Stock
164XE-24311-00-00PIPE, FUEL 1$21.99$17.152 In-Stock
1790467-100A1-00

(replaces part #
90467-10008-00)

CLIP$8.49$6.6210+ In-Stock
1890445-083J5-00

(replaces part #
90445-084J2-00)

HOSE (L460)$11.49$8.9610+ In-Stock
194BD-24339-00-00GROMMET$24.99$20.49Usually ships in 7-10 business days
204XE-F4181-00-00DAMPER, LOCATING 1$3.40$3.06Not Shipping
214XE-F414H-00-00DAMPER, PLATE 1$26.99$22.13Not Shipping
